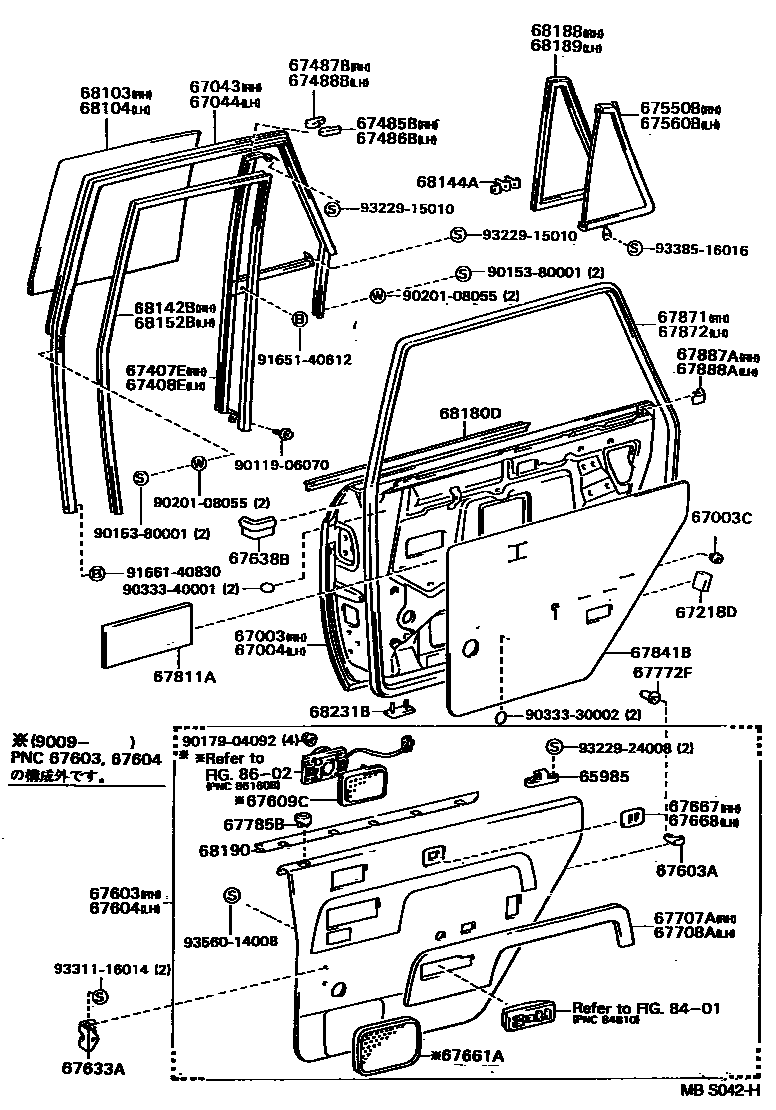

65985HOLDER, CURTAIN RAIL

main65985-91404×2i199212-199303

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-40010i199212-199701

main67003-40020i199212-199701

main67003-91425i198709-198905

main67003-91426i199009-199212

main67003-91428i198905-199212

67003CCUSHION, REAR DOOR PANEL

main90541-09033i198709-199701

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-40010i199212-199701

main67004-40020i199212-199701

main67004-91426i198709-198905

main67004-91427i199009-199212

main67004-91429i198905-199212

67043FRAME SUB-ASSY, REAR DOOR WINDOW, RH

main67043-40030i199212-199701

main67043-40040i199212-199701

main67043-40070i199212-199701

main67043-40080i199212-199701

main67043-91410i198709-199009

main67043-91411i198709-199009

main67043-91412i199009-199212

main67043-91413i199009-199212

67044FRAME SUB-ASSY, REAR DOOR WINDOW, LH

main67044-40030i199212-199701

main67044-40050i199212-199701

main67044-40070i199212-199701

main67044-40080i199212-199701

main67044-91410i198709-199009

main67044-91411i198709-199009

main67044-91412i199009-199212

main67044-91413i199009-199212

67218DSTOP, QUARTER WINDOW, LOWER REAR

main67218-91D01×2i198709-199701

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-91402i198709-199701

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-91401i198709-199701

67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH

main67485-91402i198709-199701

67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH

main67486-91403i198709-199701

67487BSEAL, REAR DOOR DIVISION BAR, RH

main67487-91402i198709-199701

67488BSEAL, REAR DOOR DIVISION BAR, LH

main67488-91401i198709-199701

67550BWINDOW ASSY, REAR DOOR VENTILATING, RH

main67550-91405i198709-199701

main67550-91407i198709-198905

main67550-91408i199009-199701

main67550-91409i198910-199009

main67550-91410i198905-199701

67560BWINDOW ASSY, REAR DOOR VENTILATING, LH

main67560-91406i198709-198905

main67560-91407i198709-198905

main67560-91408i198910-199009

main67560-91409i198910-199009

main67560-91410i198905-199701

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-40010-03i199009-199212

SHADOW GRAY,TRIM1#

main67630-40010-04i199009-199212

DARK BLUE,TRIM8#

main67630-40020-02i199009-199212

MAROON,TRIM3#

main67630-40020-03i199009-199212

SHADOW GRAY,TRIM1#

main67630-40020-04i199009-199212

DARK BLUE,TRIM8#

main67630-40030-01i199009-199212

main67630-40030-02i199009-199212

main67630-40030-03i199009-199212

main67630-40040-03i199009-199212

main67630-40040-04i199009-199212

main67630-40050-02i199009-199212

main67630-40050-03i199009-199212

main67630-40050-04i199009-199212

main67630-40060-01i199009-199212

main67630-40060-02i199009-199212

main67630-40060-03i199009-199212

main67630-40070-02i199009-199212

main67630-40070-03i199009-199212

main67630-40070-04i199009-199212

main67630-40080-01i199009-199212

main67630-40080-02i199009-199212

main67630-40080-03i199009-199212

main67630-40090-01i199009-199212

main67630-40090-02i199009-199212

main67630-40090-03i199009-199212

main67630-40100-02i199009-199212

main67630-40100-03i199009-199212

main67630-40100-04i199009-199212

main67630-40110-02i199009-199212

main67630-40110-03i199009-199212

main67630-40110-04i199009-199212

main67630-40120-01i199009-199212

main67630-40120-02i199009-199212

main67630-40120-03i199009-199212

main67630-40130-01i199009-199212

main67630-40130-02i199009-199212

main67630-40130-03i199009-199212

main67630-40140-02i199009-199212

main67630-40140-03i199009-199212

main67630-40140-04i199009-199212

main67630-40150-01i199009-199212

main67630-40150-02i199009-199212

main67630-40150-03i199009-199212

main67630-40160-01i199009-199212

main67630-40160-02i199009-199212

main67630-40160-03i199009-199212

main67630-40170-B0i199212-199701

SHADOW GRAY,TRIM1#

main67630-40170-J0i199212-199701

DARK BLUE,TRIM8#

main67630-40190-B0i199212-199701

SHADOW GRAY,TRIM1#

main67630-40190-E0i199212-199701

SABLE,TRIM4#

main67630-40190-J0i199212-199701

DARK BLUE,TRIM8#

main67630-40200-B0i199212-199701

main67630-40200-E0i199212-199701

main67630-40210-B0i199212-199701

main67630-40210-J1i199212-199701

main67630-40220-B0i199212-199701

main67630-40220-E0i199212-199701

main67630-40220-J0i199212-199701

main67630-40230-B0i199212-199701

main67630-40230-E0i199212-199701

main67630-40240-B0i199212-199701

SHADOW GRAY,TRIM1#

main67630-40240-E0i199212-199701

SABLE,TRIM4#

main67630-40240-J0i199212-199701

DARK BLUE,TRIM8#

main67630-40250-B0i199212-199701

main67630-40250-E0i199212-199701

main67630-40260-B0i199212-199701

main67630-40260-E0i199212-199701

main67630-40270-B0i199212-199701

main67630-40270-E0i199212-199701

main67630-40280-B0i199212-199701

main67630-40280-E0i199212-199701

main67630-40280-J0i199212-199701

main67630-40290-B0i199212-199701

main67630-40290-E0i199212-199701

main67630-40300-B0i199212-199701

main67630-40300-E0i199212-199701

main67630-40310-B0i199212-199701

main67630-40310-E0i199212-199701

main67630-91439-02i198709-198905

main67630-91439-03i198709-198905

main67630-91439-04i198709-198905

main67630-91440-01i198709-198905

main67630-91440-02i198709-198905

main67630-91441-03i198709-198905

SHADOW GRAY,TRIM1#

main67630-91441-04i198709-198905

DARK BLUE,TRIM8#

main67630-91442-02i198709-198905

MAROON,TRIM3#

main67630-91442-03i198709-198905

SHADOW GRAY,TRIM1#

main67630-91442-04i198709-198905

DARK BLUE,TRIM8#

main67630-91443-01i198709-198905

main67630-91443-02i198709-198905

main67630-91444-03i198709-198905

main67630-91444-04i198709-198905

main67630-91446-01i198910-199009

main67630-91446-02i198910-199009

main67630-91446-03i198910-199009

main67630-91448-02i198910-199009

main67630-91448-03i198910-199009

main67630-91448-04i198910-199009

main67630-91451-02i198910-199009

main67630-91451-03i198910-199009

main67630-91451-04i198910-199009

main67630-91452-02i198910-199009

main67630-91452-03i198910-199009

main67630-91452-04i198910-199009

main67630-91453-01i198910-199009

main67630-91453-02i198910-199009

main67630-91453-03i198910-199009

main67630-91454-01i198910-199009

main67630-91454-02i198910-199009

main67630-91454-03i198910-199009

main67630-91460-03i198905-199009

SHADOW GRAY,TRIM1#

main67630-91460-04i198905-199009

DARK BLUE,TRIM8#

main67630-91461-02i198905-199009

main67630-91461-03i198905-199009

main67630-91461-04i198905-199009

main67630-91462-01i198905-199009

main67630-91462-02i198905-199009

main67630-91462-03i198905-199009

main67630-91463-03i198905-199009

main67630-91463-04i198905-199009

main67630-91464-02i198905-199009

MAROON,TRIM3#

main67630-91464-03i198905-199009

SHADOW GRAY,TRIM1#

main67630-91464-04i198905-199009

DARK BLUE,TRIM8#

main67630-91465-01i198905-199009

main67630-91465-02i198905-199009

main67630-91465-03i198905-199009

main67630-91467-01i198910-199009

main67630-91467-02i198910-199009

main67630-91467-03i198910-199009

main67630-91470-02i198910-199009

main67630-91470-03i198910-199009

main67630-91470-04i198910-199009

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-20022×7i199212-199701

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-40010-03i199009-199212

SHADOW GRAY,TRIM1#

main67640-40010-04i199009-199212

DARK BLUE,TRIM8#

main67640-40020-02i199009-199212

MAROON,TRIM3#

main67640-40020-03i199009-199212

SHADOW GRAY,TRIM1#

main67640-40020-04i199009-199212

DARK BLUE,TRIM8#

main67640-40030-01i199009-199212

main67640-40030-02i199009-199212

main67640-40030-03i199009-199212

main67640-40040-03i199009-199212

main67640-40040-04i199009-199212

main67640-40050-02i199009-199212

main67640-40050-03i199009-199212

main67640-40050-04i199009-199212

main67640-40060-01i199009-199212

main67640-40060-02i199009-199212

main67640-40060-03i199009-199212

main67640-40070-02i199009-199212

main67640-40070-03i199009-199212

main67640-40070-04i199009-199212

main67640-40080-01i199009-199212

main67640-40080-02i199009-199212

main67640-40080-03i199009-199212

main67640-40090-01i199009-199212

main67640-40090-02i199009-199212

main67640-40090-03i199009-199212

main67640-40100-02i199009-199212

main67640-40100-03i199009-199212

main67640-40100-04i199009-199212

main67640-40110-02i199009-199212

main67640-40110-03i199009-199212

main67640-40110-04i199009-199212

main67640-40120-01i199009-199212

main67640-40120-02i199009-199212

main67640-40120-03i199009-199212

main67640-40130-01i199009-199212

main67640-40130-02i199009-199212

main67640-40130-03i199009-199212

main67640-40140-02i199009-199212

main67640-40140-03i199009-199212

main67640-40140-04i199009-199212

main67640-40150-01i199009-199212

main67640-40150-02i199009-199212

main67640-40150-03i199009-199212

main67640-40160-01i199009-199212

main67640-40160-02i199009-199212

main67640-40160-03i199009-199212

main67640-40170-B0i199212-199701

SHADOW GRAY,TRIM1#

main67640-40170-J0i199212-199701

DARK BLUE,TRIM8#

main67640-40190-B0i199212-199701

SHADOW GRAY,TRIM1#

main67640-40190-E0i199212-199701

SABLE,TRIM4#

main67640-40190-J0i199212-199701

DARK BLUE,TRIM8#

main67640-40200-B0i199212-199701

main67640-40200-E0i199212-199701

main67640-40210-B0i199212-199701

main67640-40210-J0i199212-199701

main67640-40220-B0i199212-199701

main67640-40220-E0i199212-199701

main67640-40220-J0i199212-199701

main67640-40230-B0i199212-199701

main67640-40230-E0i199212-199701

main67640-40240-B0i199212-199701

main67640-40240-E0i199212-199701

main67640-40240-J0i199212-199701

main67640-40250-B0i199212-199701

main67640-40250-E0i199212-199701

main67640-40260-B0i199212-199701

main67640-40260-E0i199212-199701

main67640-40260-J0i199212-199701

main67640-40270-B0i199212-199701

main67640-40270-E0i199212-199701

main67640-40280-B0i199212-199701

SHADOW GRAY,TRIM1#

main67640-40280-E0i199212-199701

SABLE,TRIM4#

main67640-40280-J1i199212-199701

DARK BLUE,TRIM8#

main67640-40290-B0i199212-199701

main67640-40290-E0i199212-199701

main67640-40300-B0i199212-199701

main67640-40300-E0i199212-199701

main67640-40300-J0i199212-199701

main67640-40310-B0i199212-199701

main67640-40310-E0i199212-199701

main67640-40320-B0i199212-199701

main67640-40320-E0i199212-199701

main67640-40330-B0i199212-199701

main67640-40330-E0i199212-199701

main67640-40340-B0i199212-199701

main67640-40340-E0i199212-199701

main67640-40340-J0i199212-199701

main67640-40350-B0i199212-199701

main67640-40350-E0i199212-199701

main67640-40360-B0i199212-199701

main67640-40360-E0i199212-199701

main67640-40360-J0i199212-199701

main67640-40370-B0i199212-199701

main67640-40370-E0i199212-199701

main67640-40380-B0i199212-199701

main67640-40380-E0i199212-199701

main67640-40390-B0i199212-199701

main67640-40390-E0i199212-199701

main67640-91439-02i198709-198905

main67640-91439-03i198709-198905

main67640-91439-04i198709-198905

main67640-91440-01i198709-198905

main67640-91440-02i198709-198905

main67640-91441-03i198709-198905

SHADOW GRAY,TRIM1#

main67640-91441-04i198709-198905

DARK BLUE,TRIM8#

main67640-91442-02i198709-198905

MAROON,TRIM3#

main67640-91442-03i198709-198905

SHADOW GRAY,TRIM1#

main67640-91442-04i198709-198905

DARK BLUE,TRIM8#

main67640-91443-01i198709-198905

main67640-91443-02i198709-198905

main67640-91444-03i198709-198905

main67640-91444-04i198709-198905

main67640-91446-01i198910-199009

main67640-91446-02i198910-199009

main67640-91446-03i198910-199009

main67640-91448-02i198910-199009

main67640-91448-03i198910-199009

main67640-91448-04i198910-199009

main67640-91451-02i198910-199009

main67640-91451-03i198910-199009

main67640-91451-04i198910-199009

main67640-91452-02i198910-199009

main67640-91452-03i198910-199009

main67640-91452-04i198910-199009

main67640-91453-01i198910-199009

main67640-91453-02i198910-199009

main67640-91453-03i198910-199009

main67640-91454-01i198910-199009

main67640-91454-02i198910-199009

main67640-91454-03i198910-199009

main67640-91460-03i198905-199009

SHADOW GRAY,TRIM1#

main67640-91460-04i198905-199009

DARK BLUE,TRIM8#

main67640-91461-02i198905-199009

main67640-91461-03i198905-199009

main67640-91461-04i198905-199009

main67640-91462-01i198905-199009

main67640-91462-02i198905-199009

main67640-91462-03i198905-199009

main67640-91463-03i198905-199009

main67640-91463-04i198905-199009

main67640-91464-02i198905-199009

MAROON,TRIM3#

main67640-91464-03i198905-199009

SHADOW GRAY,TRIM1#

main67640-91464-04i198905-199009

DARK BLUE,TRIM8#

main67640-91465-01i198905-199009

main67640-91465-02i198905-199009

main67640-91465-03i198905-199009

main67640-91467-01i198910-199009

main67640-91467-02i198910-199009

main67640-91467-03i198910-199009

main67640-91470-02i198910-199009

main67640-91470-03i198910-199009

main67640-91470-04i198910-199009

67609CGRILLE SUB-ASSY, REAR DOOR SPEAKER

main67609-91402-01×2i198709-199009

BLACK,TRIM2#

main67609-91402-02×2i198709-199009

MAROON,TRIM3#

main67609-91402-03×2i198709-198905

SHADOW GRAY,TRIM1#

main67609-91402-04×2i198709-199009

DARK BLUE,TRIM8#

main67609-91402-13×2i198905-199009

SHADOW GRAY,TRIM1#

main67609-91402-23×2i198905-199009

SHADOW GRAY,TRIM1#

main86269-40010-01×2i199009-199212

BRACK,TRIM2#

main86269-40010-02×2i199009-199212

MAROON,TRIM3#

main86269-40010-03×2i199009-199212

SHADOW GRAY,TRIM1#

main86269-40010-04×2i199009-199701

DARK BLUE,TRIM8#

main86269-40010-B0×2i199212-199701

SHADOW GRAY,TRIM1#

main86269-40010-E0×2i199212-199701

SABLE,TRIM4#

67633ARETAINER, REAR DOOR TRIM, UPPER

main67633-91412×2i198709-199701

67638BWEATHERSTRIP, REAR DOOR CORNER

main67638-91402×3i198709-198905

67661ABASE, REAR DOOR SPEAKER GRILLE

main67661-91403-01×2i198907-199009

BLACK,TRIM2#

main67661-91403-02×2i198907-199009

MAROON,TRIM3#

main67661-91403-03i198709-198907

SHADOW GRAY,TRIM1#

main67661-91403-04×2i198907-199009

DARK BLUE,TRIM8#

main86269-40020-22×2i199009-199212

BLACK,TRIM2#

main86269-40020-B0×2i199212-199701

SHADOW GRAY,TRIM1#

main86269-40020-D0×2i199009-199212

MAROON,TRIM3#

main86269-40020-E0×2i199212-199701

SABLE,TRIM4#

main86269-40020-J0×2i199212-199701

DARK BLUE,TRIM8#

main86269-40020-P0×2i199009-199212

SHADOW GRAY,TRIM1#

main86269-40020-R8×2i199009-199212

DARK BLUE,TRIM8#

67667BEZEL, SEPARATOR WINDOW SWITCH, RH

main67667-91402i198910-199009

67668BEZEL, SEPARATOR WINDOW SWITCH, LH

main67668-91402i199009-199212

67707AORNAMENT SUB-ASSY, REAR DOOR TRIM, RH

main67707-91409i198709-198905

main67707-91410i198910-199009

main67707-91412i198905-199009

67708AORNAMENT SUB-ASSY, REAR DOOR TRIM, LH

main67708-91411i198709-198905

main67708-91412i198910-199009

main67708-91414i198905-199009

67772FCAP, REAR DOOR TRIM RETAINER

main67772-20021×10i198709-199701

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-91401i198709-199009

67811APAD, REAR DOOR SILENCER

main67811-30050×2i198910-199009

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-91407×2i198709-199701

67871WEATHERSTRIP, REAR DOOR, RH

main67871-91401i198709-199701

main67871-91402i199009-199701

67872WEATHERSTRIP, REAR DOOR, LH

main67872-91401i198709-199701

main67872-91402i199009-199701

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-91402i198709-199701

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-91403i198709-199701

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-91406i198709-198905

main68113-91407i198709-198905

main68113-91408i199009-199701

main68113-91409i198910-199009

main68113-91411i198905-199701

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-91405i198709-199701

main68114-91406i198905-199701

main68114-91407i199009-199701

main68114-91408i198910-199009

main68114-91410i198905-199701

68142BRUN, REAR DOOR WINDOW, RH

main68142-91409i198709-199701

main68142-91410i198910-199009

68144ARETAINER, QUARTER WINDOW NO.2 GLASS

main68144-91403×2i198709-199606

68152BRUN, REAR DOOR WINDOW, LH

main68152-91403i198709-199701

main68152-91404i199009-199701

68180DWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER

main68180-91406×2i198709-199701

main68180-91408i199009-199701

main68230-91403i199009-199701

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-40010i198709-199606

main68188-40030i199606-199701

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-40010i198709-199606

main68189-40030i199606-199701

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-91407×2i199009-199701

main68190-91411×2i199009-199701

68231BSEAL, REAR DOOR DRAIN HOLE DUST

main68231-91401×6i198910-199009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8602SPEAKER

→ Go to FIG 86-02

9011906070

main90119-06070

9015380001

main90153-80001

9017904092

main90179-04092

9020108055

main90201-08055

9033330002

main90333-30002

9033340001

main90333-40001

9165140612

main91651-40612

9166140830

main91661-40830

9322915010

main93229-15010

9322924008

main93229-24008

9331116014

main93311-16014

9338516016

main93385-16016

9356014008

main93560-14008

REAR DOOR PANEL & GLASS
