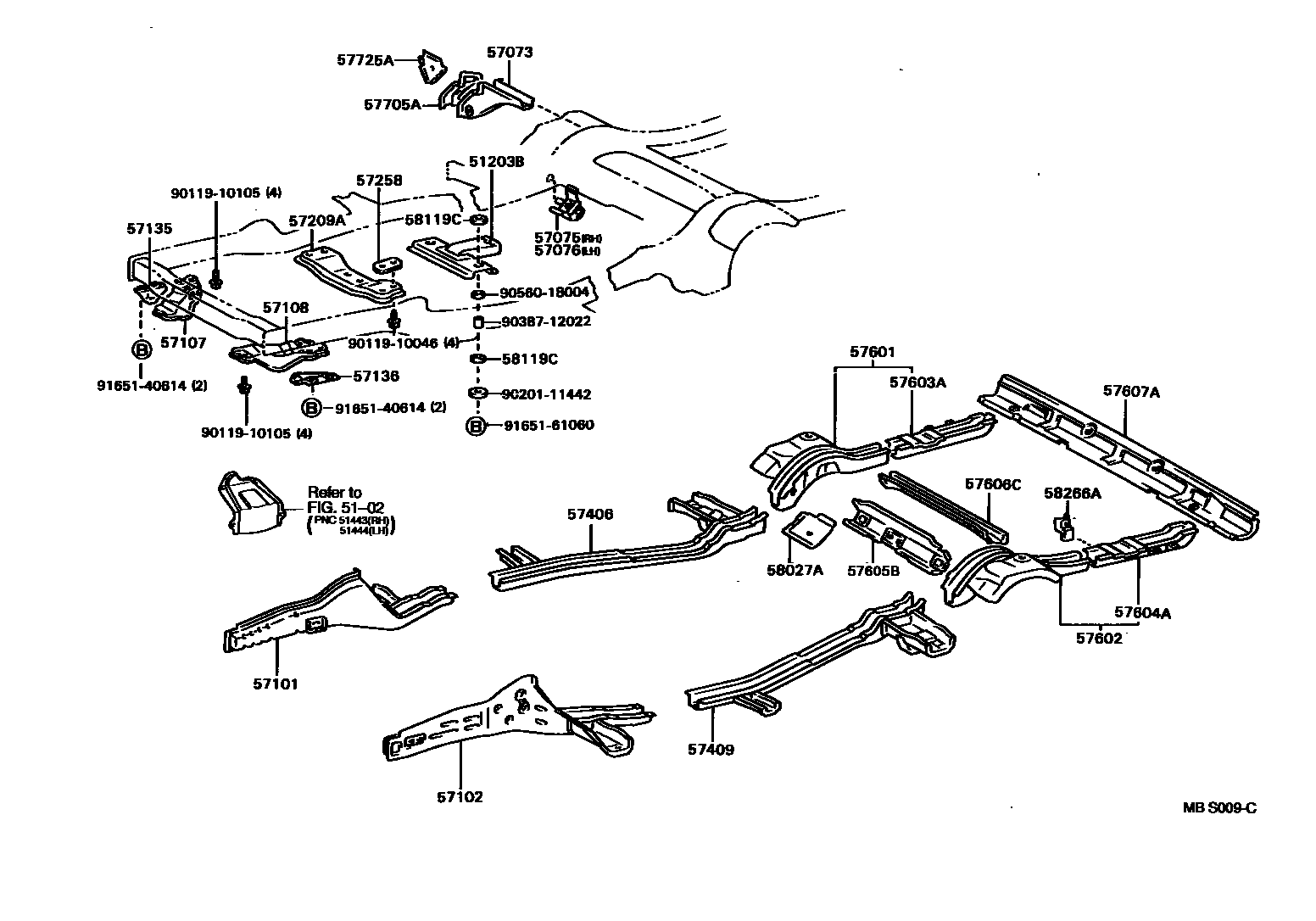

FLOOR SIDE MEMBER
5102SUSPENSION CROSSMEMBER & UNDER COVER
51203BCROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT
57073BRACKET SUB-ASSY, LATERAL ROD
57075BRACKET SUB-ASSY, UPPER CONTROL LINK, RH
57076BRACKET SUB-ASSY, UPPER CONTROL LINK, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57135PLATE, STRUT BAR BRACKET, UPPER RH
57136PLATE, STRUT BAR BRACKET, UPPER LH
57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING
57258PLATE, ENGINE REAR SUPPORT MEMBER
57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57705APLATE SUB-ASSY, LATERAL ROD BRACKET
57725AREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT, RH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58119CCUSHION, FRONT FLOOR
58266ABRACKET, FUEL TUBE CLAMP
9011910046
main90119-10046
9011910105
main90119-10105
9020111442
main90201-11442
9038712022
main90387-12022
9056018004
main90560-18004
9165140614
main91651-40614
9165161060
main91651-61060
34 parts on this diagram · 1 diagram in section
