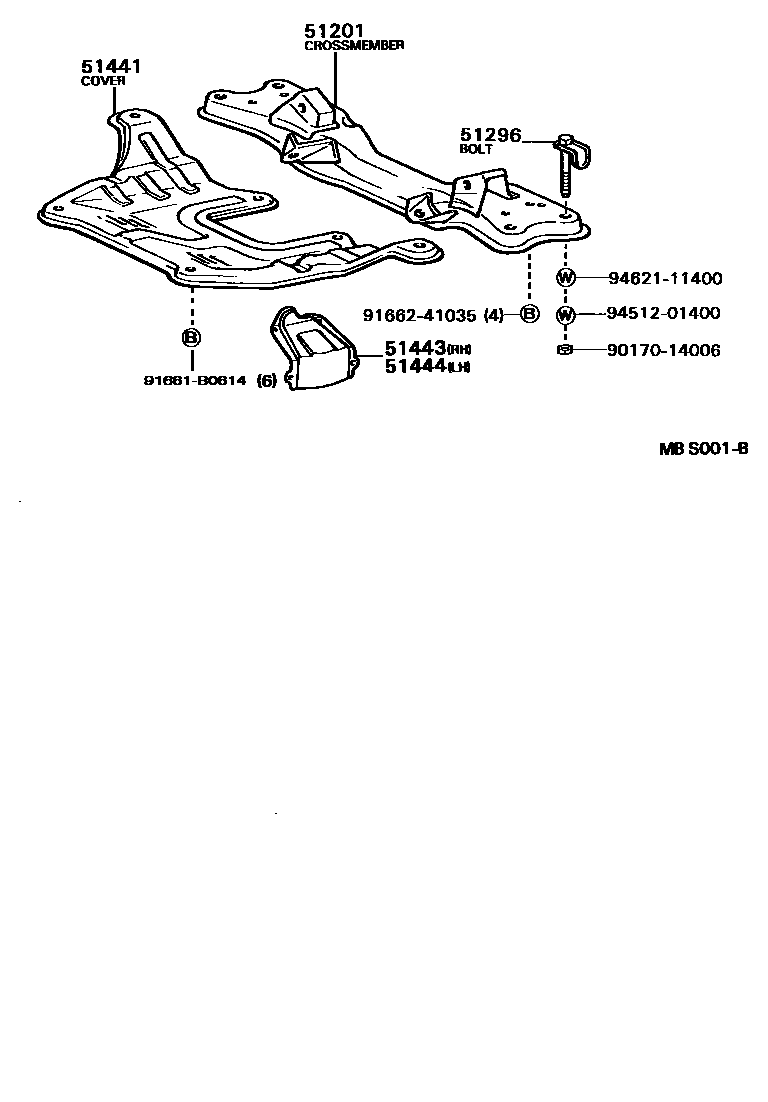

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-91401iVG4#198709-199701

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-91401×4iVG4#198709-199701

51441COVER, ENGINE UNDER, NO.1

main51441-91401iVG4#198709-199701

51443COVER, ENGINE UNDER, REAR RH

main51443-40020iVG4#199212-199701

51444COVER, ENGINE UNDER, REAR LH

main51444-40020iVG4#199212-199701

9017014006

main90170-14006

91661B0614

main91661-B0614

9166241035

main91662-41035

9451201400

main94512-01400

9462111400

main94621-11400

10 parts on this diagram · 1 diagram in section
