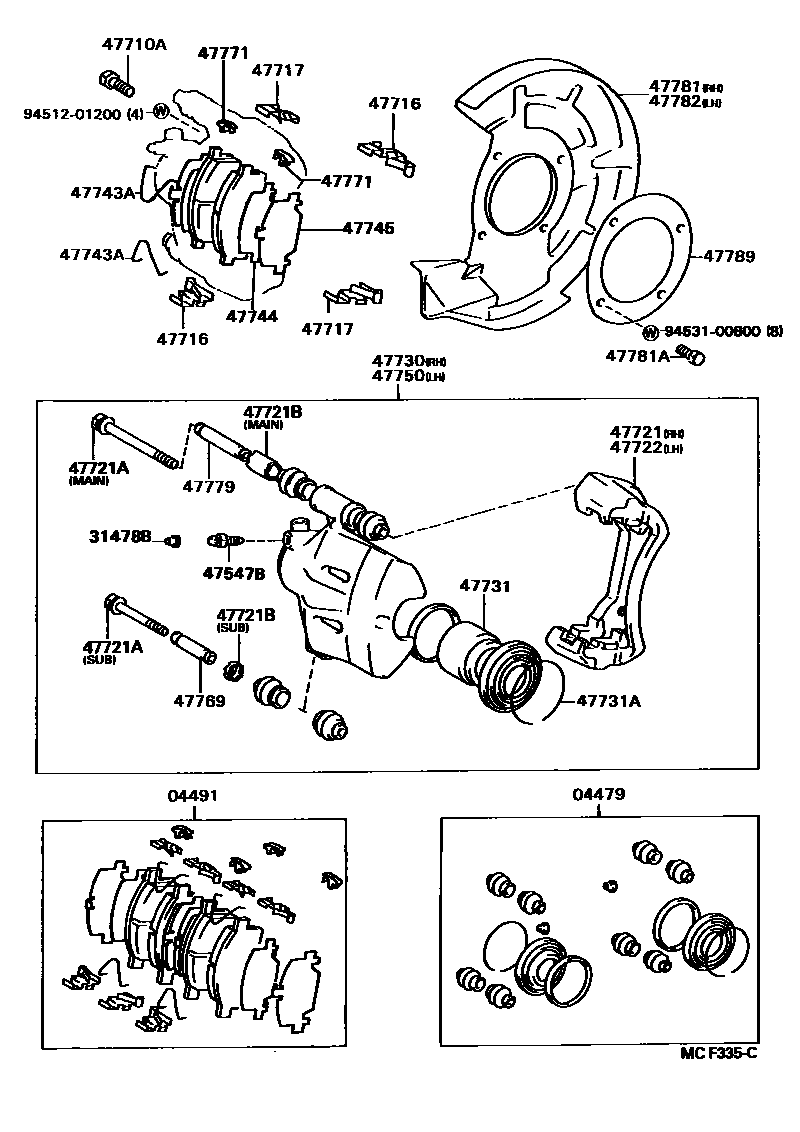

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-40010iVG4#198709-199212

sub04479-35050

main04479-50030iVG4#199212-199701

04491PAD KIT, DISC BRAKE, FRONT

main04491-24031iVG4#199212-199401

sub04491-24060

main04491-24060iVG4#199401-199505

sub04465-24010

main04491-40041iVG4#198709-199212

sub04465-40010

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iVG4#198709-199701

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iVG4#198709-199212

main47547-27030iVG4#199212-199701

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12030iVG4#198709-199701

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040iVG4#199108-199212

main47716-40010iVG4#198709-199108

sub47716-26040

main47716-50010iVG4#199212-199701

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-50030iVG4#199212-199701

main47717-26010iVG4#199108-199212

main47717-40010iVG4#198709-199108

sub47717-26010

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-40010iVG4#198709-199212

main47721-40030iVG4#199212-199701

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iVG4#198709-199212

main90119-10249iVG4#198709-199212

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004iVG4#198709-199212

L=6,SUB PIN SIDE

main90387-16005iVG4#198709-199212

L=36,MAIN PIN SIDE

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-40010iVG4#198709-199212

main47722-40010iVG4#199212-199701

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-40050iVG4#198709-199212

main47730-40080iVG4#199212-199304

sub47730-40081

main47730-40081iVG4#199304-199701

47731PISTON, FRONT DISC BRAKE

main47731-40010iVG4#198709-199212

main47731-50030iVG4#199212-199701

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-50002iVG4#199212-199701

main90522-70001iVG4#198709-199212

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-40020iVG4#198709-199212

main47743-50030iVG4#199212-199701

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-40040iVG4#198709-199212

main47744-50010iVG4#199212-199701

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-40040iVG4#198709-199212

main47745-50010iVG4#199212-199701

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-40050iVG4#198709-199212

main47750-40080iVG4#199212-199304

sub47750-40081

main47750-40081iVG4#199304-199701

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iVG4#198709-199212

main47769-50010iVG4#199212-199701

main47769-50020iVG4#199212-199701

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-35010iVG4#198709-199212

main47771-50010iVG4#199212-199701

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iVG4#198709-199212

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-40010iVG4#..E,L198709-199212

main47703-40010iVG40..D199201-199212

main47703-40020iVG40..D199212-199701

main47781-40040iVG40..D198709-199212

main47781-40060iVG40..D199212-199701

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08461iVG4#198709-199701

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-40010iVG4#..E,L198709-199212

main47704-40010iVG40..D199201-199212

main47704-40020iVG4#..E,L199212-199701

main47782-40030iVG40..D198709-199212

main47782-40050iVG40..D199212-199701

47789SPACER, DUST COVER

main47789-40020iVG40..D198709-199701

9451201200

main94512-01200

9453100800

main94531-00800
