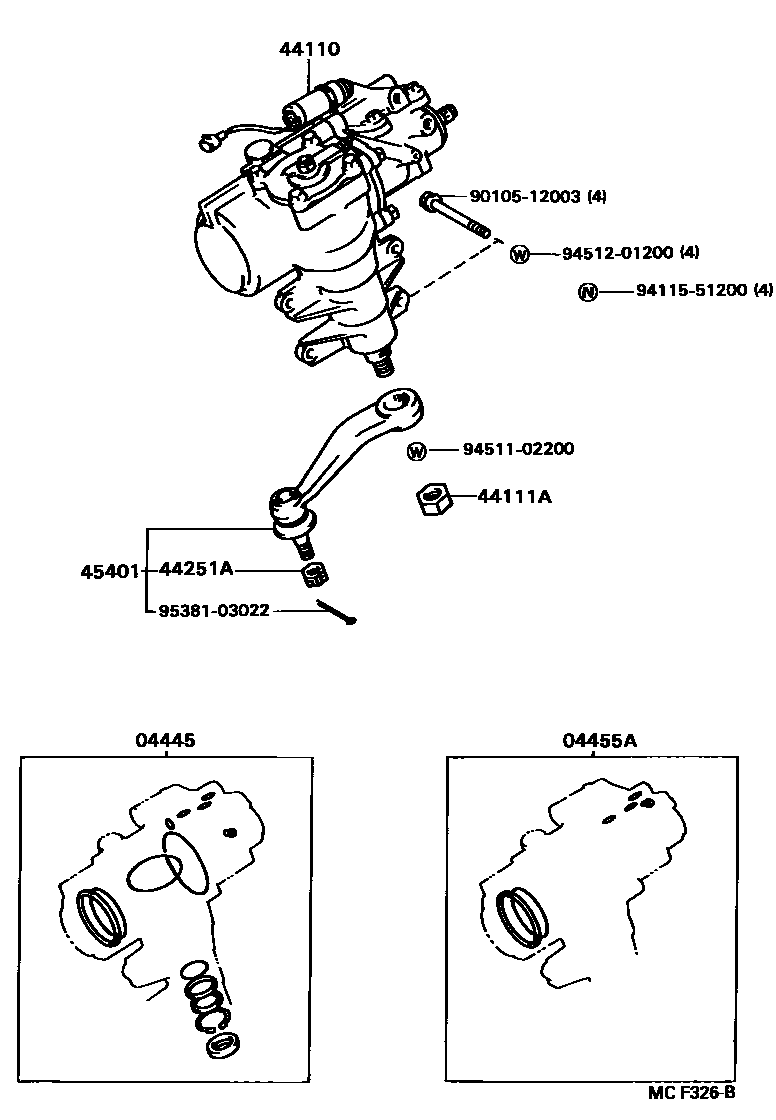

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-40031iVG4#198709-199107

main04445-40032iVG4#199107-199701

04455AGASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

main04455-40020iVG4#198709-199107

main04455-40021iVG4#199107-199701

44110GEAR ASSY, POWER STEERING

main44110-40041iVG40198709-198908

main44110-40042iVG40198908-199009

main44110-40050iVG4#199009-199212

main44110-40060iVG4#199212-199701

44111SHAFT, CROSS

main44111-40030iVG4#198709-199212

main44111-40040iVG4#199212-199701

44111ANUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

main90170-22058iVG4#198709-199701

44251ANUT, CASTLE(FOR PITMAN ARM)

main90171-14042iVG4#198709-199701

45401ARM SUB-ASSY, PITMAN

main45401-49015iVG4#198709-199212

main45401-49025iVG4#199212-199701

9010512003

main90105-12003

9411551200

main94115-51200

9451102200

main94511-02200

9451201200

main94512-01200

9538103022

main95381-03022

12 parts on this diagram · 3 diagrams in section
