STEERING WHEEL

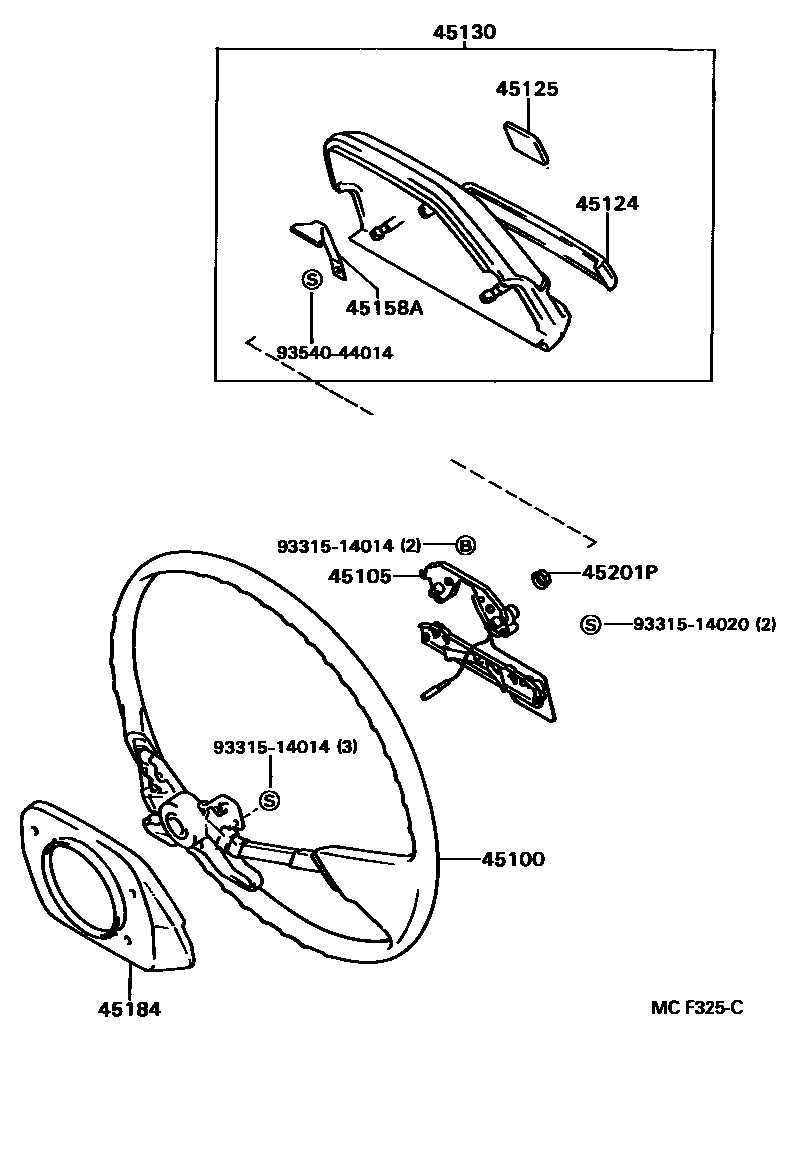

Parts diagram
45100WHEEL ASSY, STEERING
main45100-40070-03i198709-199212
SHADOW GRAY,TRIM1#
sub45100-40070
main45100-40070-04i198709-199212
DARK BLUE,TRIM8#
sub45100-40070
main45100-40090-B0i199212-199701
SHADOW GRAY,TRIM1#
main45100-40090-E0i199212-199701
SABLE,TRIM4#
main45100-40090-J0i199212-199701
DARK BLUE,TRIM8#
main45100-40100-B0i199212-199701
SHADOW GRAY,TRIM1#
main45100-40100-J0i199212-199701
DARK BLUE,TRIM8#
main45102-40060-01i198709-199212
BLACK,TRIM2#
sub45102-40060
main45102-40060-02i198709-199208
MAROON,TRIM3#
sub45102-40060
main45102-40060-03i198709-199208
SHADOW GRAY,TRIM1#
sub45102-40060
main45102-40060-04i198709-199208
DARK BLUE,TRIM8#
sub45102-40060
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-40010i198709-199212
main45105-40020i198709-199212
45124ORNAMENT, STEERING WHEEL MARK
main45124-40010-01i199009-199212
BLACK,TRIM2#
sub45124-40010
main45124-40010-02i198709-199212
MAROON,TRIM3#
sub45124-40010
main45124-40010-03i198709-199212
SHADOW GRAY,TRIM1#
sub45124-40010
main45124-40010-04i198709-199212
DARK BLUE,TRIM8#
sub45124-40010
main45124-40020-01i199009-199212
sub45124-40020
main45124-40020-02i198709-199212
sub45124-40020
main45124-40020-03i198709-199212
sub45124-40020
main45124-40020-04i198709-199212
sub45124-40020
45125MARK, STEERING WHEEL PAD
main45125-40030i198709-199212
45130BUTTON ASSY, HORN
main45130-40030-01i198709-199212
BLACK,TRIM2#
sub45130-40030
main45130-40030-02i198709-199212
MAROON,TRIM3#
sub45130-40030
main45130-40030-03i198709-199212
SHADOW GRAY,TRIM1#
sub45130-40030
main45130-40030-04i198709-199212
DARK BLUE,TRIM8#
sub45130-40030
main45130-40050-B0i199212-199701
SHADOW GRAY,TRIM1#
sub45130-40050
main45130-40050-E0i199212-199701
SABLE,TRIM4#
sub45130-40050
main45130-40050-J0i199212-199701
DARK BLUE,TRIM8#
sub45130-40050
45158ASOCKET, HORN BUTTON JOINT
main45158-40020i198709-199212
45184COVER, STEERING WHEEL BOSS, LOWER
main45184-40020-03i198709-199212
SHADOW GRAY,TRIM1#
sub45184-40020
main45184-40020-04i198709-199212
DARK BLUE,TRIM8#
sub45184-40020
main45184-40030-01i198709-199212
BLACK,TRIM2#
sub45184-40030
main45184-40030-02i198709-199212
MAROON,TRIM3#
sub45184-40030
main45184-40030-03i198709-199212
SHADOW GRAY,TRIM1#
sub45184-40030
main45184-40030-04i198709-199212
DARK BLUE,TRIM8#
sub45184-40030
45201PNUT, STEERING WHEEL SET
main90179-12071i199306-199701
main90179-12086i198709-199306
9331514014
main93315-14014
9331514020
main93315-14020
9354044014
main93540-44014

11 parts on this diagram · 3 diagrams in section
