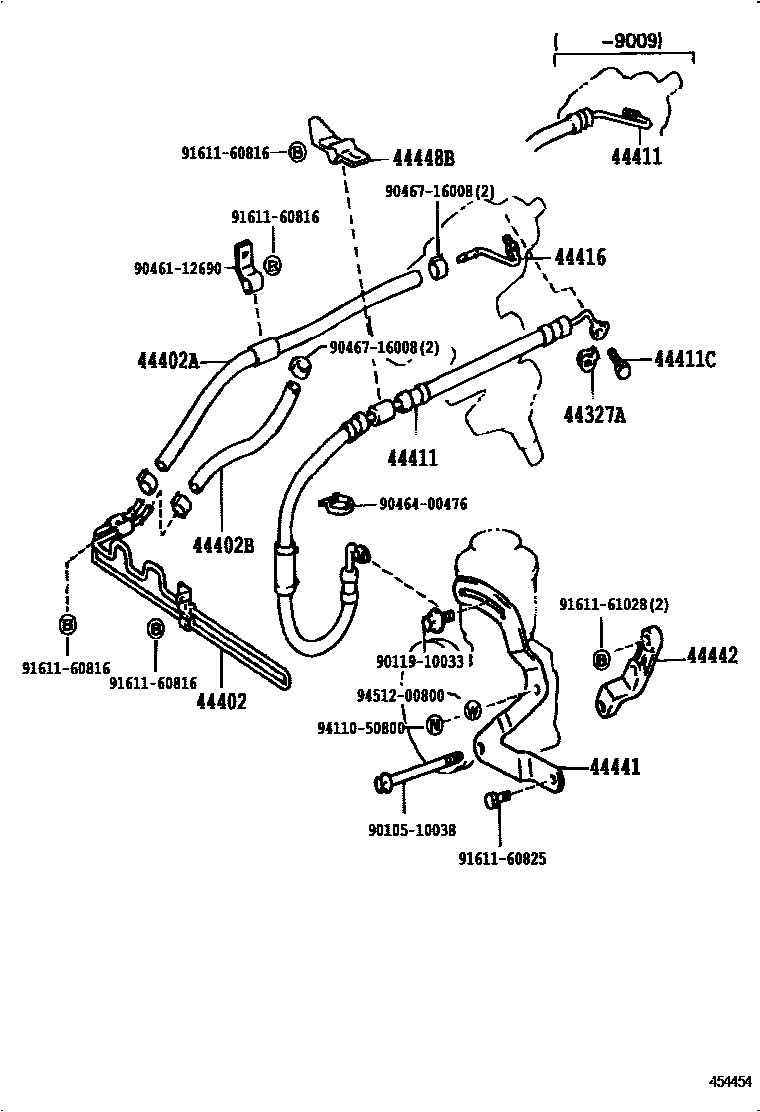

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iVG4#199009-199701

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-40020iVG4#198709-199701

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18134iVG4#198709-199701

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90445-18061iVG4#198709-199010

main90445-18093iVG4#199010-199701

44411HOSE, PRESSURE FEED

main44411-40081iVG40198709-199009

main44411-40090iVG4#199009-199212

main44411-40100iVG4#199212-199701

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16013iVG4#199009-199701

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-40021iVG40198709-199009

main44416-40030iVG4#199009-199701

44441BRACKET, PUMP, FRONT

main44441-40040iVG4#198709-199701

44442BRACKET, PUMP, REAR

main44442-40040iVG4#198709-199701

44448BBRACKET, HOSE SUPPORT, NO.2

main44448-40030iVG4#198709-199701

9010510038

main90105-10038

9011910033

main90119-10033

9046112690

main90461-12690

9046400476

main90464-00476

9046716008

main90467-16008

9161160816

main91611-60816

9161160825

main91611-60825

9161161028

main91611-61028

9411050800

main94110-50800

9451200800

main94512-00800

20 parts on this diagram · 1 diagram in section
