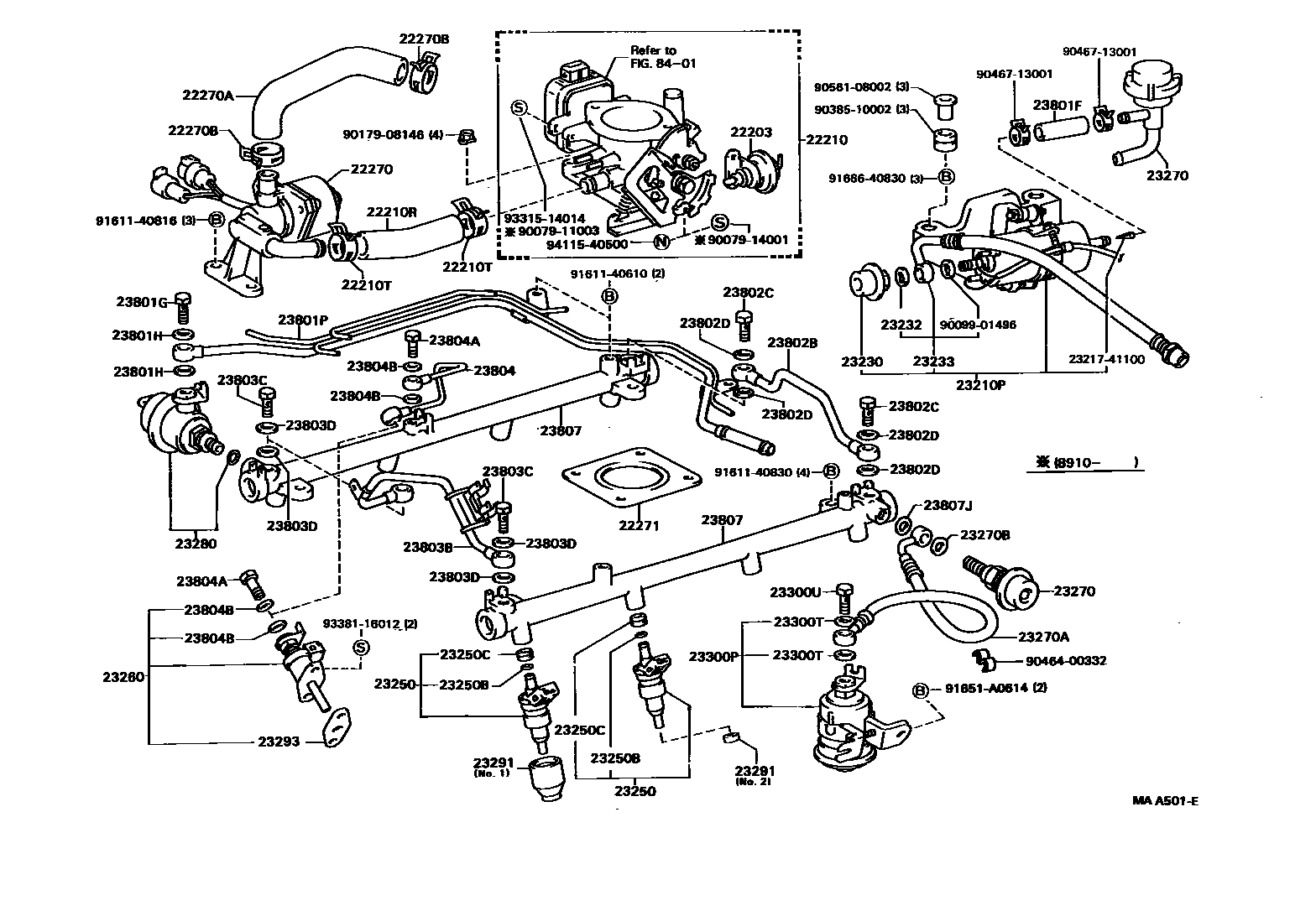

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22210RHOSE, THROTTLE BODY, NO.1
22210TCLIP(FOR THROTTLE BODY, NO.1)
sub96134-52600
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270BCLIP(FOR AIR HOSE)
sub96134-52600
23210PPUMP ASSY, FUEL W/MOTOR & BRACKET
23230SILENCER ASSY
23232GASKET(FOR FUEL PUMP HOSE)
23233HOSE, FUEL PUMP
23250INJECTOR ASSY, FUEL
sub23209-43010
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
FUEL PUMP SIDE
DELIVERY PIPE SIDE
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801FHOSE, FUEL, NO.1
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23804PIPE SUB-ASSY, FUEL, NO.4
23804ABOLT, UNION(FOR FUEL PIPE NO.4)
23804BGASKET(FOR FUEL PIPE NO.4)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807JGASKET, PIPE FUEL DELIVARY INLET
8401
2321741100FILTER, FUEL PUMP
main23217-41100
9007911003
main90079-11003
9007914001
main90079-14001
9009901496
main90099-01496
9017908146
main90179-08146
9038510002
main90385-10002
9046400332
main90464-00332
9046713001
main90467-13001
9056108002
main90561-08002
9161140610
main91611-40610
9161140816
main91611-40816
9161140830
main91611-40830
91651A0614
main91651-A0614
9166640830
main91666-40830
9331514014
main93315-14014
9338116012
main93381-16012
9411540500
main94115-40500
58 parts on this diagram · 1 diagram in section
