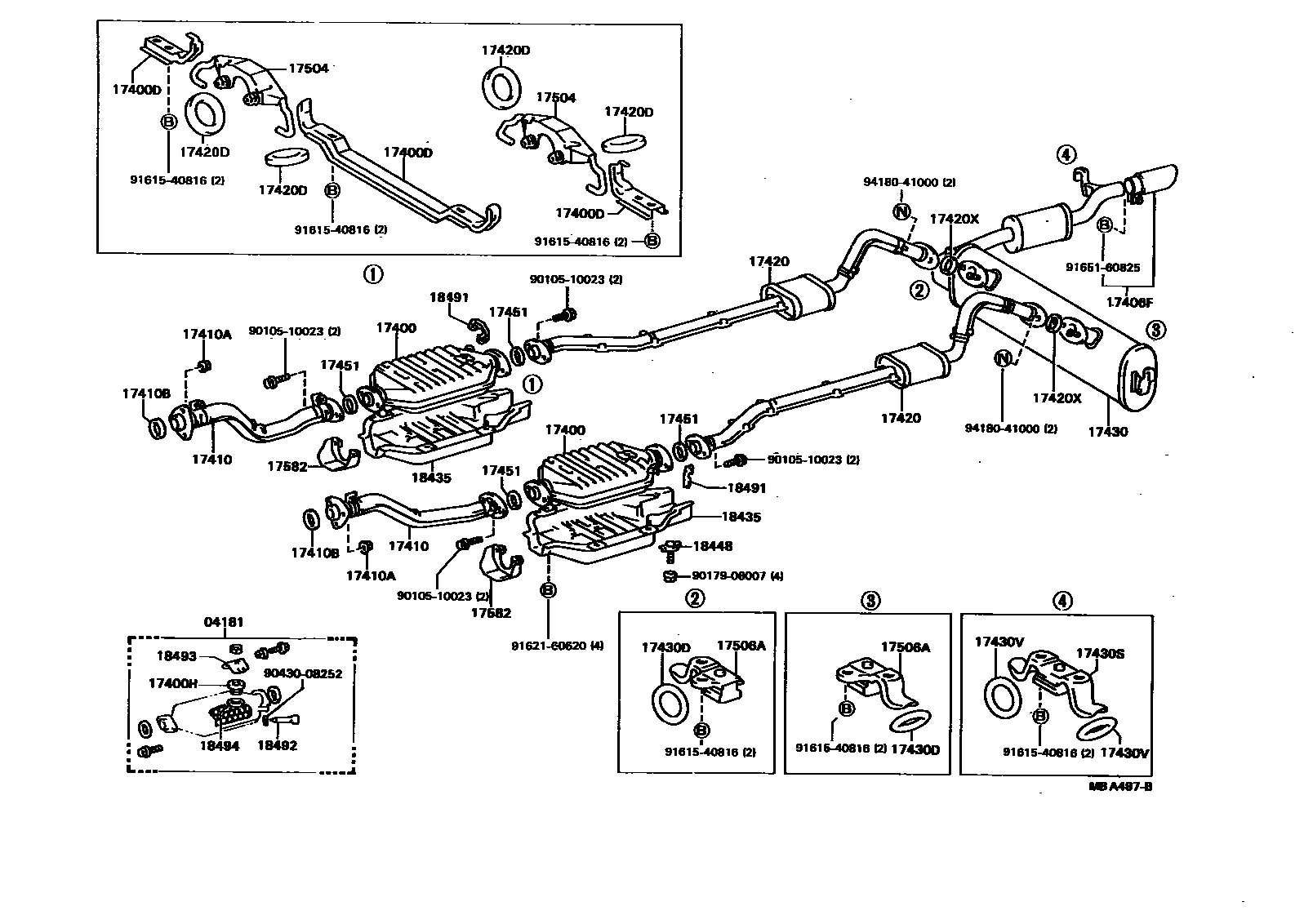

EXHAUST PIPE
04181PELLET KIT
17400CONVERTER ASSY, W/CATALYST
LH
RH
17400DBRACKET, CATALYTIC CONVERTER SUPPORT
RH & LH
CTR
17400HPLUG, W/HEAD STRAIGHT SCREW(FOR CATALYZER INLET)
17406FDIFFUSER SUB-ASSY, EXHAUST GAS
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
17504BRACKET SUB-ASSY, CATALYTIC CONVERTER
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17582BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
18435PROTECTOR, CATALYTIC CONVERTER
18448BRACKET, CONVERTER PROTECTOR, CENTER
18491FLANGE, THERMOSENSOR INLET
18492GUIDE, CATALYTIC CONVERTER SENSOR
18493PLATE, CATALYZER INLET PLUG LOCK
18494GASKET, CATALYZER INLET
9010510023
main90105-10023
9017906007
main90179-06007
9043008252
main90430-08252
9161540816
main91615-40816
9162160620
main91621-60620
9165160825
main91651-60825
9418041000
main94180-41000
32 parts on this diagram · 2 diagrams in section
