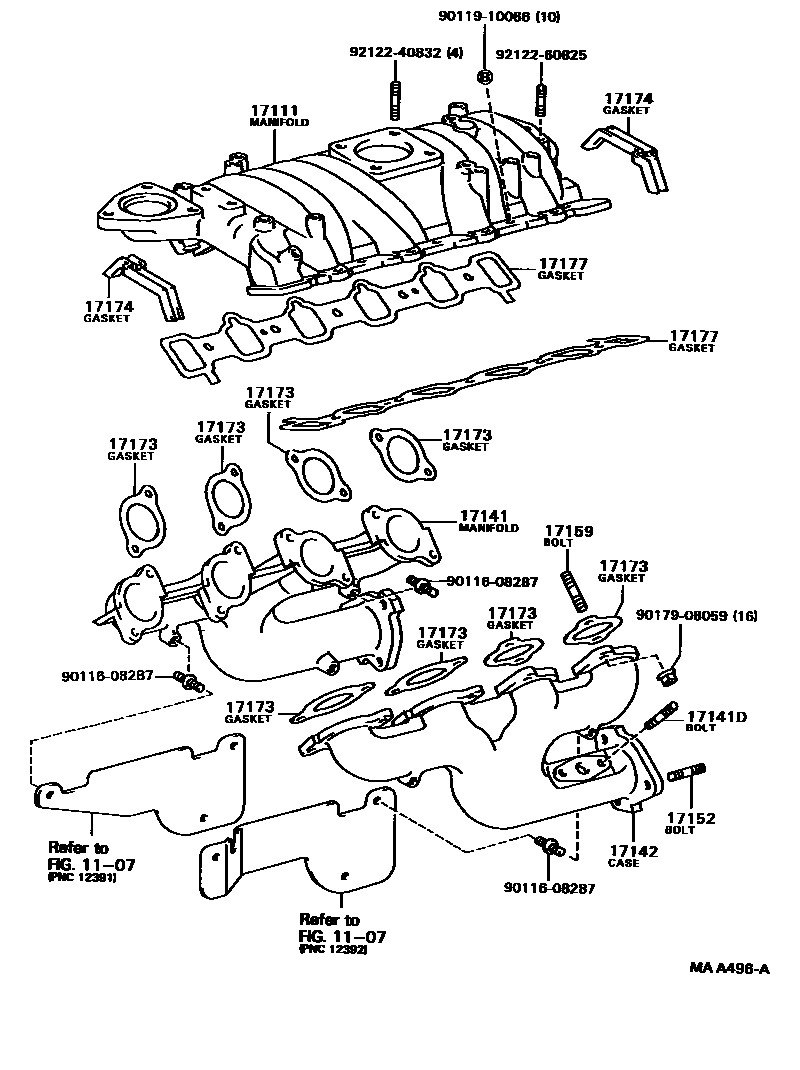

MANIFOLD

1107MOUNTING

→ Go to FIG 11-07

17111MANIFOLD, INTAKE

main17101-52050i5VEU..VG4#198709-199701

17141MANIFOLD, EXHAUST

main17141-52060i5VEU..VG4#198709-199212

main17141-52070i5VEU..VG4#199212-199701

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128×4i5VEU..VG4#198709-199701

17142CASE, EXHAUST MANIFOLD, NO.2

main17142-52040i5VEU..VG4#198709-199212

main17142-52050i5VEU..VG4#199212-199701

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017×6i5VEU..VG4#198709-199701

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08077×16i5VEU..VG4#198709-199701

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-51010×8i5VEU..VG4#198709-199701

17174GASKET, INTAKE MANIFOLD TO BLOCK

main17174-51010×2i5VEU..VG4#198709-199701

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-52020×2i5VEU..VG40198709-199009

main17177-52021×2i5VEU..VG4#199009-199701

9011608287

main90116-08287

9011910066

main90119-10066

9017908059

main90179-08059

9212240832

main92122-40832

9212260825

main92122-60825

15 parts on this diagram · 1 diagram in section
