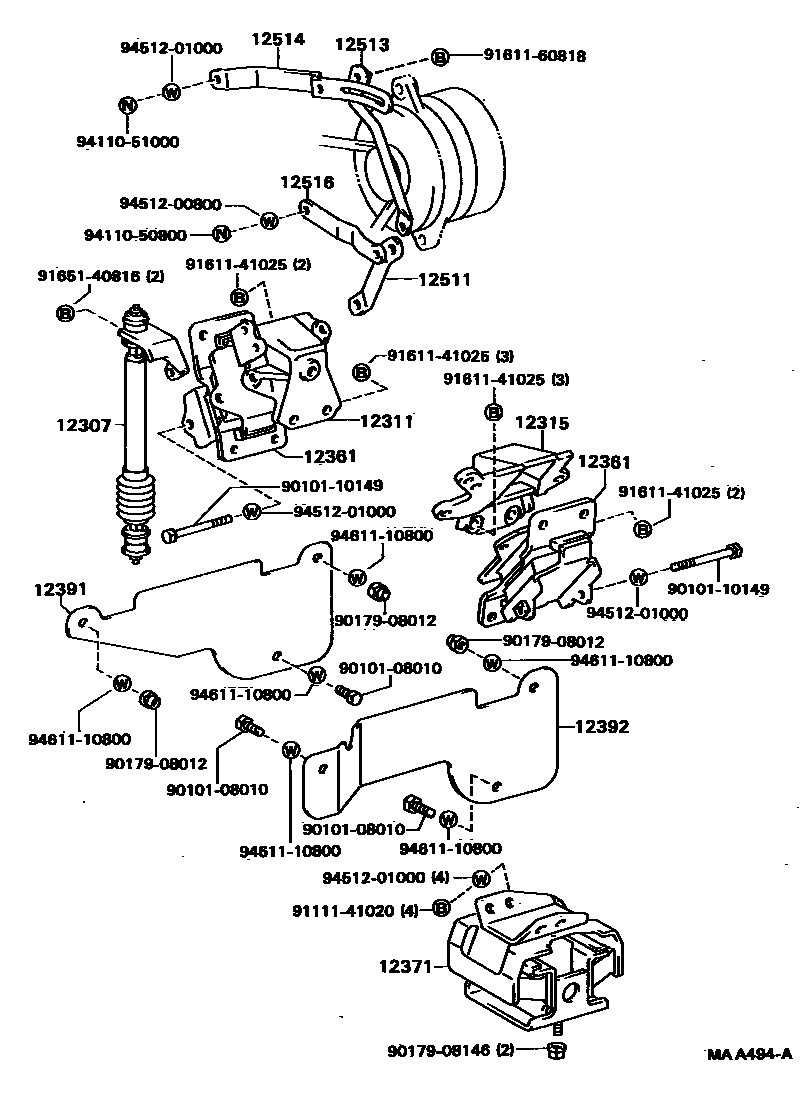

MOUNTING

12307ABSORBER SUB-ASSY, ENGINE MOUNTING

main12307-52010i5VEU..VG4#198709-199701

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-52020i5VEU..VG4#198709-199701

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-52020i5VEU..VG4#198709-199701

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-52030×2i5VEU..VG4#198709-199701

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-52011i5VEU..VG4#198709-199701

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-52030i5VEU..VG40198709-199009

main12391-52031i5VEU..VG4#199009-199701

12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH

main12392-52020i5VEU..VG40198709-199009

main12392-52021i5VEU..VG4#199009-199701

12511BRACKET, ALTERNATOR, NO.1

main12511-51010i5VEU..VG4#198709-199701

12513BRACKET, ALTERNATOR, NO.3

main12513-52010i5VEU..VG4#198709-199701

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-52010i5VEU..VG4#198709-199701

12516BRACKET, ALTERNATOR, NO.2

main12516-51010i5VEU..VG4#198709-199701

9010108010

main90101-08010

9010110149

main90101-10149

9017908012

main90179-08012

9017908146

main90179-08146

9111141020

main91111-41020

9161141025

main91611-41025

9161160818

main91611-60818

9165140816

main91651-40816

9411050800

main94110-50800

9411051000

main94110-51000

9451200800

main94512-00800

9451201000

main94512-01000

9461110800

main94611-10800

24 parts on this diagram · 1 diagram in section
