CYLINDER BLOCK

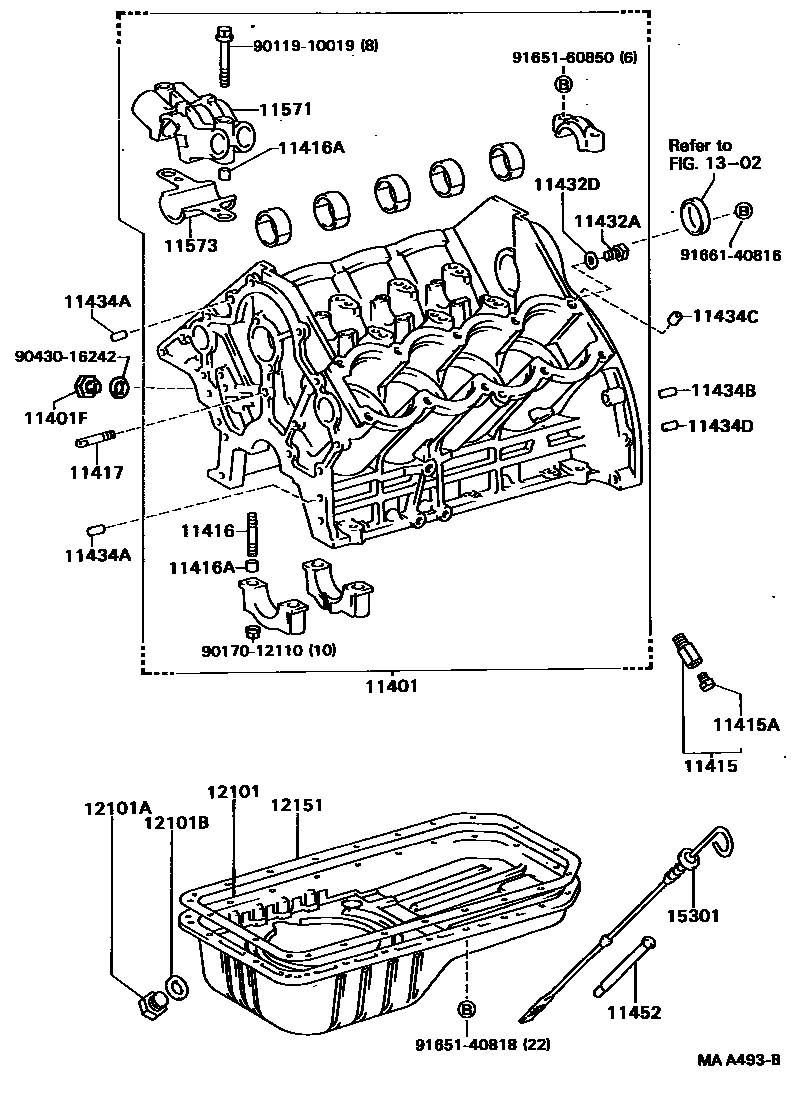

Parts diagram

11401BLOCK SUB-ASSY, CYLINDER

main11401-52020i198709-199701

11401FUNION(FOR OIL PRESSURE SWITCH)

main90404-16205i198709-199701

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96432-53828×2i198709-199701

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96432-23814×2i198709-199701

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90116-12138×10i198709-199701

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13008×8i198709-199701

L=13,OD=12.5

main90253-16014×10i198709-199701

11417NOZZLE, OIL

main90915-01010i198709-199701

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90341-14032i198709-199701

11432DGASKET, W/HEAD TAPER SCREW PLUG

main90430-14235i198709-199701

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-10113×2i198709-198910

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i198709-198910

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-16014×4i198709-199701

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-10113×2i198709-198910

main90250-10232×2i198910-199701

11452GUIDE, OIL LEVEL GAGE

main11452-41010i198709-199701

11571CASE, VALVE LIFTER

main11571-51011×4i198709-199701

11573PLATE, OIL REFLECTOR

main11573-51010×4i198709-199701

12101PAN SUB-ASSY, OIL

main12101-52021i198709-199701

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i198709-199701

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i198709-198803

main90430-12019i198803-199204

main90430-12028i199204-199701

12151GASKET, OIL PAN

main12151-51010i198709-199701

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-52010i198709-198804

main15301-52011i198804-199701

9011910019

main90119-10019

9017012110

main90170-12110

9043016242

main90430-16242

9165140818

main91651-40818

9165160850

main91651-60850

9166140816

main91661-40816

28 parts on this diagram · 1 diagram in section
