STANDARD TOOL

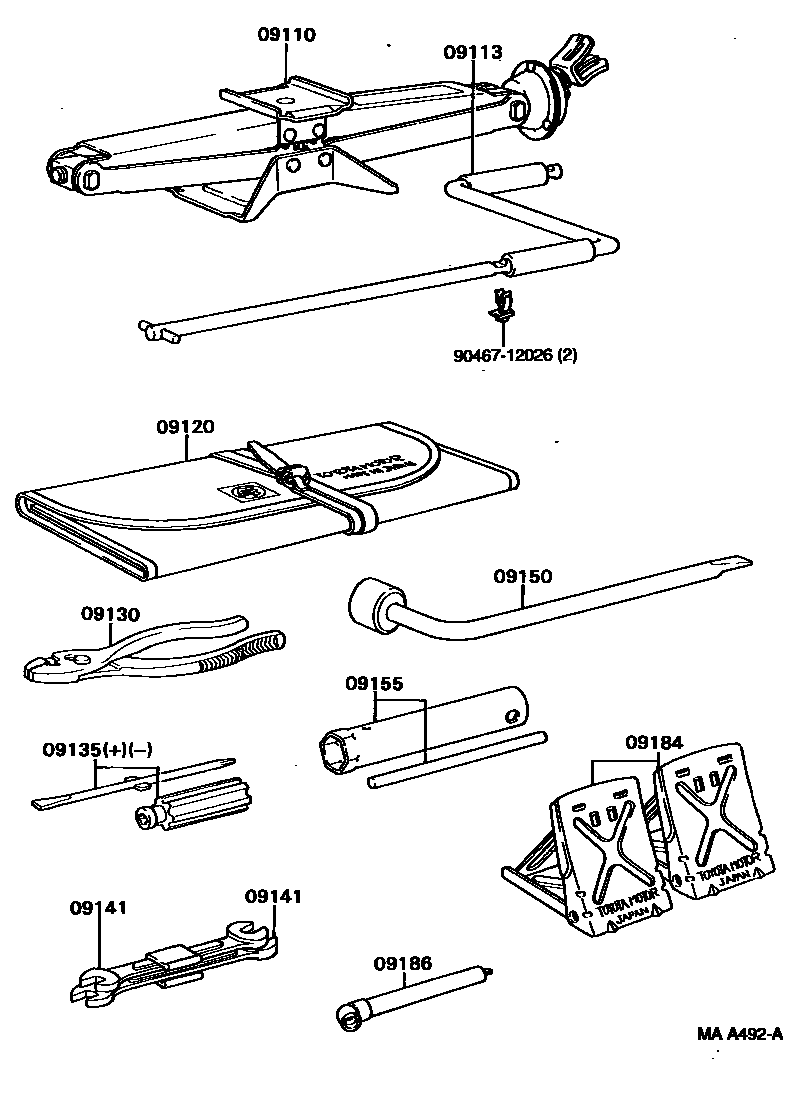

Parts diagram

09110JACK ASSY

main09111-40021i198709-199701

09113HANDLE, JACK

main09113-40010i198709-199701

09120BAG, TOOL

main09120-20030i198709-199701

09130PLIERS

main99913-11500i198709-199701

09135DRIVER, SCREW

main99915-10700i198709-199701

09141SPANNER

main99914-10810i198709-199701

main99914-11214i198709-199701

09150WRENCH, HUB NUT BOX

main09150-40010i198709-199701

09155WRENCH, SPARK PLUG

main09155-26010i198709-199701

09184STOPPER, WHEEL

main09184-00010i198709-199701

09186GAGE, TIRE

main09186-00010i198709-199701

9046712026

main90467-12026

11 parts on this diagram · 1 diagram in section
