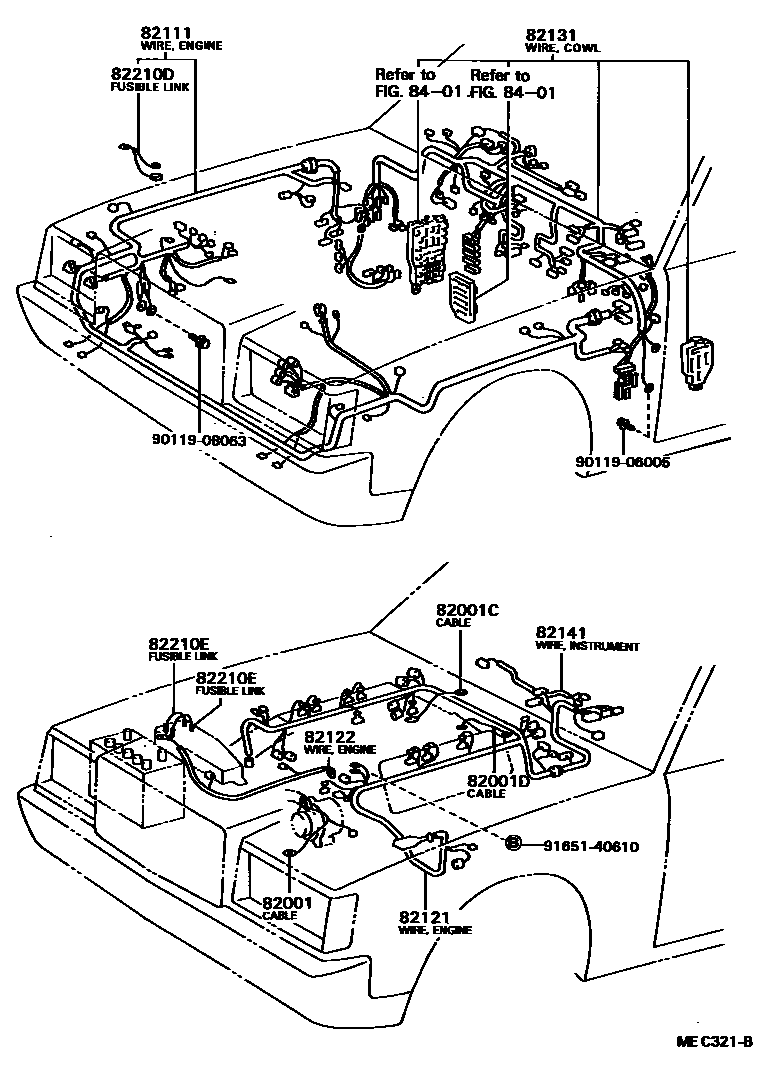

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1

82001CABLE, BOND, NO.1

main90980-07214iVG40198210-198709

ALTERNATOR--BODY

82001CCABLE, BOND, NO.2

main90980-07067iVG40198210-198709

SOLENOID RESISTOR--DASH PANEL

82001DCABLE, BOND, NO.3

main90980-07062iVG40198210-198709

ENGINE RR HUNGER--DASH PANEL

82111WIRE, ENGINE ROOM MAIN

main82111-40010iVG40198210-198601

main82111-40011iVG40198601-198709

82121WIRE, ENGINE

main82121-40010iVG40198210-198709

82122WIRE, ENGINE, NO.2

main82122-40010iVG40198210-198709

82131WIRE, COWL

main82131-40010iVG40198210-198508

main82131-40011iVG40198508-198709

82141WIRE, INSTRUMENT PANEL

main82141-40010iVG40198210-198709

82210DFUSIBLE LINK

main90982-08201iVG40198210-198709

82210EFUSIBLE LINK

main90982-08124iVG40198210-198709

main90982-08125iVG40198210-198709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906005

main90119-06005

9011908063

main90119-08063

9165140610

main91651-40610

14 parts on this diagram · 4 diagrams in section
