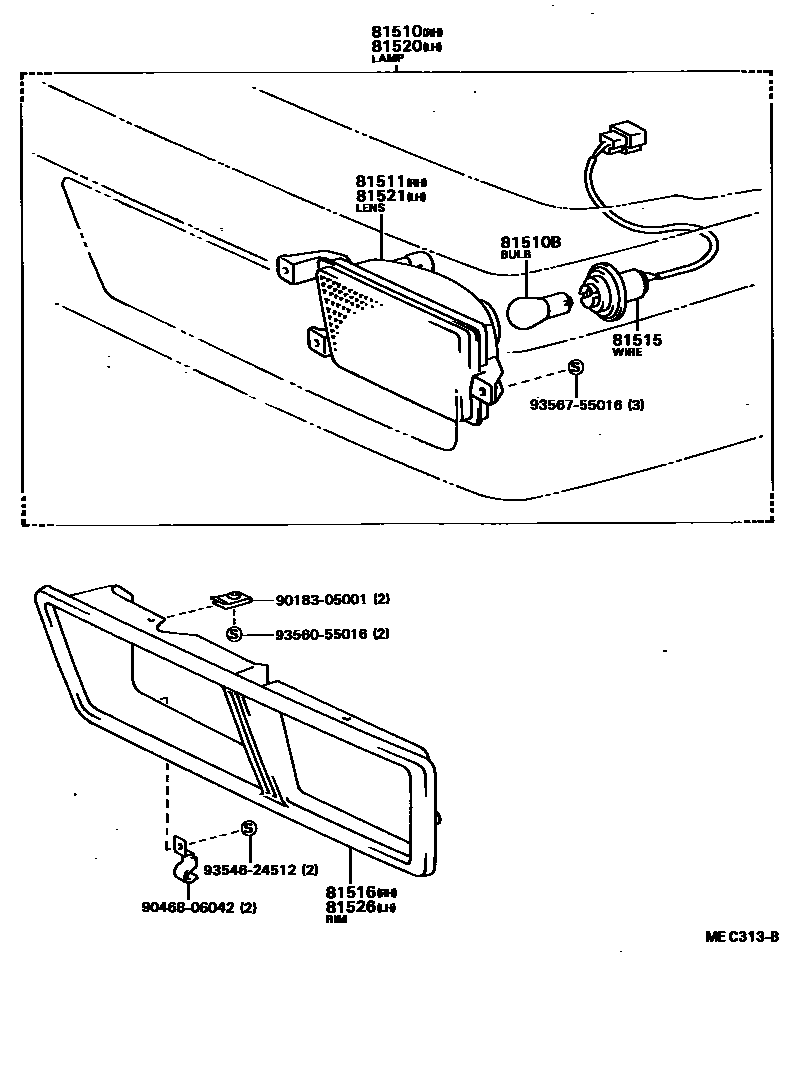

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-49035iVG40198210-198709

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11230×2iVG40198210-198709

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-40040iVG40198210-198709

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-40040×2iVG40198210-198709

81516RIM, FRONT TURN SIGNAL LAMP, RH

main81516-91401iVG40198210-198709

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-49015iVG40198210-198709

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-40020iVG40198210-198709

81526RIM, FRONT TURN SIGNAL LAMP, LH

main81526-91401iVG40198210-198709

9018305001

main90183-05001

9046806042

main90468-06042

9354624512

main93546-24512

9356055016

main93560-55016

9356755016

main93567-55016

13 parts on this diagram · 1 diagram in section
