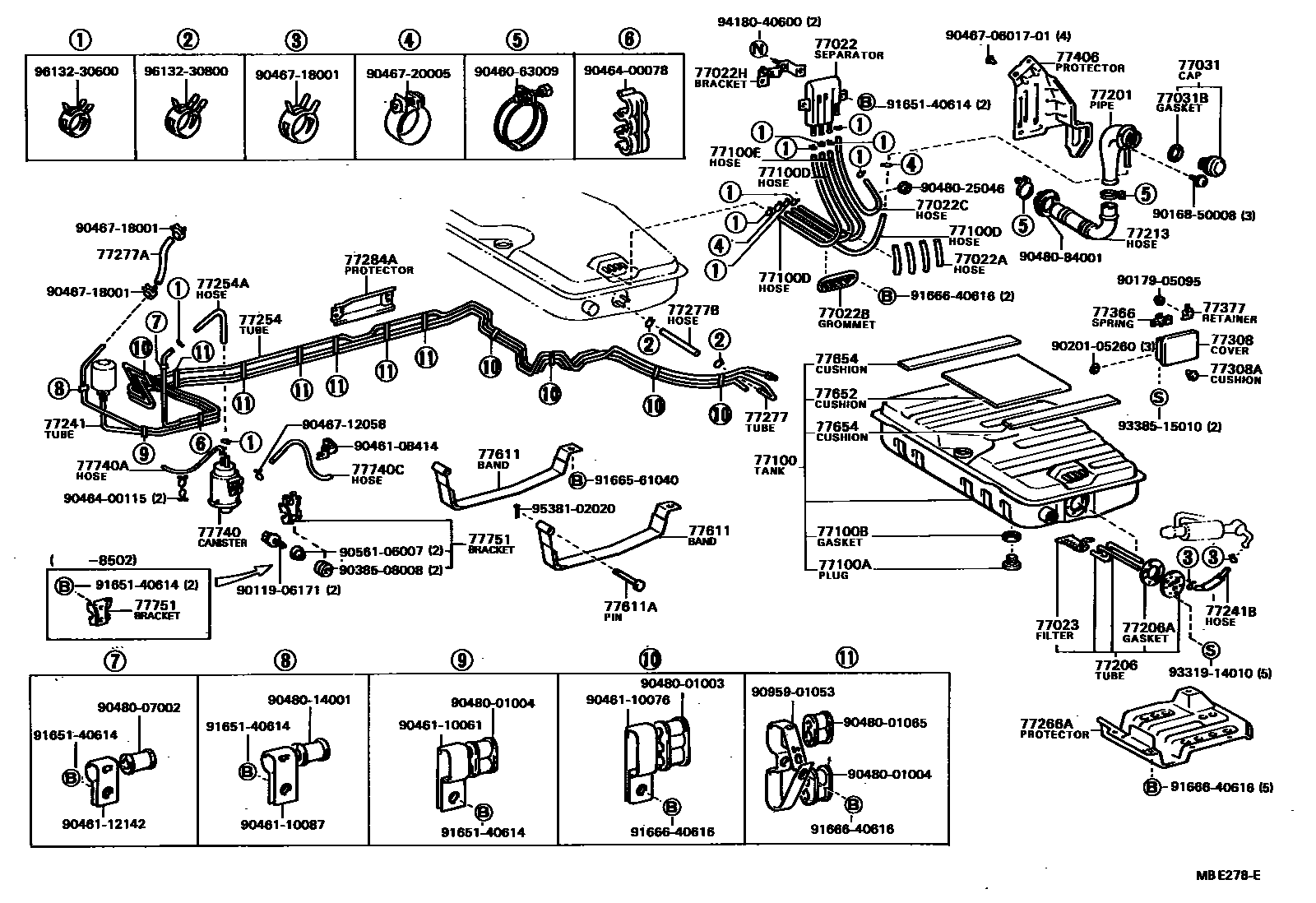

FUEL TANK & TUBE

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77271-13010iVG40198210-198709

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main90445-20025×4iVG40198210-198709

77022BGROMMET(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE)

main77290-91600iVG40198210-198709

77022CHOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06080iVG40198210-198702

*H,L=700

main95333-06080iVG40198702-198709

*H,L=700

77022HBRACKET, FUEL VAPOR LIQUID SEPARATOR, FRONT

main61781-91401iVG40198210-198709

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-30010iVG40198210-198709

77031CAP ASSY, FUEL TANK

main77310-16010iVG40198210-198709

77031BGASKET (FOR FUEL TANK CAP)

main77316-16010iVG40198210-198709

77100TANK ASSY, FUEL

main77001-91495iVG40198210-198709

77100APLUG(FOR FUEL TANK)

main90341-20004iVG40198504-198709

main90341-24036iVG40198210-198504

77100BGASKET(FOR FUEL TANK)

main90430-20007iVG40198504-198709

main90430-24047iVG40198210-198504

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-12113×2iVG40198210-198709

main90445-22020iVG40198210-198709

77100EHOSE, FUEL, NO.2(FOR FUEL TANK)

main90445-12114iVG40198210-198709

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-91404iVG40198210-198709

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-91401iVG40198210-198709

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iVG40198210-198709

77213HOSE, FUEL TANK SUB INLET

main77213-91404iVG40198210-198709

77241TUBE, FUEL MAIN, NO.1

main77251-91408iVG40198210-198709

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main77049-91401iVG40198210-198709

77254TUBE, FUEL EMISSION, NO.1

main77261-91403iVG40198210-198709

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main77249-91401iVG40198210-198709

77266APROTECTOR, FUEL TUBE, NO.1

main77038-91401iVG40198210-198709

77277TUBE, FUEL RETURN, NO.1

main77255-91403iVG40198210-198709

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main95335-08032iVG40198210-198610

main95336-08032iVG40198610-198702

main95336-08040iVG40198702-198709

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-08020iVG40198210-198702

main95333-08020iVG40198702-198709

77284APROTECTOR, FUEL TUBE, NO.3

main77284-91401iVG40198210-198709

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-91401iVG40198210-198709

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-06026×2iVG40198210-198709

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iVG40198210-198709

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iVG40198210-198709

77406PROTECTOR SUB-ASSY, FUEL TUBE

main77406-91401iVG40198210-198709

77611BAND, FUEL TANK

main77601-91403×2iVG40198210-198709

77611APIN (FOR FUEL TANK BAND)

main90240-08118×2iVG40198210-198709

77652CUSHION, FUEL TANK, NO.1

main77651-91401iVG40198210-198709

77654CUSHION, FUEL TANK, NO.2

main77652-91401×2iVG40198210-198709

77740CANISTER ASSY, CHARCOAL

main77704-40030iVG40198210-198709

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-10460iVG40198210-198709

*H,L=540

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main90445-12116iVG40198210-198709

77751BRACKET, CHARCOAL CANISTER BASE

main77750-40010iVG40198502-198709

main77751-14090iVG40198210-198502

9011906171

main90119-06171

9016850008

main90168-50008

9017905095

main90179-05095

9020105260

main90201-05260

9038508008

main90385-08008

9046063009

main90460-63009

9046108414

main90461-08414

9046110061

main90461-10061

9046110076

main90461-10076

9046110087

main90461-10087

9046112142

main90461-12142

9046400078

main90464-00078

9046400115

main90464-00115

904670601701

main90467-0601701

9046712058

main90467-12058

9046718001

main90467-18001

9046720005

main90467-20005

9048001003

main90480-01003

9048001004

main90480-01004

9048001065

main90480-01065

9048007002

main90480-07002

9048014001

main90480-14001

9048025046

main90480-25046

9048084001

main90480-84001

9056106007

main90561-06007

9095901053

main90959-01053

9165140614

main91651-40614

9166561040

main91665-61040

9166640616

main91666-40616

9331914010

main93319-14010

9338515010

main93385-15010

9418040600

main94180-40600

9538102020

main95381-02020

9613230600

main96132-30600

9613230800

main96132-30800

74 parts on this diagram · 1 diagram in section
