SEAT BELT & CHILD RESTRAINT SEAT
73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,DARK BROWN,TRIM4#
73173COVER, FRONT SEAT BELT HOLE, RH
73174COVER, FRONT SEAT BELT HOLE, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,D BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,DARK BROWN,TRIM4#
73210BCAP (FOR FRONT SEAT OUTER BELT)
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,D BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,DARK BROWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
SEPARATE SEAT,GRAY,GRAY,TRIM1#
SEPARATE SEAT,BLUE,BLUE,TRIM8#
SEPARATE SEAT,BEIGE,BEIGE,TRIM4#
SEPARATE SEAT,DARK BROWN,BROWN,TRIM4#
SEPARATE SEAT,GRAY,GRAY,TRIM1#
SEPARATE SEAT,BLUE,BLUE,TRIM8#
SEPARATE SEAT,BEIGE,BEIGE,TRIM4#
SEPARATE SEAT,DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,DARK BROWN,TRIM4#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,DARK BROWN,TRIM4#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,D BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,DARK BROWN,TRIM4#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,D BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,DARK BROWN,TRIM4#
73373COVER, REAR SEAT SHOULDER BELT
GRAY,GRAY,TRIM1#
LIGHT BLUE,BLUE,TRIM8#
IVORY,IVORY,TRIM4#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
9165161022
main91651-61022

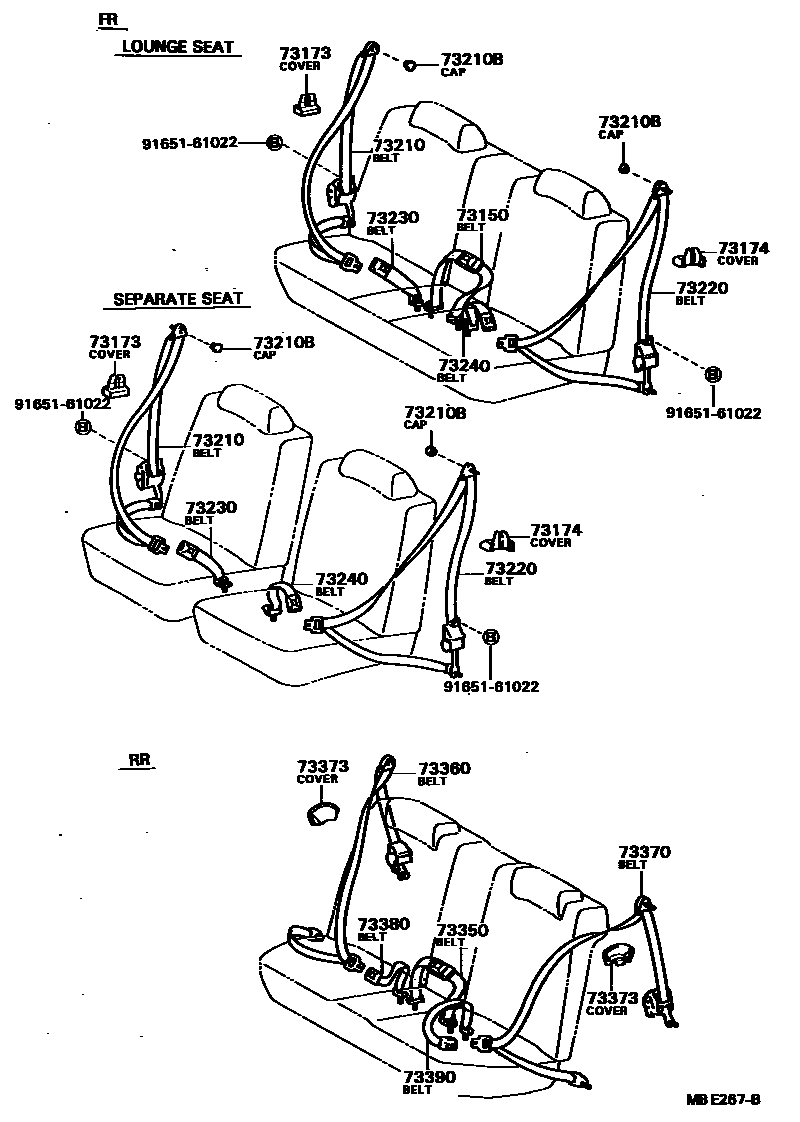

15 parts on this diagram · 1 diagram in section
