REAR SEAT & SEAT TRACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
71250BBRACKET ASSY, SEAT, OUTER RH
71260BRACKET ASSY, SEAT, OUTER LH
71280BRACKET ASSY, SEAT, INNER LH
LOUNGE SEAT

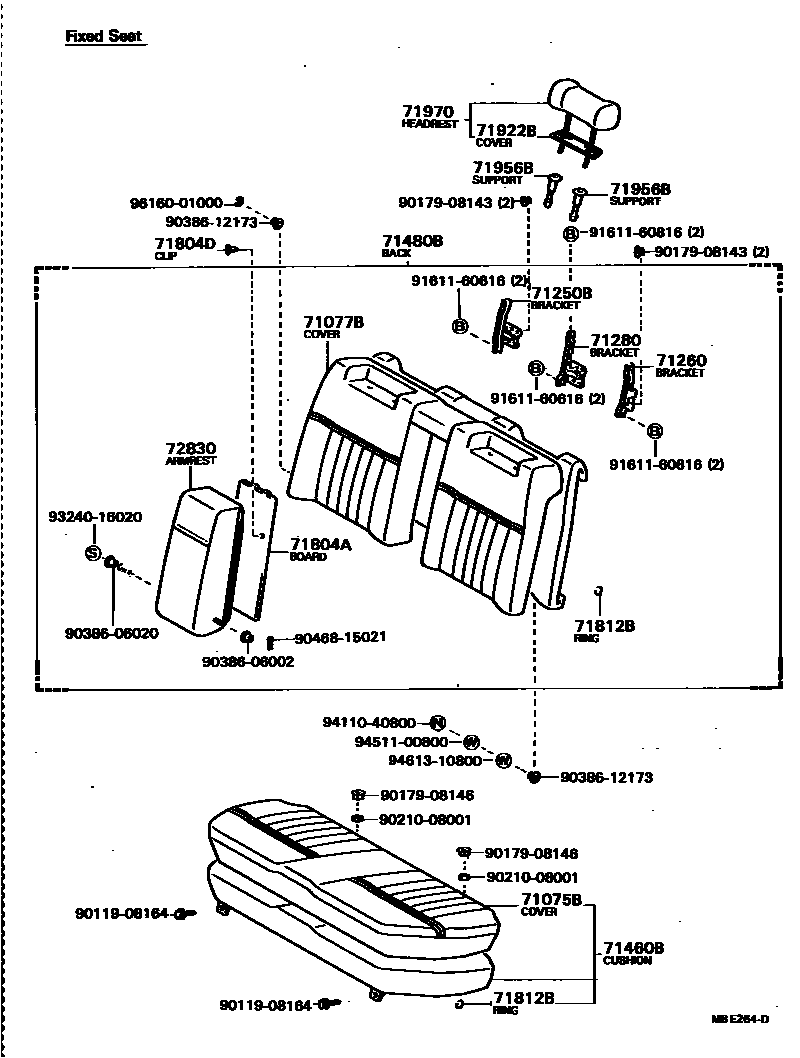

FIXED SEAT
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
71804ABOARD SUB-ASSY, REAR SEAT ARMREST HOLE
MOQUTTE,GRAY,GRAY,TRIM1#
MOQUTTE,BLUE,BLUE,TRIM8#
MOQUTTE,BEIGE,BEIGE,TRIM4#
LOUNGE SEAT,GRAY,GRAY,TRIM1#
LOUNGE SEAT,BLUE,BLUE,TRIM8#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,DARK BROWN,BROWN,TRIM4#
FIXED SEAT,GRAY,GRAY,TRIM1#
FIXED SEAT,BLUE,BLUE,TRIM8#
MOQUTTE,GRAY,GRAY,TRIM1#
MOQUTTE,BLUE,BLUE,TRIM8#
MOQUTTE,BEIGE,BEIGE,TRIM4#
LOUNGE SEAT,GRAY,GRAY,TRIM1#
LOUNGE SEAT,BLUE,BLUE,TRIM8#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,DARK BROWN,BROWN,TRIM4#
FIXED SEAT,GRAY,GRAY,TRIM1#
FIXED SEAT,BLUE,BLUE,TRIM8#
71804DCLIP(FOR REAR SEAT ARMREST HOLE BOARD)
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
71812BCLIP(FOR REAR SEAT CUSHION COVER)
71922BCOVER, REAR SEAT HEADREST UNDER
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
71956BSUPPORT, REAR SEAT HEADREST
71970HEADREST ASSY, REAR SEAT
MOQUTTE,GRAY,GRAY,TRIM1#
MOQUTTE,BLUE,BLUE,TRIM8#
MOQUTTE,BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
MOQUTTE,GRAY,GRAY,TRIM1#
MOQUTTE,BLUE,BLUE,TRIM8#
MOQUTTE,BEIGE,BEIGE,TRIM4#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,DARK BROWN,DARK BROWN,TRIM4#
MOQUTTE,GRAY,GRAY,TRIM1#
MOQUTTE,BLUE,BLUE,TRIM8#
MOQUTTE,BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,DARK BROWN,DARK BROWN,TRIM4#
72830ARMREST ASSY, REAR SEAT, CENTER
MOQUTTE,GRAY,GRAY,TRIM1#
MOQUTTE,BLUE,BLUE,TRIM8#
MOQUTTE,BEIGE,BEIGE,TRIM4#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,DARK BROWN,DARK BROWN,TRIM4#
MOQUTTE,GRAY,GRAY,TRIM1#
MOQUTTE,BLUE,BLUE,TRIM8#
MOQUTTE,BEIGE,BEIGE,TRIM4#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,DARK BROWN,BROWN,TRIM4#
MOQUTTE,GRAY,GRAY,TRIM1#
MOQUTTE,BLUE,BLUE,TRIM8#
MOQUTTE,BEIGE,BEIGE,TRIM4#
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,DARK BROWN,BROWN,TRIM4#
MOQUTTE,GRAY,GRAY,TRIM1#
MOQUTTE,BLUE,BLUE,TRIM8#
MOQUTTE,BEIGE,BEIGE,TRIM4#
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,DARK BROWN,DARK BROWN,TRIM4#
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
KNIT,GRAY,GRAY,TRIM1#
KNIT,BLUE,BLUE,TRIM8#
9011908164
main90119-08164
9017908143
main90179-08143
9017908146
main90179-08146
9021008001
main90210-08001
9038606002
main90386-06002
9038606020
main90386-06020
9038612173
main90386-12173
9046815021
main90468-15021
9161160616
main91611-60616
9161160816
main91611-60816
9324016020
main93240-16020
9411040800
main94110-40800
9451100800
main94511-00800
9461310800
main94613-10800
9616001000
main96160-01000
29 parts on this diagram · 3 diagrams in section
