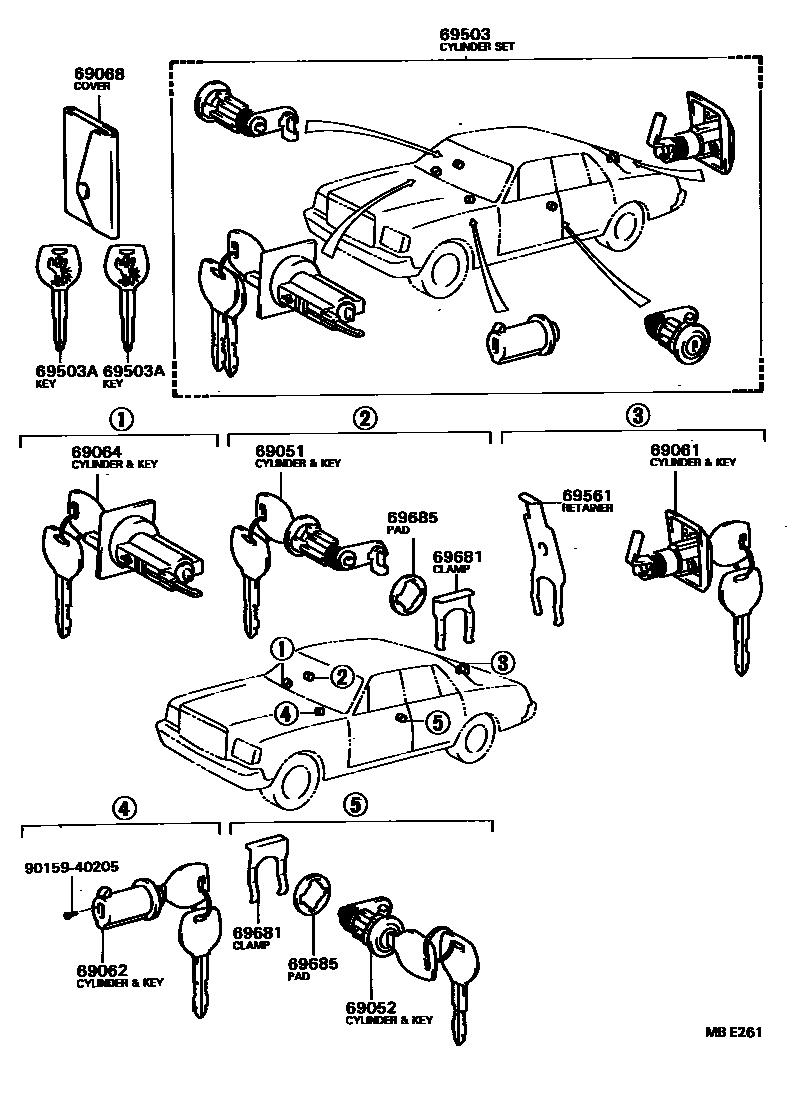

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
sub69051-40040
69052CYLINDER & KEY SET, DOOR LOCK, LH
sub69052-40040
69061CYLINDER & KEY SET, LUGGAGE LOCK
sub69055-40020
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
sub69056-40020
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
69068COVER SUB-ASSY, KEY
69503CYLINDER SET, LOCK
69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
69681CLAMP, DOOR LOCK CYLINDER & SLEEVE
69685PAD, LOCK CYLINDER
9015940205
main90159-40205
12 parts on this diagram · 1 diagram in section
