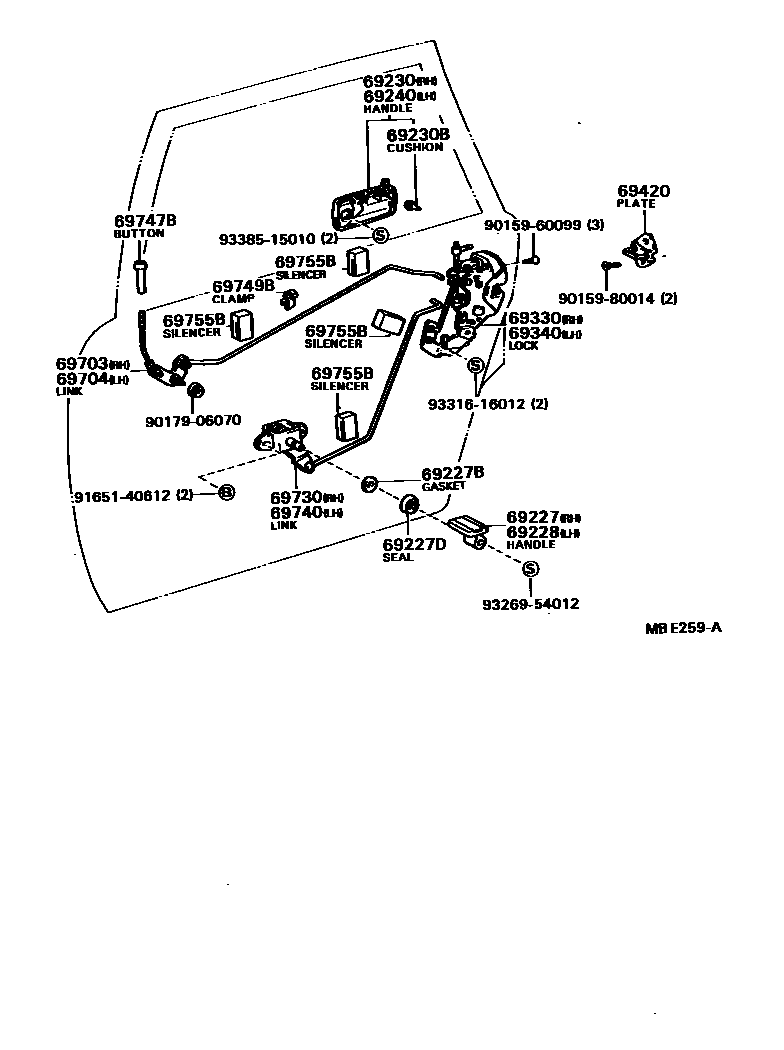

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69206-91401iVG40198210-198709

69227BGASKET(FOR REAR DOOR INSIDE HANDLE)

main90430-11136×2iVG40198210-198709

69227DSEAL(FOR REAR DOOR INSIDE HANDLE)

main69265-91401×2iVG40198210-198709

69228HANDLE, REAR DOOR INSIDE, LH

main69207-91402iVG40198210-198709

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-40030iVG40198210-198709

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021×2iVG40198210-198709

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-40030iVG40198210-198709

69330LOCK ASSY, REAR DOOR, RH

main69330-40070iVG40198210-198709

69340LOCK ASSY, REAR DOOR, LH

main69340-40070iVG40198210-198709

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-12040×2iVG40198210-198709

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-40040iVG40198210-198709

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-40030iVG40198210-198709

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69730-40030iVG40198210-198709

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69740-40030iVG40198210-198709

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69077-91401×2iVG40198508-198709

main69770-91401×2iVG40198210-198508

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30020×2iVG40198210-198709

69755BSILENCER, REAR DOOR LOCK LINK

main69759-30021×8iVG40198210-198709

9015960099

main90159-60099

9015980014

main90159-80014

9017906070

main90179-06070

9165140612

main91651-40612

9326954012

main93269-54012

9331616012

main93316-16012

9338515010

main93385-15010

24 parts on this diagram · 1 diagram in section
