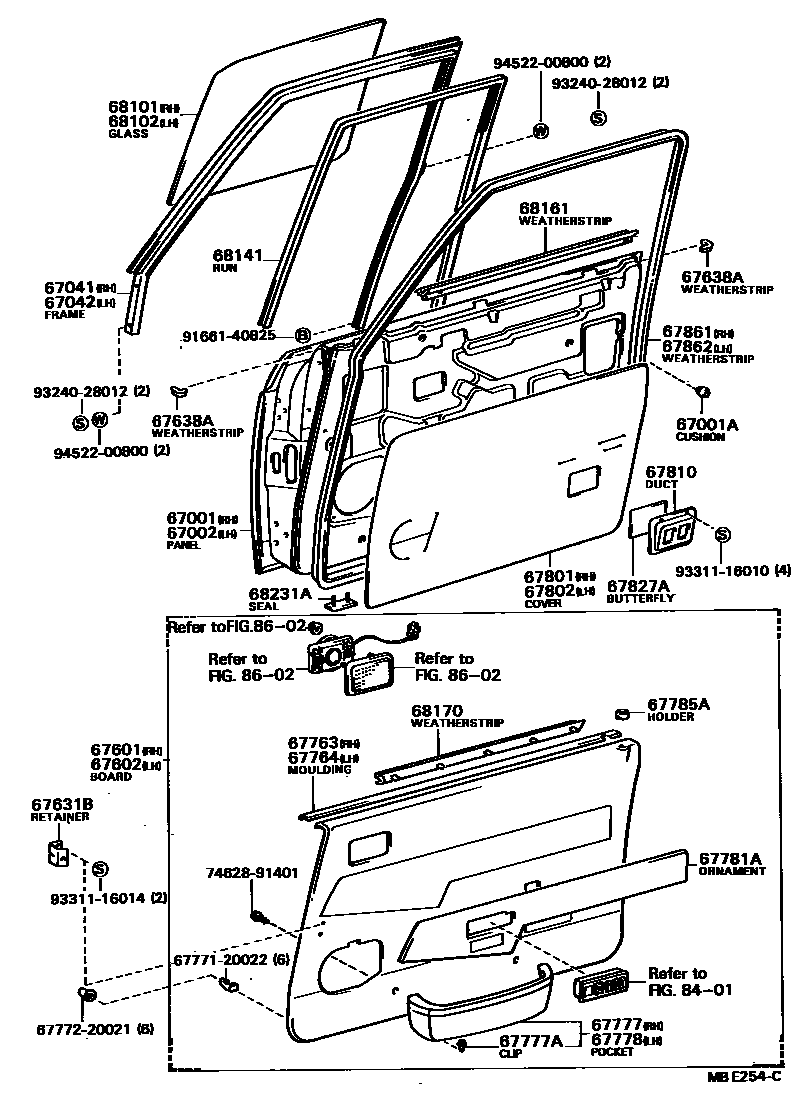

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-91418iVG40198210-198709

67001ACUSHION, FRONT DOOR PANEL

main90541-09033×2iVG40198210-198709

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-91418iVG40198210-198709

67041FRAME SUB-ASSY, FRONT DOOR WINDOW, RH

main67041-91403iVG40198210-198709

67042FRAME SUB-ASSY, FRONT DOOR WINDOW, LH

main67042-91403iVG40198210-198709

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-91423-03iVG40..E198210-198508

MOQUTTE,GRAY,GRAY,TRIM1#

main67610-91423-04iVG40..E198210-198508

MOQUTTE,BLUE,BLUE,TRIM8#

main67610-91423-05iVG40..E198210-198508

MOQUTTE,BEIGE,BEIGE,TRIM4#

main67610-91424-03iVG40..D198210-198508

GRAY,GRAY,TRIM1#

main67610-91424-04iVG40..D198210-198508

BLUE,BLUE,TRIM8#

main67610-91425-05iVG40..E198210-198508

LEATHER,BEIGE,BEIGE,TRIM4#

main67610-91425-06iVG40..E198210-198508

LEATHER,DARK BROWN,BROWN,TRIM4#

main67610-91426-03iVG40..D198210-198508

W/SPEAKER,GRAY,GRAY,TRIM1#

main67610-91426-04iVG40..D198210-198508

W/SPEAKER,BLUE,BLUE,TRIM8#

main67610-91427-03iVG40..E198210-198508

MOQUTTE,W/*SH,GRAY,GRAY,TRIM1#

main67610-91427-04iVG40..E198210-198508

MOQUTTE,W/*SH,BLUE,BLUE,TRIM8#

main67610-91427-05iVG40..E198210-198508

MOQUTTE,W/*SH,BEIGE,BEIGE,TRIM4#

main67610-91428-05iVG40..E198210-198508

LEATHER,W/*SH,BEIGE,BEIGE,TRIM4#

main67610-91428-06iVG40..E198210-198508

LEATHER,W/*SH,DARK BROWN,BROWN,TRIM4#

main67610-91432-03iVG40..E198508-198709

MOQUTTE,GRAY,GRAY,TRIM1#

main67610-91432-04iVG40..E198508-198709

MOQUTTE,BLUE,BLUE,TRIM8#

main67610-91432-05iVG40..E198508-198709

MOQUTTE,BEIGE,BEIGE,TRIM4#

main67610-91433-03iVG40..D198508-198709

GRAY,GRAY,TRIM1#

main67610-91433-04iVG40..D198508-198709

BLUE,BLUE,TRIM8#

main67610-91434-05iVG40..E198508-198709

LEATHER,BEIGE,BEIGE,TRIM4#

main67610-91434-06iVG40..E198508-198709

LEATHER,DARK BROWN,BROWN,TRIM4#

main67610-91435-03iVG40..D198508-198709

W/SPEAKER,GRAY,GRAY,TRIM1#

main67610-91435-04iVG40..D198508-198709

W/SPEAKER,BLUE,BLUE,TRIM8#

main67610-91436-03iVG40..E198508-198709

MOQUTTE,W/*SH,GRAY,GRAY,TRIM1#

main67610-91436-04iVG40..E198508-198709

MOQUTTE,W/*SH,BLUE,BLUE,TRIM8#

main67610-91436-05iVG40..E198508-198709

MOQUTTE,W/*SH,BEIGE,BEIGE,TRIM4#

main67610-91437-05iVG40..E198508-198709

LEATHER,W/*SH,BEIGE,BEIGE,TRIM4#

main67610-91437-06iVG40..E198508-198709

LEATHER,W/*SH,DARK BROWN,BROWN,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-91426-03iVG40..E198210-198508

MOQUTTE,GRAY,GRAY,TRIM1#

main67620-91426-04iVG40..E198210-198508

MOQUTTE,BLUE,BLUE,TRIM8#

main67620-91426-05iVG40..E198210-198508

MOQUTTE,BEIGE,BEIGE,TRIM4#

main67620-91427-03iVG40..D198210-198508

GRAY,GRAY,TRIM1#

main67620-91427-04iVG40..D198210-198508

BLUE,BLUE,TRIM8#

main67620-91428-05iVG40..E198210-198508

LEATHER,BEIGE,BEIGE,TRIM4#

main67620-91428-06iVG40..E198210-198508

LEATHER,DARK BROWN,BROWN,TRIM4#

main67620-91429-03iVG40..D198210-198508

W/SPEAKER,GRAY,GRAY,TRIM1#

main67620-91429-04iVG40..D198210-198508

W/SPEAKER,BLUE,BLUE,TRIM8#

main67620-91430-03iVG40..E198210-198508

MOQUTTE,W/*SH,GRAY,GRAY,TRIM1#

main67620-91430-04iVG40..E198210-198508

MOQUTTE,W/*SH,BLUE,BLUE,TRIM8#

main67620-91430-05iVG40..E198210-198508

MOQUTTE,W/*SH,BEIGE,BEIGE,TRIM4#

main67620-91431-05iVG40..E198210-198508

LEATHER,W/*SH,BEIGE,BEIGE,TRIM4#

main67620-91431-06iVG40..E198210-198508

LEATHER,W/*SH,DARK BROWN,BROWN,TRIM4#

main67620-91435-03iVG40..E198508-198709

MOQUTTE,GRAY,GRAY,TRIM1#

main67620-91435-04iVG40..E198508-198709

MOQUTTE,BLUE,BLUE,TRIM8#

main67620-91435-05iVG40..E198508-198709

MOQUTTE,BEIGE,BEIGE,TRIM4#

main67620-91436-03iVG40..D198508-198709

GRAY,GRAY,TRIM1#

main67620-91436-04iVG40..D198508-198709

BLUE,BLUE,TRIM8#

main67620-91437-05iVG40..E198508-198709

LEATHER,BEIGE,BEIGE,TRIM4#

main67620-91437-06iVG40..E198508-198709

LEATHER,DARK BROWN,BROWN,TRIM4#

main67620-91438-03iVG40..D198508-198709

W/SPEAKER,GRAY,GRAY,TRIM1#

main67620-91438-04iVG40..D198508-198709

W/SPEAKER,BLUE,BLUE,TRIM8#

main67620-91439-03iVG40..E198508-198709

MOQUTTE,W/*SH,GRAY,GRAY,TRIM1#

main67620-91439-04iVG40..E198508-198709

MOQUTTE,W/*SH,BLUE,BLUE,TRIM8#

main67620-91439-05iVG40..E198508-198709

MOQUTTE,W/*SH,BEIGE,BEIGE,TRIM4#

main67620-91440-05iVG40..E198508-198709

LEATHER,W/*SH,BEIGE,BEIGE,TRIM4#

main67620-91440-06iVG40..E198508-198709

LEATHER,W/*SH,DARK BROWN,BROWN,TRIM4#

67631BRETAINER, FRONT DOOR TRIM, UPPER

main67631-91410×2iVG40198210-198709

67638AWEATHERSTRIP, FRONT DOOR CORNER

main67638-91402×4iVG40198210-198709

67763MOULDING, FRONT DOOR TRIM, UPPER RH

main67765-91404iVG40198210-198709

67764MOULDING, FRONT DOOR TRIM, UPPER LH

main67766-91404iVG40198210-198709

67777POCKET, FRONT DOOR TRIM, RH

main67770-91401-03iVG40..E198508-198709

GRAY,GRAY,TRIM1#

main67770-91401-04iVG40..E198508-198709

BLUE,BLUE,TRIM8#

main67770-91401-06iVG40..E198508-198709

DARK BROWN,DARK BROWN,TRIM4#

main67770-91402-03iVG40..D198508-198709

GRAY,GRAY,TRIM1#

main67770-91402-04iVG40..D198508-198709

BLUE,BLUE,TRIM8#

67777ACLIP, FRONT DOOR POCKET

main90467-06017-15×4iVG40..E198508-198709

BEIGE,BEIGE,TRIM4#

main90467-06017-16×4iVG40..E198508-198709

DARK BROWN,BROWN,TRIM4#

main90467-06017-33×4iVG40198508-198709

GRAY,GRAY,TRIM1#

main90467-06017-44×4iVG40198508-198709

BLUE,BLUE,TRIM8#

67778POCKET, FRONT DOOR TRIM, LH

main67770-91401-03iVG40..E198508-198709

GRAY,GRAY,TRIM1#

main67770-91401-04iVG40..E198508-198709

BLUE,BLUE,TRIM8#

main67770-91401-06iVG40..E198508-198709

DARK BROWN,DARK BROWN,TRIM4#

main67770-91402-03iVG40..D198508-198709

GRAY,GRAY,TRIM1#

main67770-91402-04iVG40..D198508-198709

BLUE,BLUE,TRIM8#

67781AORNAMENT, FRONT DOOR TRIM

main67705-91403iVG40198210-198709

RH

main67706-91403iVG40198210-198709

LH

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main67785-91401×2iVG40198210-198709

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67801-91402iVG40198210-198709

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67801-91402iVG40198210-198709

67810DUCT ASSY, FRONT DOOR VENT

main67810-91401×2iVG40198210-198709

67827ABUTTERFLY, FRONT DOOR VENT

main67827-91401×2iVG40198210-198709

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-91405iVG40198210-198709

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-91405iVG40198210-198709

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-91404iVG40198210-198709

main68111-91405iVG40..E198210-198709

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-91404iVG40198210-198709

main68112-91405iVG40..E198210-198709

68141RUN, FRONT DOOR GLASS

main68141-91405×2iVG40198210-198310

main68141-91406×2iVG40198310-198709

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-91404×2iVG40198210-198709

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-91408×2iVG40198210-198709

68231ASEAL, DOOR DRAIN HOLE DUST(FOR FRONT DOOR)

main68231-91401×4iVG40198210-198709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8602SPEAKER

→ Go to FIG 86-02

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

7462891401SCREW, ASSIST STRAP, RH (FOR REAR SEAT)

main74628-91401

9166140825

main91661-40825

9324028012

main93240-28012

9331116010

main93311-16010

9331116014

main93311-16014

9452200800

main94522-00800

38 parts on this diagram · 1 diagram in section
