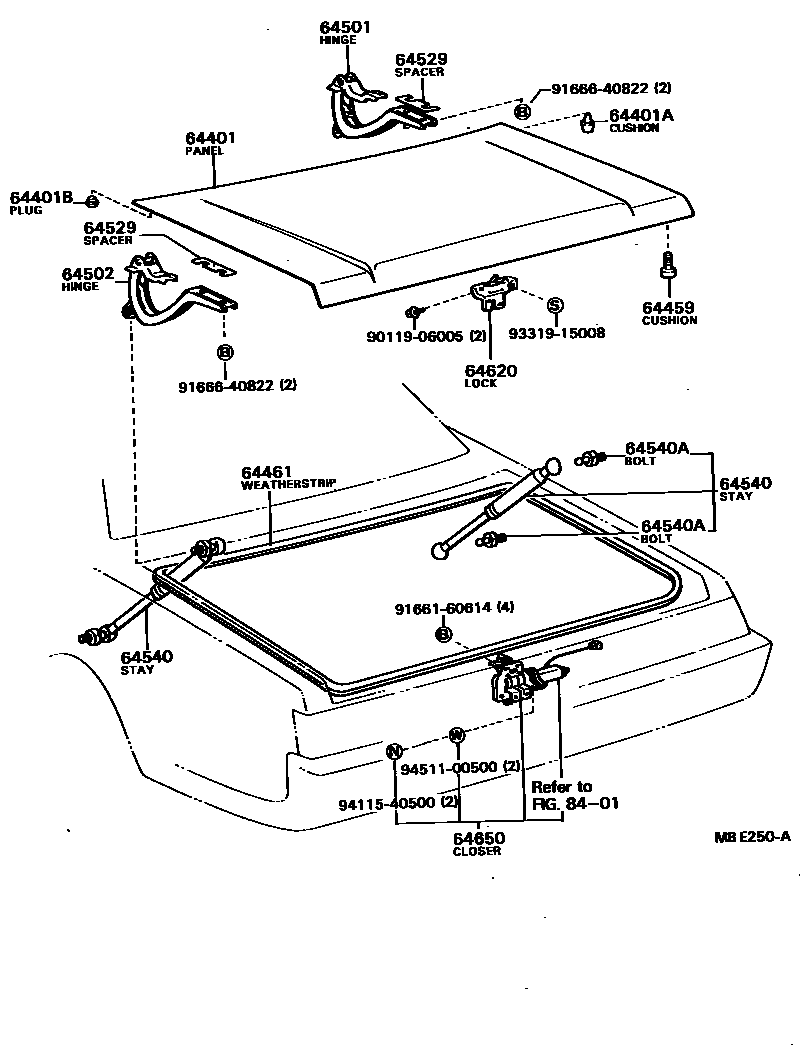

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-91409iVG40198210-198709

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09126×2iVG40198210-198709

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01058×2iVG40198210-198709

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-91401×2iVG40198210-198709

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-91403iVG40198210-198709

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-91402iVG40198210-198709

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-91402iVG40198210-198709

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010×4iVG40198210-198709

64540STAY ASSY(FOR LUGGAGE COMPARTMENT DOOR)

main64540-49015×2iVG40198210-198709

64540ABOLT(FOR LUGGAGE COMPARTMENT DOOR STAY)

main68961-12010×4iVG40198303-198709

main68961-14010×4iVG40198210-198303

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-91401iVG40198210-198709

64650CLOSER ASSY, LUGGAGE DOOR

main64650-40020iVG40198210-198709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906005

main90119-06005

9166160614

main91661-60614

9166640822

main91666-40822

9331915008

main93319-15008

9411540500

main94115-40500

9451100500

main94511-00500

19 parts on this diagram · 1 diagram in section
