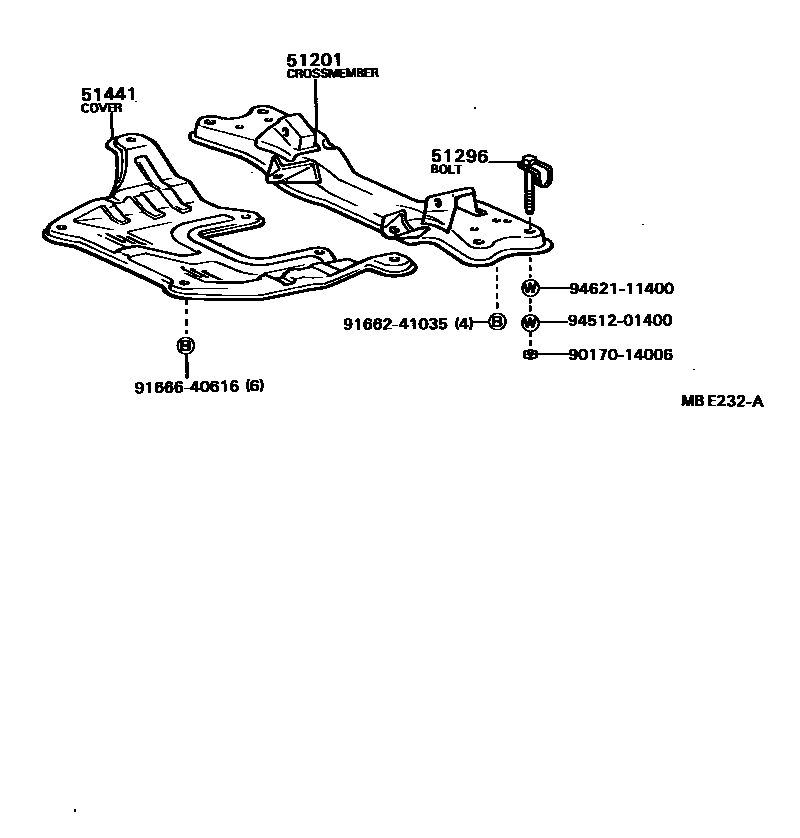

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-91401iVG40198210-198709

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-91401×4iVG40198210-198709

51441COVER, ENGINE UNDER, NO.1

main51441-91401iVG40198210-198709

9017014006

main90170-14006

9166241035

main91662-41035

9166640616

main91666-40616

9451201400

main94512-01400

9462111400

main94621-11400

8 parts on this diagram · 1 diagram in section
