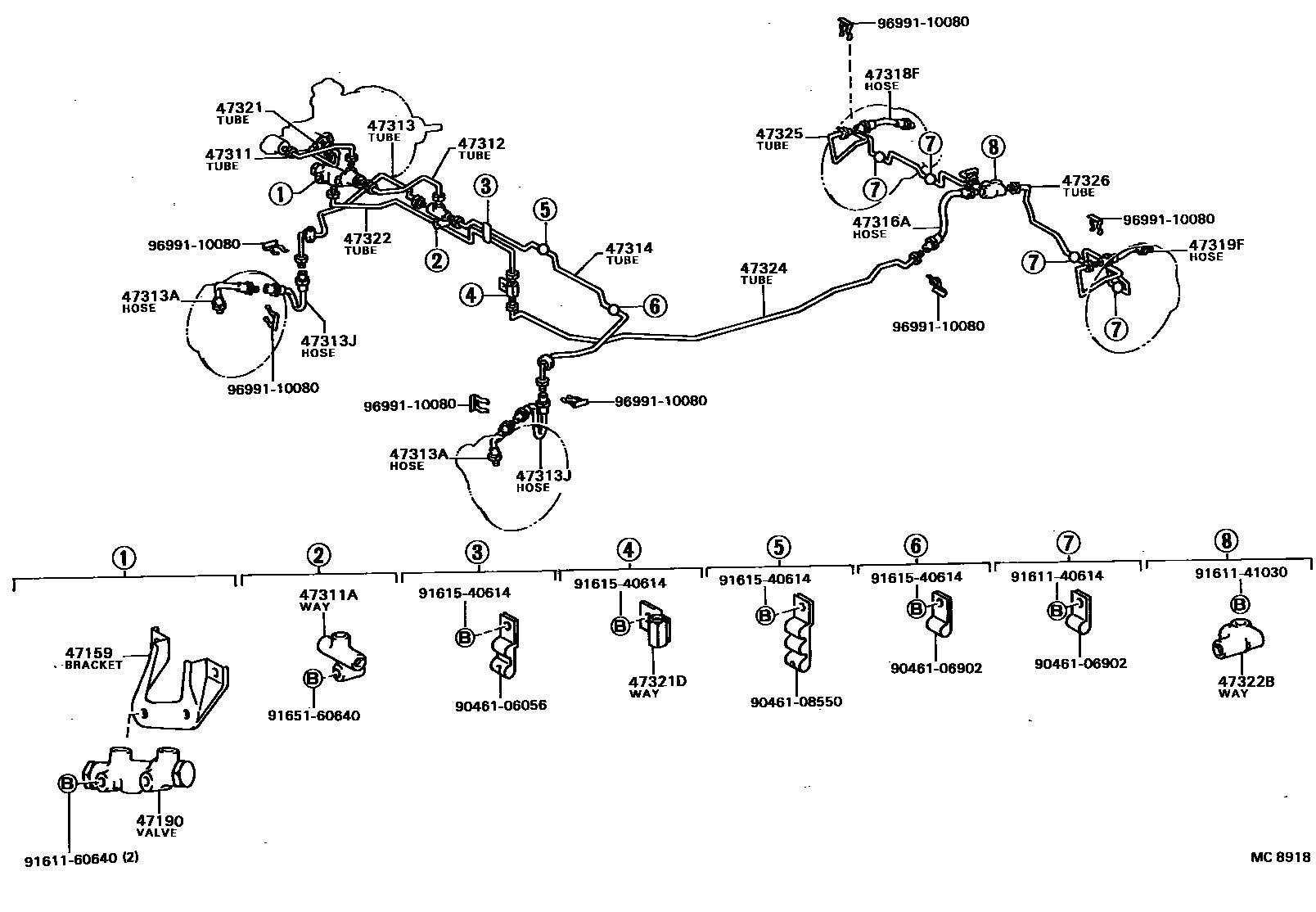

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47159BRACKET, PROPORTIONING VALVE

main47159-30110iVG40198210-198709

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-14020iVG40198210-198709

47311TUBE, FRONT BRAKE, NO.1

main47311-30320iVG40198210-198709

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10002iVG40198210-198709

47312TUBE, FRONT BRAKE, NO.2

main47312-40030iVG40198210-198709

47313TUBE, FRONT BRAKE, NO.3

main47313-40040iVG40198210-198709

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96960-39905iVG40198210-198709

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main96950-32905iVG40198210-198709

47314TUBE, FRONT BRAKE, NO.4

main47314-40050iVG40198210-198709

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32605iVG40198210-198709

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96940-32105iVG40198210-198709

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96940-32105iVG40198210-198709

47321TUBE, REAR BRAKE, NO.1

main47321-30040iVG40198210-198709

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10041iVG40198210-198709

47322TUBE, REAR BRAKE, NO.2

main47315-40030iVG40..D198210-198709

main47315-40040iVG40..E198210-198709

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10086iVG40198210-198709

47324TUBE, REAR BRAKE, NO.4

main47322-40010iVG40198210-198709

47325TUBE, REAR BRAKE, NO.5

main47323-40011iVG40198210-198709

47326TUBE, REAR BRAKE, NO.6

main47324-40010iVG40198210-198709

9046106056

main90461-06056

9046106902

main90461-06902

9046108550

main90461-08550

9161140614

main91611-40614

9161141030

main91611-41030

9161160640

main91611-60640

9161540614

main91615-40614

9165160640

main91651-60640

9699110080

main96991-10080

28 parts on this diagram · 3 diagrams in section
