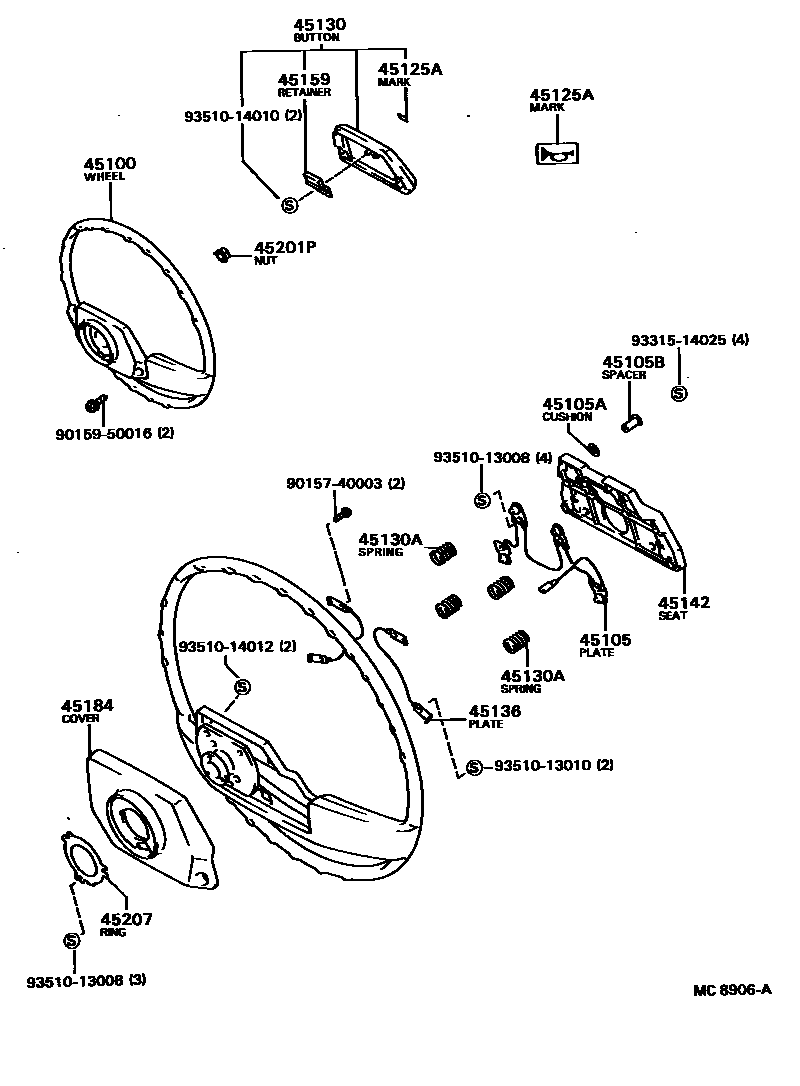

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-40060-03iVG40198210-198709

main45100-40060-04iVG40198210-198709

main45100-40060-06iVG40..E198210-198709

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main90945-03036iVG40198210-198709

45105ACUSHION(FOR HORN BUTTON CONTACT PLATE)

main90540-08006×4iVG40198210-198709

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-04007×4iVG40198210-198709

45125AMARK, HORN

main45129-30120iVG40198210-198709

45130BUTTON ASSY, HORN

main45130-40020-03iVG40198210-198709

GRAY,GRAY,TRIM1#

main45130-40020-04iVG40198210-198709

BLUE,BLUE,TRIM8#

main45130-40020-06iVG40..E198210-198709

DARK BROWN,BROWN,TRIM4#

45130ASPRING, COMPRESSION(FOR HORN BUTTON)

main90501-09027×4iVG40198210-198709

45136PLATE, HORN BUTTON CONTACT

main90945-02054×2iVG40198210-198709

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-30050iVG40198210-198709

45159RETAINER, STEERING WHEEL PAD SET

main45159-30010iVG40198210-198709

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-40010-03iVG40198210-198709

GRAY,GRAY,TRIM1#

main45184-40010-04iVG40198210-198709

BLUE,BLUE,TRIM8#

main45184-40010-06iVG40..E198210-198709

DARK BROWN,BROWN,TRIM4#

45201PNUT, STEERING WHEEL SET

main90179-12086iVG40198210-198709

45207RING, HORN CONTACT

main45176-30070iVG40198210-198709

9015740003

main90157-40003

9015950016

main90159-50016

9331514025

main93315-14025

9351013008

main93510-13008

9351013010

main93510-13010

9351014010

main93510-14010

9351014012

main93510-14012

20 parts on this diagram · 1 diagram in section
