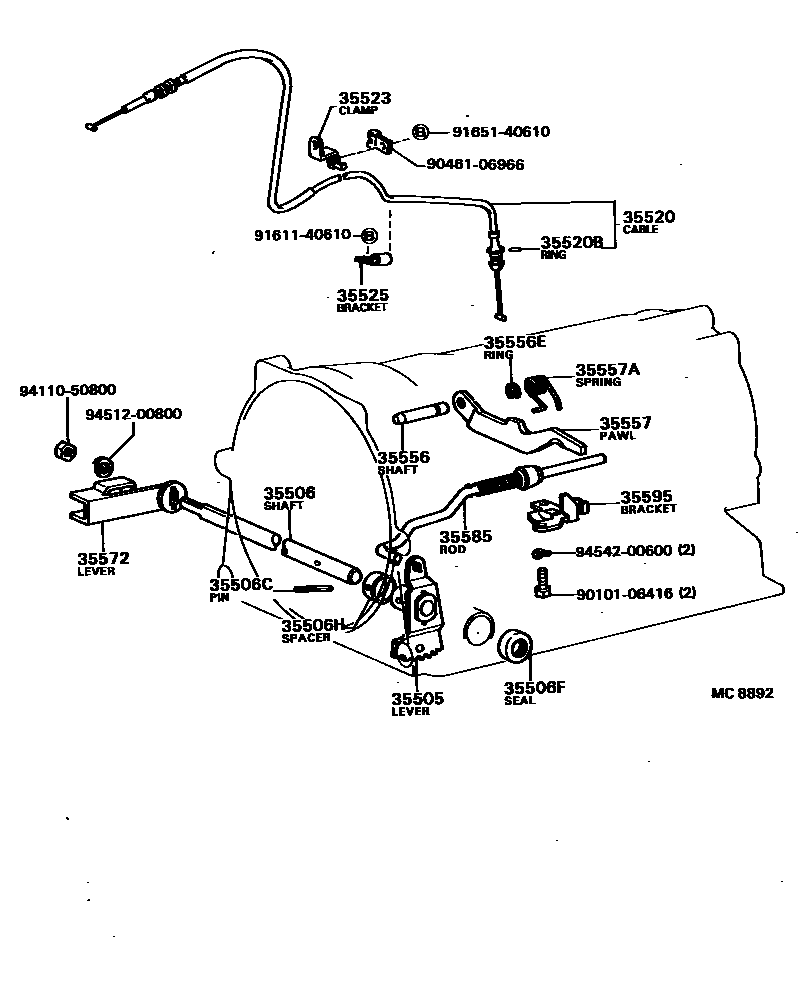

THROTTLE LINK & VALVE LEVER (ATM)

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22020iVG40198210-198709

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-40010iVG40198210-198709

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iVG40198210-198709

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11001×2iVG40198308-198709

main90311-11128×2iVG40198210-198308

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iVG40198210-198709

35520CABLE ASSY, THROTTLE

main35520-40030iVG40198210-198402

main35520-40031iVG40198402-198709

35520BRING, O(FOR THROTTLE CABLE)

main90301-09004iVG40198210-198709

35523CLAMP, THROTTLE CABLE

main35523-40030iVG40198210-198709

35525BRACKET, THROTTLE CABLE

main35525-40030iVG40198210-198709

35556SHAFT, PARKING LOCK PAWL

main35556-22010iVG40198210-198508

main35556-26010iVG40198508-198709

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iVG40198210-198709

35557PAWL, PARKING LOCK

main35557-40010iVG40198210-198709

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-25001iVG40198210-198709

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-40020iVG40198210-198709

35585ROD, PARKING LOCK

main35501-40010iVG40198210-198709

35595BRACKET, PARKING LOCK PAWL

main35595-40010iVG40198210-198709

9010106416

main90101-06416

9046106966

main90461-06966

9161140610

main91611-40610

9165140610

main91651-40610

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

23 parts on this diagram · 1 diagram in section
