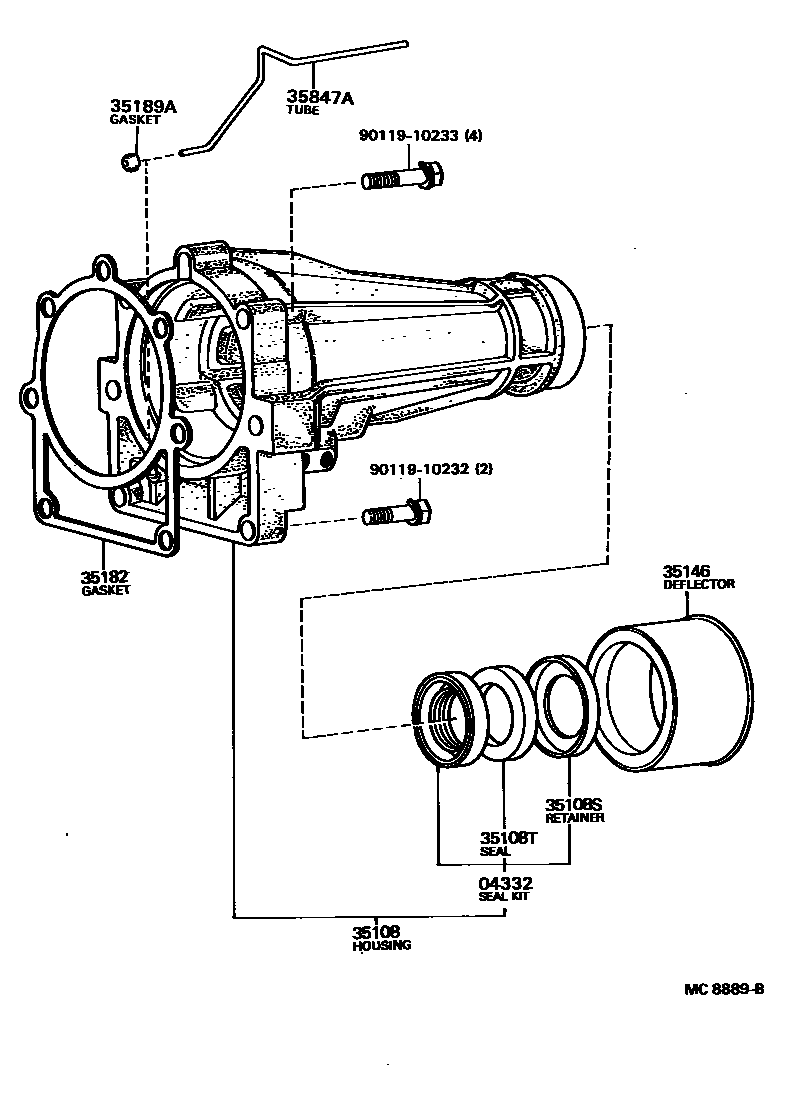

EXTENSION HOUSING (ATM)

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-40010iVG40198210-198709

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-40020iVG40198210-198410

main35108-40021iVG40198410-198709

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-40010iVG40198210-198709

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-40001iVG40198210-198709

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iVG40198210-198709

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iVG40198210-198709

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iVG40198410-198709

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iVG40198410-198709

9011910232

main90119-10232

9011910233

main90119-10233

10 parts on this diagram · 1 diagram in section
