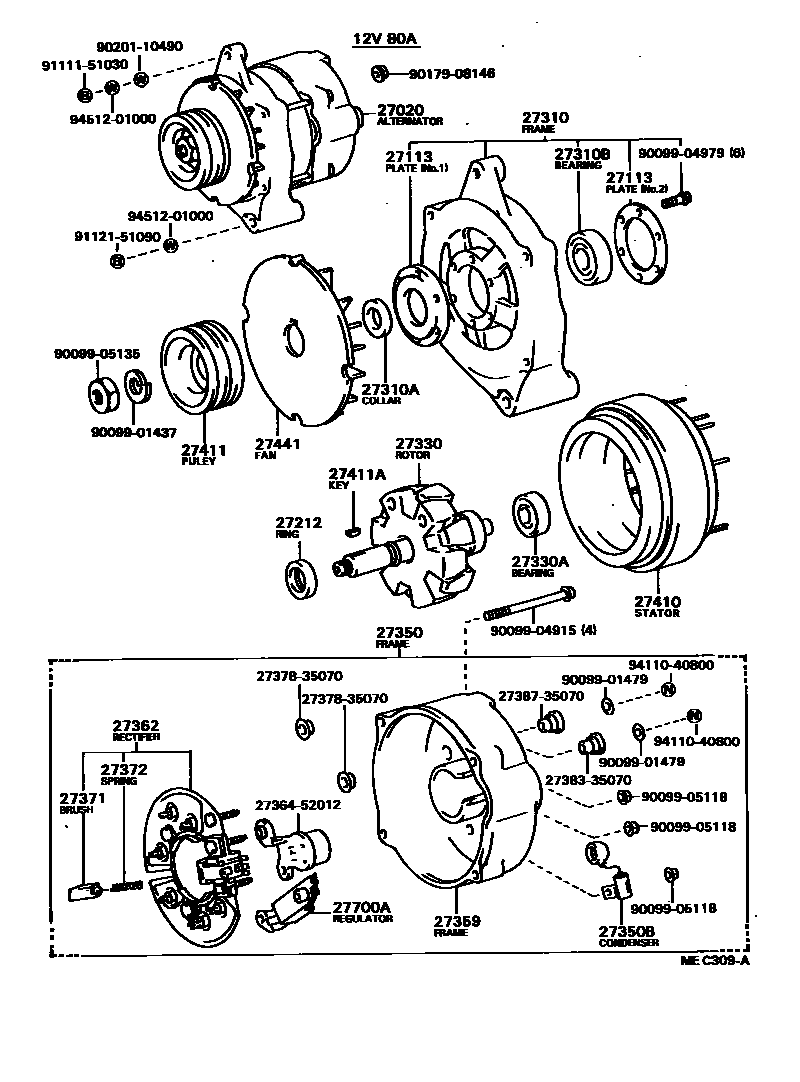

ALTERNATOR
27020ALTERNATOR ASSY
27113PLATE, BEARING RETAINER, ALTERNATOR
12V 80A,NO.2
12V 80A,NO.1
27212RING, SPACE(FOR ALTERNATOR ROTOR)
12V 80A
27310FRAME ASSY, DRIVE END, ALTERNATOR
12V 80A
27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
12V 80A
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
12V 80A
27330ROTOR ASSY, ALTERNATOR
12V 80A
27330ABEARING(FOR ALTERNATOR ROTOR)
12V 80A
27350FRAME ASSY, RECTIFIER END
12V 80A
27350BCONDENSER, ALTERNATOR
12V 80A
27359FRAME, ALTERNATOR RECTIFIER END
12V 80A
27362RECTIFIER ASSY, W/BRUSH
12V 80A
27371BRUSH, ALTERNATOR
12V 80A
27372SPRING, ALTERNATOR BRUSH
12V 80A
27410STATOR ASSY, ALTERNATOR
12V 80A
27411PULLEY, ALTERNATOR
12V 80A
27411AKEY(FOR ALTERNATOR PULLEY)
12V 80A
27441FAN, ALTERNATOR
12V 80A
27700AREGULATOR ASSY, GENERATOR
12V 80A
2736452012HOUSING, CONNECTOR MALE
main27364-52012
2737835070INSULATOR, ALTERNATOR, NO.1
main27378-35070
2738335070WASHER, ALTERNATER TERMINAL INSULATOR, NO.1
main27383-35070
2738735070INSULATOR, TERMINAL
main27387-35070
9009901437
main90099-01437
9009901479
main90099-01479
9009904915
main90099-04915
9009904979
main90099-04979
9009905118
main90099-05118
9009905135
main90099-05135
9017908146
main90179-08146
9020110490
main90201-10490
9111151030
main91111-51030
9112151090
main91121-51090
9411040800
main94110-40800
9451201000
main94512-01000
35 parts on this diagram · 1 diagram in section
