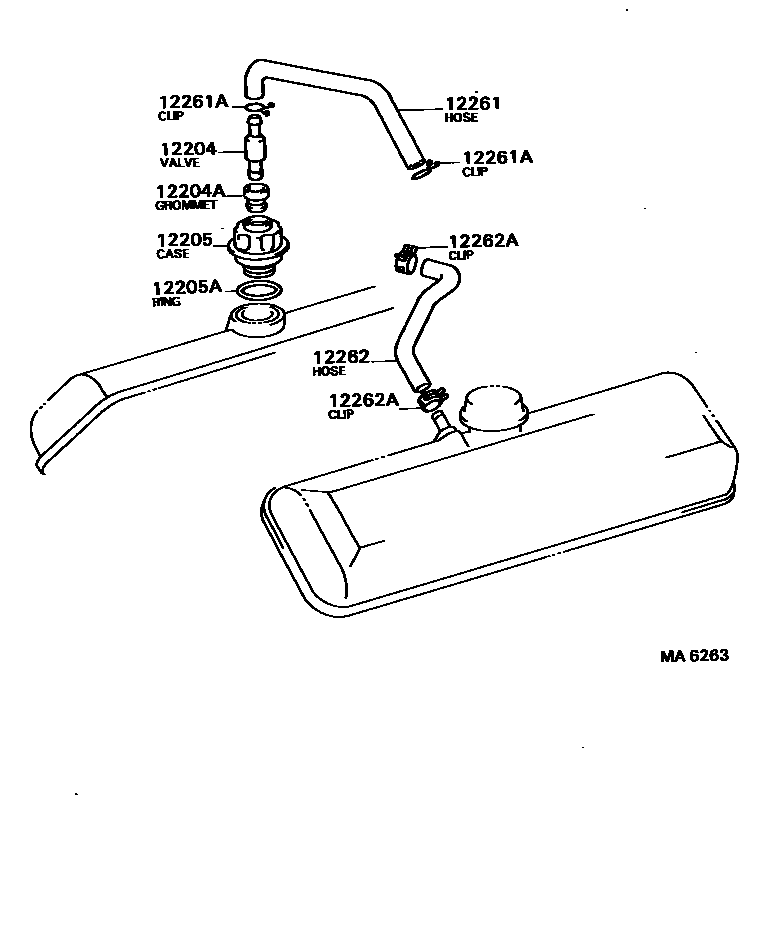

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12204AGROMMET(FOR VENTILATION SYSTEM)
12205CASE SUB-ASSY, VENTILATION
RH
12205ARING, O(FOR VENTILATION CASE)
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
8 parts on this diagram · 1 diagram in section
