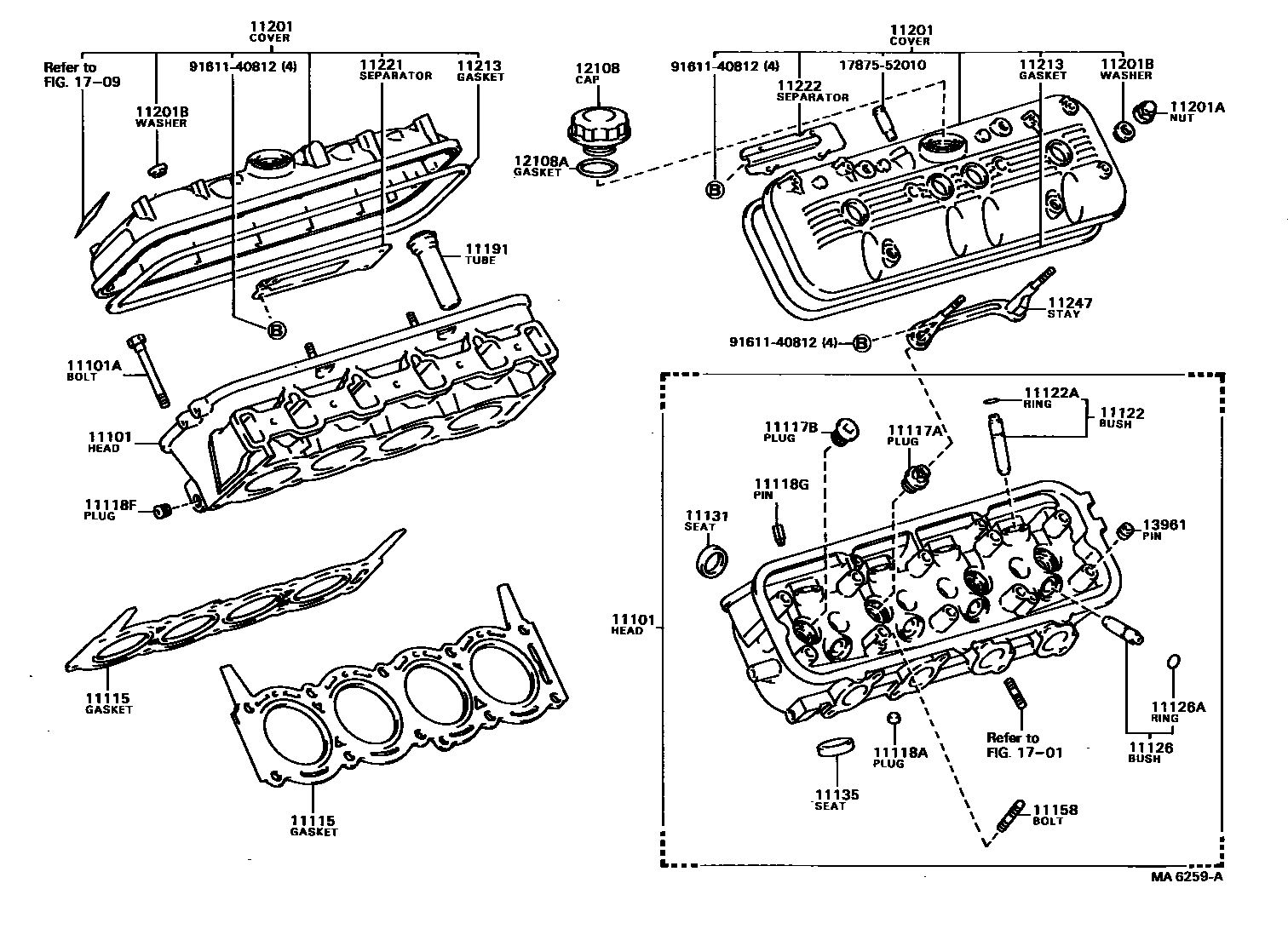

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.5PX176-37
11115GASKET, CYLINDER HEAD
RH
LH
11117APLUG, W/HEAD TAPER SCREW, NO.1
L=12,S=12,OD=24
11117BPLUG, W/HEAD TAPER SCREW, NO.2
L=12,S=10
11118APLUG, STRAIGHT, NO.1
11118FPLUG, TAPER, NO.1
11118GPIN, SLOTTED SPRING, NO.1
11122BUSH, INTAKE VALVE GUIDE
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
11191TUBE, SPARK PLUG
11201COVER SUB-ASSY, CYLINDER HEAD
RH
LH
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
11221SEPARATOR, CYLINDER HEAD COVER, NO.1
11222SEPARATOR, CYLINDER HEAD COVER, NO.2
11247STAY, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
13961PIN, ROCKER SUPPORT
1701MANIFOLD
1709CAUTION PLATE & NAME PLATE (ENGINE)
1787552010PIPE, INTAKE AIR CONNECTOR
main17875-52010
9161140812
main91611-40812
30 parts on this diagram · 1 diagram in section
