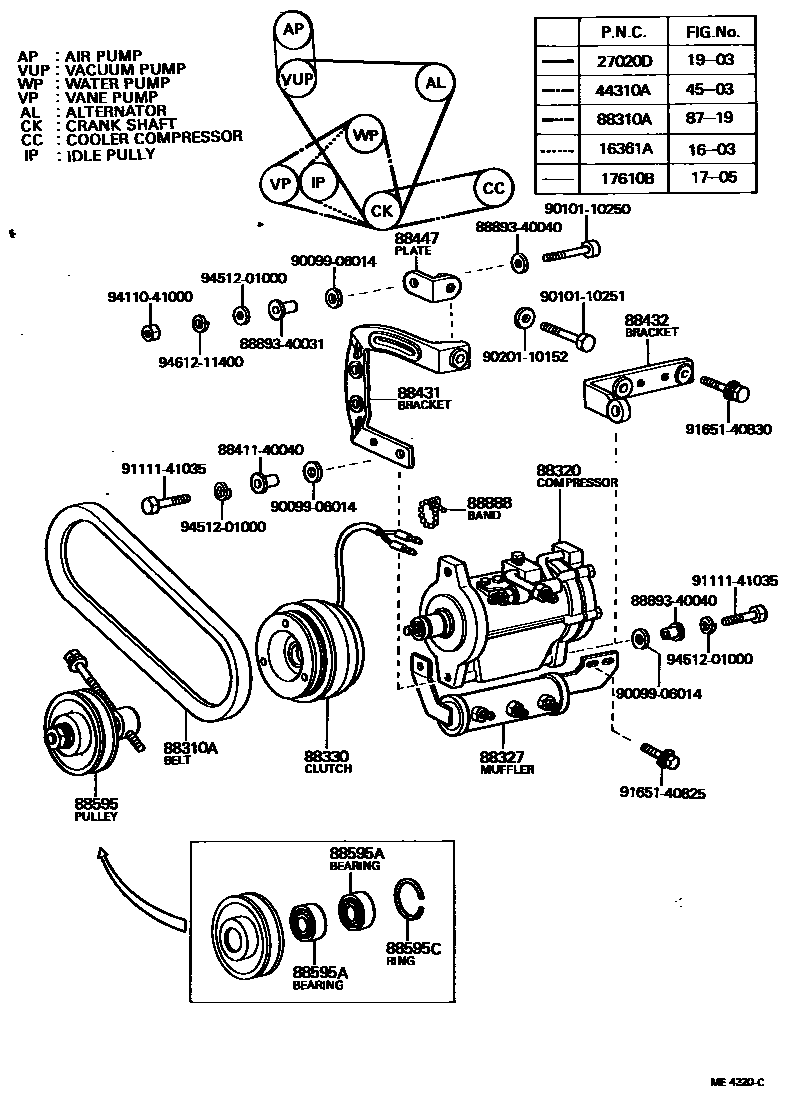

HEATING & AIR CONDITIONING - COMPRESSOR

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main99522-11000i3V..VG20196711-197302

1705AIR PUMP

→ Go to FIG 17-05

17610BBELT, V(FOR AIR PUMP)

main99321-00590i4VU..VG30197803-197811

main99521-10593i4VU..VG21,30197505-197803

1903ALTERNATOR

→ Go to FIG 19-03

27020DBELT, FAN(FOR ALTERNATOR)

main90916-02029i3V,4V..VG2#196711-197505

12V 65A,80A

main90916-02042i4VU..VG21,30197505-197803

12V 80A

main99332-01335i4V#..VG3#197803-198209

12V 80A

44310ABELT, V(FOR VANE PUMP)

main99522-11148iVG21197303-197505

main99522-11155iVG21,3#197505-198209

main99522-11164iVG20196711-197302

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99323-00890iVG35197811-198209

main99523-10875iVG20196711-196906

main99523-10894iVG2#,30196906-197811

88320COMPRESSOR ASSY, COOLER

main88320-40030iVG20196711-196811

main88320-40032iVG20196811-197203

main88320-40034iVG2#197203-197505

main88320-40035iVG21,3#197505-198209

88327MUFFLER, COOLER COMPRESSOR

main88357-40030iVG20196807-196906

main88357-40031iVG2#,3#196906-198209

88330CLUTCH ASSY, MAGNET

main88410-40031iVG20196711-196811

main88410-40032iVG20196811-196903

main88410-40033iVG2#,3#196903-198209

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-40030iVG20196711-196802

main88431-40031iVG20196802-196806

main88431-40032iVG2#,3#196806-198209

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88432-40030iVG20196711-196802

main88432-40031iVG20196802-196806

main88432-40032iVG2#,3#196806-198209

88447PLATE, COMPRESSOR BELT ADJUSTING

main88447-40030iVG2#,3#196802-198209

88595PULLEY, COOLER COMPRESSOR IDLE

main88402-30151iVG20196711-197302

88595ABEARING (FOR COOLER IDLE PULLEY)

main90099-10089iVG20196711-197302

88595CRING, SNAP (FOR COOLER IDLE PULLEY)

main90099-07102iVG20196711-197302

88888BAND (FOR COOLER COMPRESSOR)

main88888-40040iVG2#,30196711-197811

8841140040

main88411-40040

8889340031COLLAR (FOR COOLER IDLER PULLEY)

main88893-40031

8889340040COLLAR (FOR COOLER IDLER PULLEY)

main88893-40040

9009906014

main90099-06014

9010110250

main90101-10250

9010110251

main90101-10251

9020110152

main90201-10152

9111141035

main91111-41035

9165140825

main91651-40825

9165140830

main91651-40830

9411041000

main94110-41000

9451201000

main94512-01000

9461211400

main94612-11400

33 parts on this diagram · 1 diagram in section
