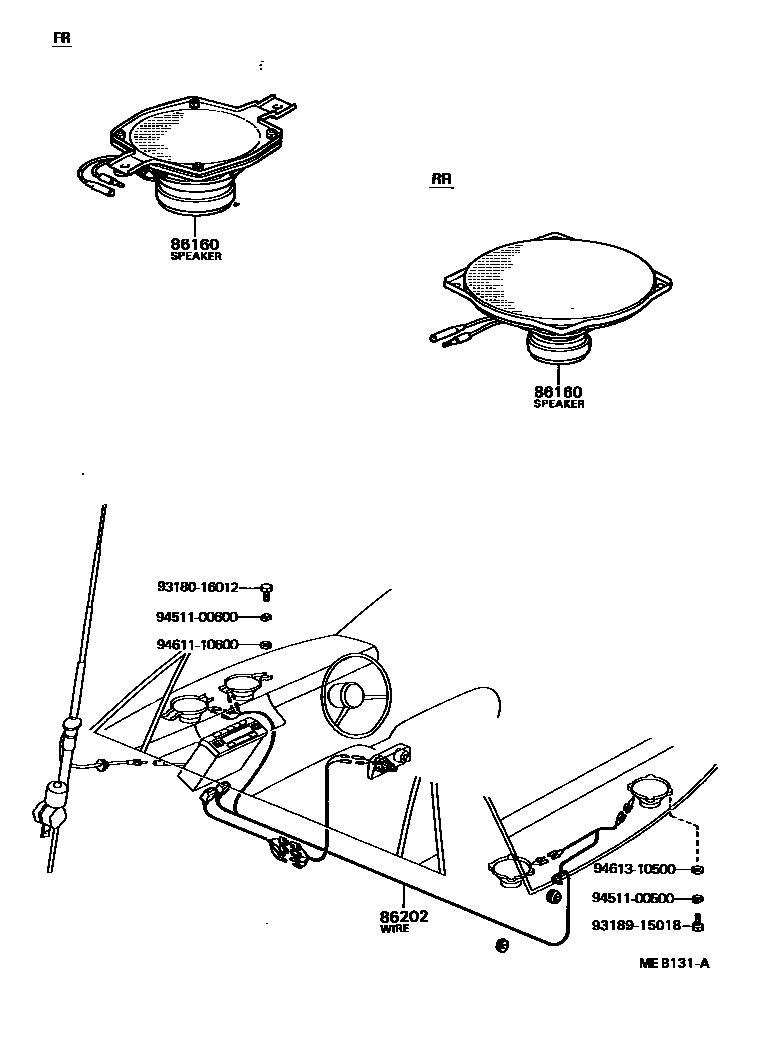

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-40010iVG2#,3#196711-198209

FR,RH

main86160-40020iVG2#,3#196711-198209

FR,LH

main86160-40030iVG21;VG20,3#..A,C,D196711-198209

RR,RH

main86160-40040iVG21;VG20,3#..A,C,D196711-198209

RR,LH

86202WIRE, SPEAKER, NO.1

main86202-40010iVG21;VG20..A,C,D196711-197505

main86202-40020iVG21,3#197505-198209

9318016012

main93180-16012

9318915018

main93189-15018

9451100500

main94511-00500

9451100600

main94511-00600

9461110600

main94611-10600

9461310500

main94613-10500

8 parts on this diagram · 1 diagram in section
