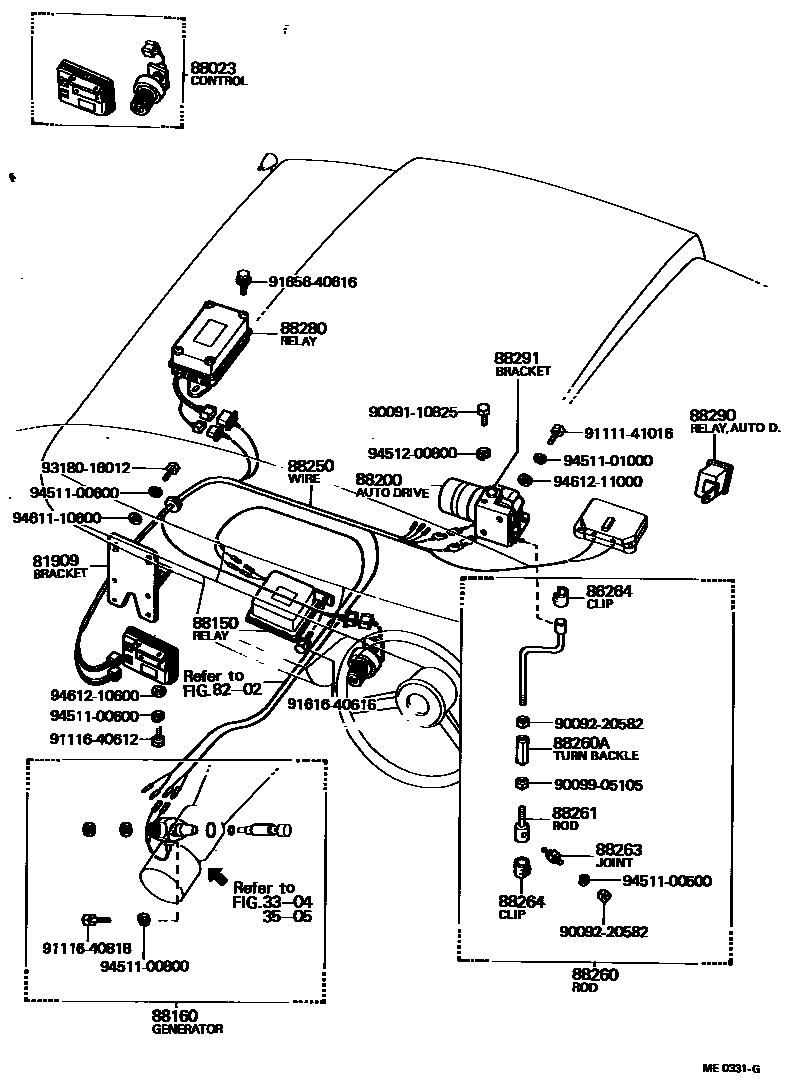

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1

3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

3505SPEEDOMETER DRIVEN GEAR (ATM)

→ Go to FIG 35-05

81909BRACKET SUB-ASSY, RELAY, AUTODRIVE

main81909-40013iVG2#..A,C,D196711-197405

main85999-40010iVG21,3#197405-198209

8202WIRING & CLAMP

→ Go to FIG 82-02

86264GRILLE, SPEAKER, FRONT

88023CONTROL SET, CRUISE CONTROL(AUTO DRIVE)

main88023-40012iVG20..A,C,D196711-197302

main88023-40020iVG21..ATM197303-197405

88150RELAY ASSY, SAFETY, CRUISE CONTROL(AUTO DRIVE)

main88140-40020iVG2#..A,C,D196711-197405

AUTO DRIVE & DOOR LOCK

main88140-40030iVG2#..A,C196711-197405

AUTO DRIVE ONLY

main88140-40040iVG2#..A,C196711-197405

DOOR LOCK ONLY

88160GENERATOR ASSY, CRUISE CONTROL(AUTO DRIVE)

main88120-40011iVG21..ATM197303-197405

main88120-49015iVG20..A,C,D196711-196812

main88120-49016iVG20..A,C,D196812-197302

88200CRUISE CONTROL ASSY

main88200-40020iVG2#..A,C,D196711-197405

main88200-40030iVG21,3#..D197405-198209

88250WIRE ASSY, TO CRUISE CONTROL(AUTO DRIVE)

main82233-40010iVG21..D197405-197501

main82233-40011iVG21..D197501-197505

main88250-40033iVG2#..A,C,D196711-197405

88260CABLE OR ROD ASSY, CRUISE CONTROL ACCELERATOR LINKAGE

main88260-40020iVG2#..A,C,D196711-197405

88260ATURNBACKLE, ACCELERATOR CONNECTING ROD

main90099-05816iVG2#..A,C,D196711-197405

88261ROD, CRUISE CONTROL ACCELERATOR LINKAGE CONNECTING, B

main88261-40020iVG2#..A,C,D196711-197405

88263JOINT, CRUISE CONTROL ACCELERATOR LINKAGE ROD BALL

main88263-40020iVG2#..A,C,D196711-197405

88264CLIP, CRUISE CONTROL ACCELERATOR LINKAGE BALL JOINT

main88262-40020iVG2#..A,C,D196711-197405

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main88280-40010iVG2#..A,C,D196711-197405

88290RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), C

main88280-40020iVG21..ATM197303-197405

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-40020iVG2#..A,C,D196711-197405

main88291-40030iVG21..D197405-197701

main88291-40031iVG3#..D197701-198209

9009110825

main90091-10825

9009220582

main90092-20582

9009905105

main90099-05105

9111141016

main91111-41016

9111640612

main91116-40612

9111640818

main91116-40818

9161640616

main91616-40616

9165640616

main91656-40616

9318016012

main93180-16012

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

9451101000

main94511-01000

9451200800

main94512-00800

9461110600

main94611-10600

9461210600

main94612-10600

9461211000

main94612-11000

35 parts on this diagram · 3 diagrams in section
