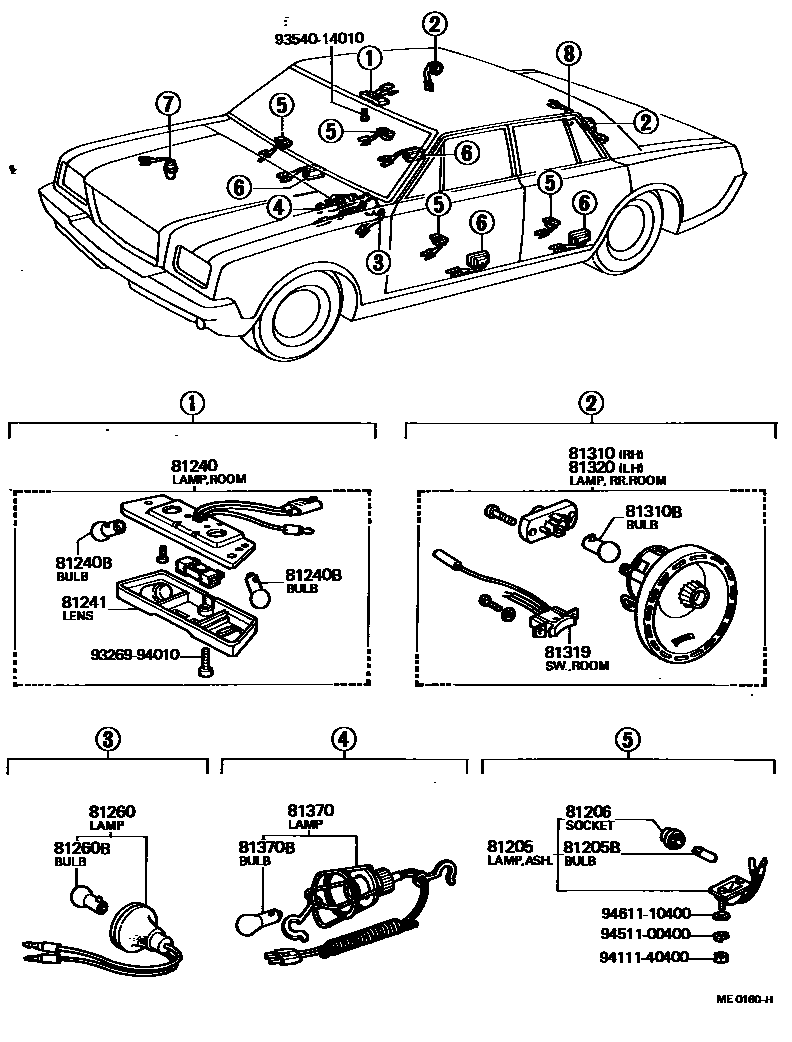

INTERIOR LAMP

0001 1 0002 1

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81205-40010×4iVG21,3#197303-198209

81205BBULB, ASH RECEPTACLE LAMP

main99132-12034×4iVG21,3#197303-198209

81206SOCKET, ASH RECEPTACLE LAMP

main83101-12010×4iVG21,3#197303-198209

81240LAMP ASSY, ROOM, NO.1

main81240-40020iVG2#,30196711-197811

main81240-40020-03iVG35197811-198209

GRAY,GRAY,TRIM1#,8#

main81240-40020-05iVG35..D197811-198209

BEIGE,BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-12005×2iVG2#,3#196811-198209

main99132-13060×2iVG20196711-196811

81241LENS, ROOM LAMP, NO.1

main81241-40020iVG2#,30196711-197811

main81241-40020-03iVG35197811-198209

GRAY,GRAY,TRIM1#,8#

main81241-40020-05iVG35..D197811-198209

BEIGE,BEIGE,TRIM4#

81260LAMP ASSY, GLOVE BOX

main81260-40010iVG2#,3#196711-198209

81260BBULB(FOR GLOVE BOX)

main99132-11034iVG2#,3#197009-198209

main99132-13030iVG20196711-197009

12V 3W

81310LAMP ASSY, REAR ROOM, RH

main81250-40010iVG2#,3#196711-198209

81310BBULB, REAR ROOM LAMP

main90981-12005×2iVG2#,3#196711-198209

81319SWITCH, REAR ROOM LAMP

main81259-40010×2iVG2#,3#196711-198209

81320LAMP ASSY, REAR ROOM, LH

main81290-40010iVG2#,3#196711-198209

81370LAMP ASSY, INSPECTION

main81370-30020iVG2#196711-197405

81370BBULB, INSPECTION LAMP

main90981-12003iVG2#196711-197405

12V 24W

9326994010

main93269-94010

9354014010

main93540-14010

9411140400

main94111-40400

9451100400

main94511-00400

9461110400

main94611-10400

19 parts on this diagram · 2 diagrams in section
