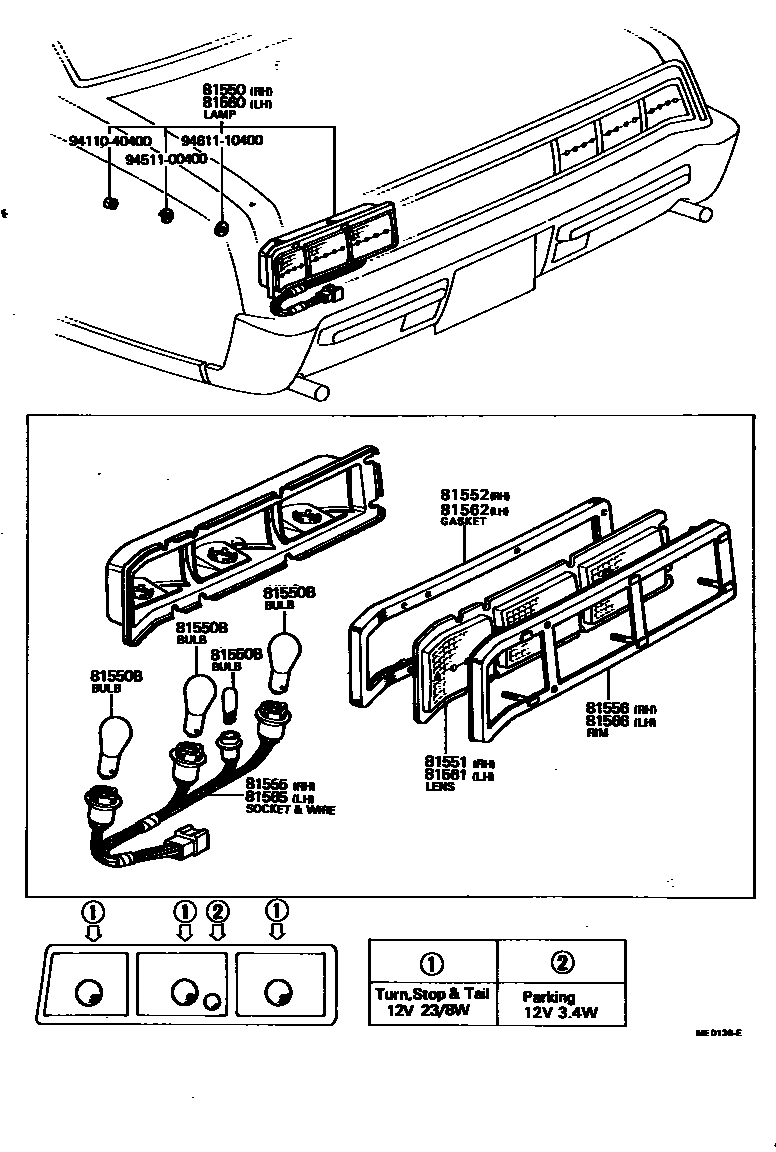

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-49015iVG20196711-196908

RED

main81550-49016iVG20196908-197302

RED

main81550-49025iVG21,3#197303-198209

AMBER-RED

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×2iVG21,3#197303-198209

main99132-12034×2iVG2#,3#196908-198209

main99132-21230×6iVG2#,3#196908-198209

main99132-22250×6iVG20196711-196908

12V 25/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-40021iVG20196711-197302

RED

main81551-40030iVG21,3#197303-198209

AMBER-RED

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-40030iVG21,3#197303-198209

main81554-40021iVG20196711-197302

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-40021iVG20196711-197302

main81555-40030iVG21,3#197303-198209

81556RIM, REAR COMBINATION LAMP, RH

main81556-40021iVG20196711-197302

main81556-40030iVG21,3#197303-198209

81560LAMP ASSY, REAR COMBINATION, LH

main81560-49015iVG20196711-196908

RED

main81560-49016iVG20196908-197302

RED

main81560-49025iVG21,3#197303-198209

AMBER-RED

81561LENS, REAR COMBINATION LAMP, LH

main81561-40011iVG20196711-197302

RED

main81561-40020iVG21,3#197303-198209

AMBER-RED

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-40020iVG21,3#197303-198209

main81564-40011iVG20196711-197302

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-40021iVG20196711-197302

main81555-40030iVG21,3#197303-198209

81566RIM, REAR COMBINATION LAMP, LH

main81566-40011iVG20196711-197302

main81566-40020iVG21,3#197303-198209

9411040400

main94110-40400

9451100400

main94511-00400

9461110400

main94611-10400

14 parts on this diagram · 2 diagrams in section
