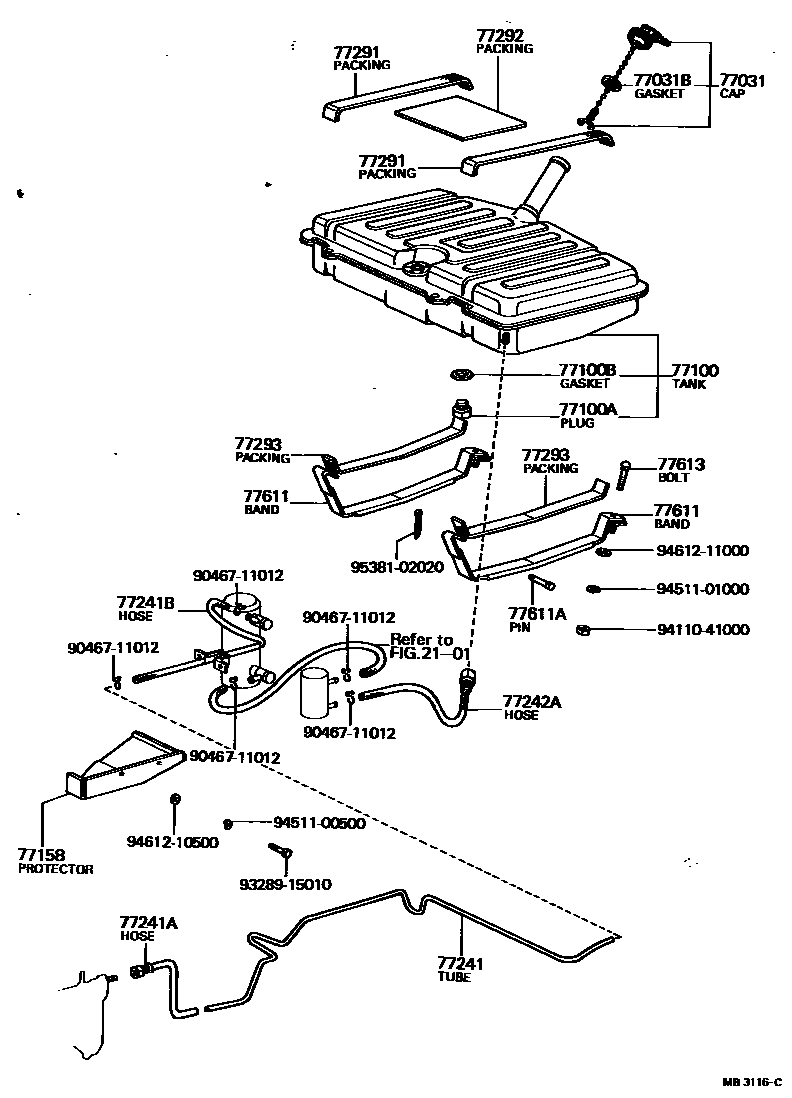

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

2101FUEL PIPE & CLAMP

→ Go to FIG 21-01

77031CAP ASSY, FUEL TANK

main77031-40010iVG20196711-197108

main77031-40012iVG20197206-197302

main77031-40020iVG21197303-197403

main77031-40021iVG21,30197403-197811

main77310-14070iVG35197811-198209

main77310-40020iVG20197108-197206

77031BGASKET (FOR FUEL TANK CAP)

main77316-12020iVG20197206-197302

main77316-12030iVG21197303-197403

main77316-12031iVG21,30197403-197811

main77316-12050iVG35197811-198209

main77316-40010iVG20196711-197106

main77316-40011iVG20197106-197206

77100TANK ASSY, FUEL

main77001-91401iVG20196711-196808

main77001-91402iVG20196808-196903

main77001-91403iVG20196903-197108

main77001-91404iVG20197108-197209

main77001-91405iVG2#197209-197511

main77001-91406iVG21,30197511-197811

main77001-91408iVG35197811-198209

77100APLUG(FOR FUEL TANK)

main90341-24036iVG2#,3#196711-198209

77100BGASKET(FOR FUEL TANK)

main90430-24047iVG2#,3#196711-198209

77158PROTECTOR, FUEL PUMP AND FILTER

main77158-91401iVG2#,30196903-197811

main77158-91402iVG35197811-198209

77241TUBE, FUEL MAIN, NO.1

main77251-91401iVG20196711-197209

main77251-91403iVG2#197209-197405

main77251-91404iVG21,30197405-197811

main77251-91406iVG35197811-198005

main77251-91407iVG35198005-198209

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main77202-91401iVG20196902-196909

L=192

main90923-01032iVG20196711-196902

L=232

main90923-01161iVG20196909-197209

L=193

main95331-08010iVG2#197209-197401

main95332-08020iVG21,3#197401-198209

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main90445-12227iVG20196711-196903

L=370

main90445-12424iVG20196903-196906

L=350

main90445-12628iVG20196906-197112

L=210

main95311-07022iVG20197112-197209

L=350

main95331-08022iVG2#,30197209-197811

77242TUBE, FUEL MAIN, NO.2

main77279-91401iVG21,30197511-197811

main90440-08056iVG2#197209-197511

77242AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)

main23273-52010iVG35197811-198209

main90923-01079iVG20196711-196903

L=330

main90923-01153iVG20196903-197209

main95331-08022iVG2#,30197209-197811

77291PACKING, FUEL TANK SUPPORT, UPPER

main77615-91401×2iVG2#,3#196711-198209

77292PACKING, FUEL TANK, CENTER

main77618-91401iVG2#,3#196711-198209

77293PACKING, FUEL TANK, LOWER

main77616-91401×2iVG2#,3#196711-198209

77611BAND, FUEL TANK

main77601-91401×2iVG20196711-197107

main77601-91402×2iVG2#,3#197107-198209

77611APIN (FOR FUEL TANK BAND)

main77617-91401×2iVG20196711-197008

main90240-08118×2iVG2#,3#197008-198209

77613BOLT, FUEL TANK BAND SET

main90112-10039×2iVG2#,3#196711-198209

9046711012

main90467-11012

9328915010

main93289-15010

9411041000

main94110-41000

9451100500

main94511-00500

9451101000

main94511-01000

9461210500

main94612-10500

9461211000

main94612-11000

9538102020

main95381-02020

26 parts on this diagram · 5 diagrams in section
