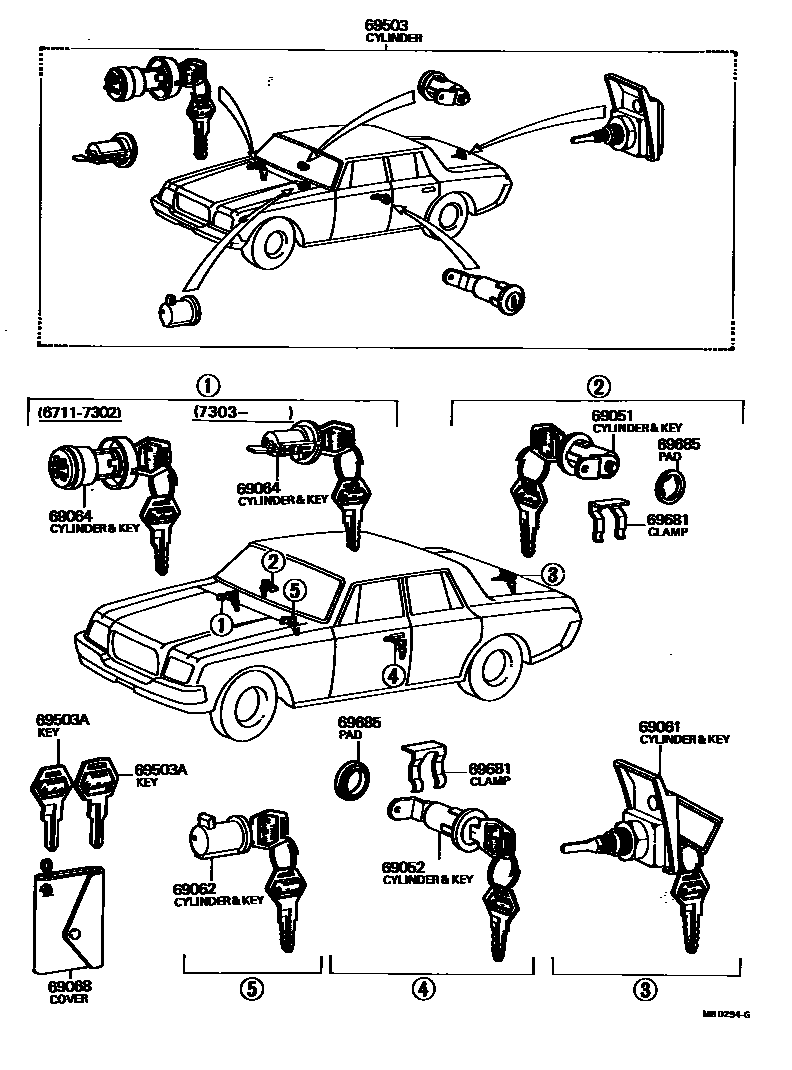

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-40010iVG20196711-197302

sub69051-40020

main69051-40020iVG21,3#197303-198209

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-40010iVG20196711-197302

sub69052-40020

main69052-40020iVG21,3#197303-198209

69061CYLINDER & KEY SET, LUGGAGE LOCK

main75045-40011iVG20196711-197302

sub75045-40020

main75045-40020iVG21,3#197303-198209

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69062-40010iVG20196711-196808

sub69062-40011

sub93239-24004

main69062-40011iVG20196808-197302

sub69062-30030

main69062-40020iVG21,3#197303-198209

sub69062-30030

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69064-40010iVG21,3#197303-198209

main84045-40010iVG20196711-197302

69068COVER SUB-ASSY, KEY

main84041-40010iVG2#196711-197312

sub84041-40011

main84041-40011iVG21,3#197312-198209

69503CYLINDER SET, LOCK

main69503-40010iVG20196711-196808

sub69503-40011

sub93239-24004

main69503-40011iVG20196808-197108

main69503-40013iVG20197108-197206

sub69503-40014

main69503-40014iVG20197206-197302

main69503-40030iVG21197303-197403

sub69503-40031

main69503-40031iVG21,30197403-197811

main69503-40032iVG35197811-198209

69503AKEY, BLANK

main90999-00064iVG21,3#197305-198209

MASTER KEY

sub90999-00089

main90999-00065iVG21,3#197305-198209

SUB KEY

sub90999-00090

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20010iVG2#196711-197505

sub69681-20040

main69681-20040iVG21,3#197505-198209

69685PAD, LOCK CYLINDER

main69685-12010iVG2#,3#196711-198209

10 parts on this diagram · 1 diagram in section
