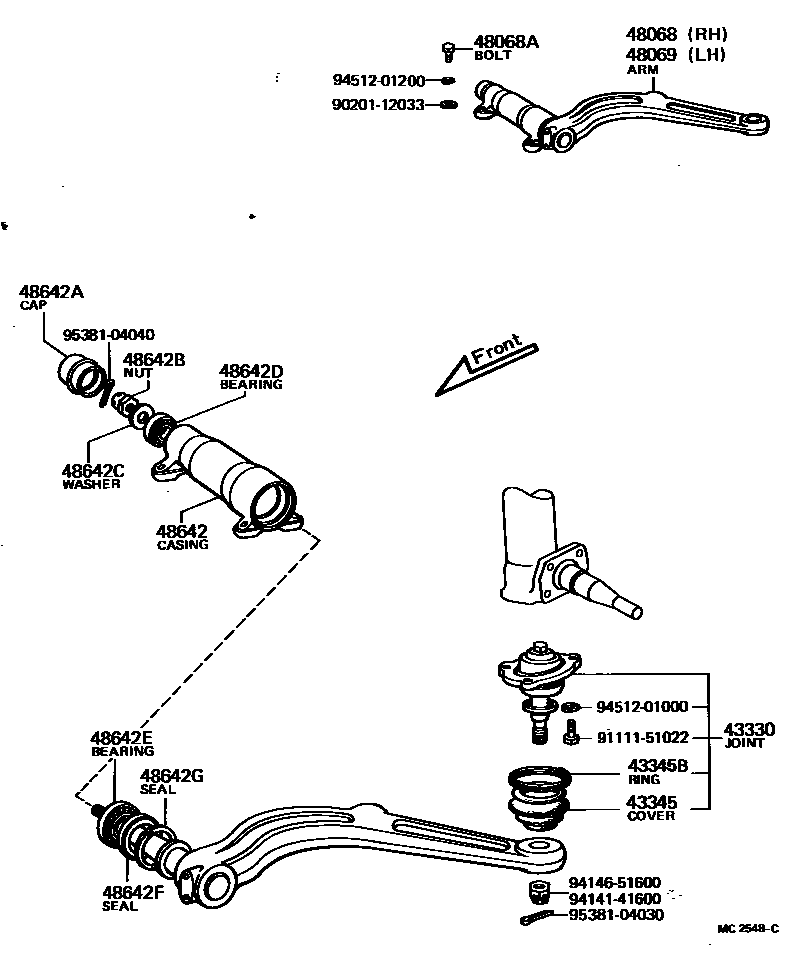

FRONT AXLE ARM & STEERING KNUCKLE

43330JOINT ASSY, LOWER BALL, FRONT

main43330-49015×2iVG2#,3#196711-198209

43345COVER, LOWER BALL JOINT DUST

main43345-40010×2iVG2#,3#196711-198209

43345BRING, SET (FOR LOWER BALL JOINT DUST COVER)

main90522-44016×2iVG2#,3#196711-198209

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48620-40010iVG20196711-196908

main48620-40013iVG20196908-197302

main48620-40020iVG21,3#197303-198209

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12234×8iVG20196711-196908

main90101-12301×8iVG2#,3#196908-198209

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48640-40010iVG20196711-196908

main48640-40013iVG20196908-197302

main48640-40020iVG21,3#197303-198209

48642CASING, LOWER ARM SHAFT

main48642-40010×2iVG20196711-196908

main48642-40011×2iVG2#,3#196908-198209

48642ACAP, LOWER ARM SHAFT CASING

main43423-55010×2iVG2#,3#196711-198209

48642BNUT, CASTLE(FOR LOWER ARM SHAFT)

main90171-22027×2iVG2#,3#196711-198209

48642CWASHER, PLATE(FOR LOWER ARM SHAFT)

main90201-23266×2iVG2#,3#196711-198209

48642DBEARING(FOR LOWER ARM SHAFT)

main90368-26013×2iVG2#,3#196711-198209

48642EBEARING(FOR LOWER ARM SHAFT)

main90368-44033×2iVG2#,3#196711-198209

48642FSEAL, OIL(FOR LOWER ARM SHAFT)

main90311-55100×2iVG2#,3#196902-198209

main90311-60087×2iVG20196711-196902

48642GSEAL, DUST(FOR LOWER ARM SHAFT)

main90303-57040×2iVG20196711-196902

9020112033

main90201-12033

9111151022

main91111-51022

9414141600

main94141-41600

9414651600

main94146-51600

9451201000

main94512-01000

9451201200

main94512-01200

9538104030

main95381-04030

9538104040

main95381-04040

22 parts on this diagram · 1 diagram in section
