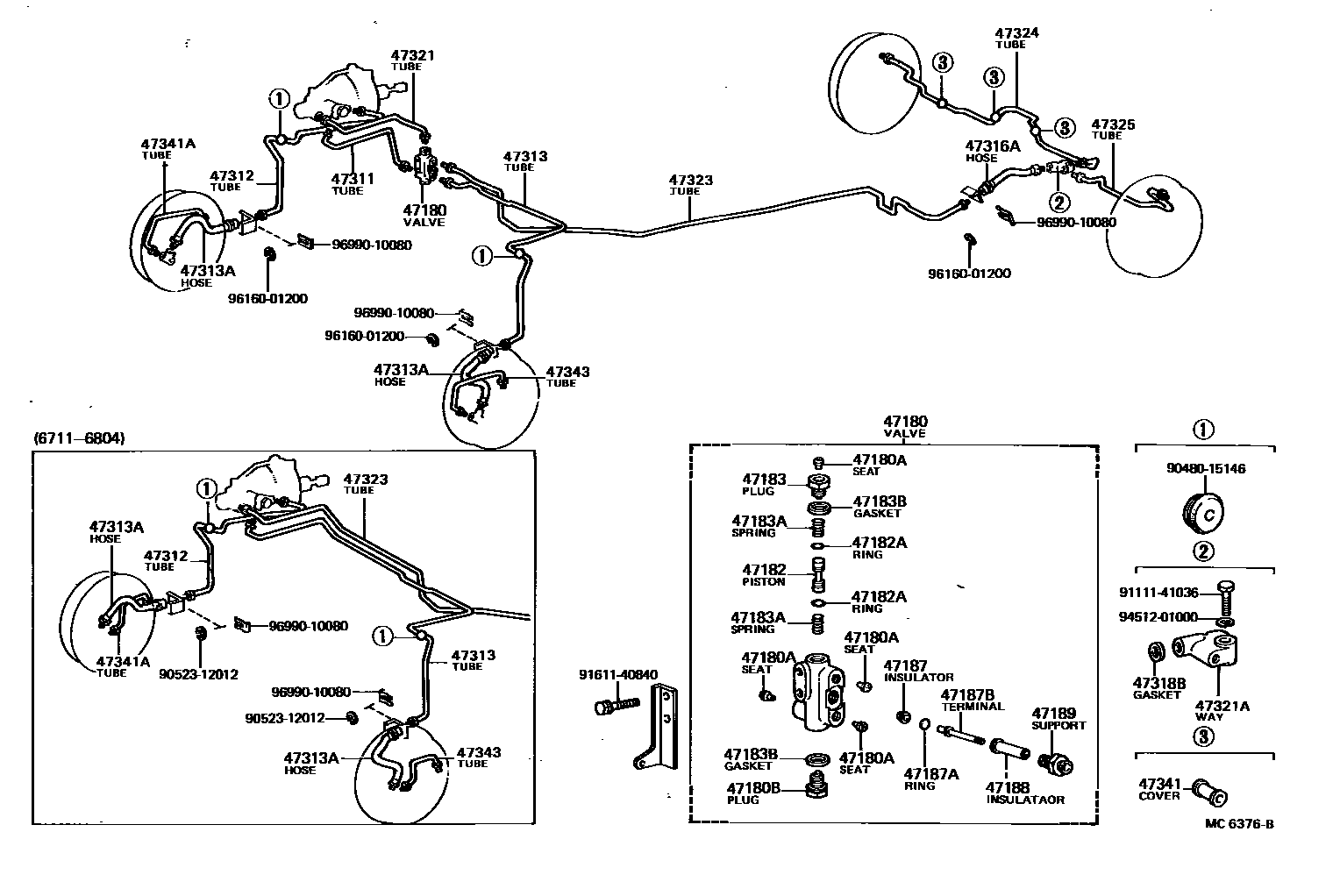

BRAKE TUBE & CLAMP

0001 1 0002 1

47180VALVE,ASSY, BRRKE PRESSURE DIFFERENTIAL

main47180-40010iVG20196804-197302

main47180-40020iVG21197303-197505

47180ASEAT, UNION(FOR BRAKE DIFFERENTIAL VALVE)

main90410-03015×4iVG20196804-196907

main90410-03024×4iVG20196907-197302

47180BPLUG, SCREW(FOR BRAKE PRESSURE DIFFERENTIAL VALVE)

main90341-16040iVG20196804-196907

main90341-16047iVG20196907-197302

47182PISTON, WARNING SWITCH

main47182-40010iVG20196804-197302

47182ARING, O(FOR WARNING SWITCH PISTON)

main90301-06129×2iVG20196804-197302

47183PLUG, WARNING SWITCH BODY

main47183-40010iVG20196804-197302

47183ASPRING, COMPRESSION(FOR WARNING SWITCH BODY)

main90501-12424×2iVG20196804-197302

47183BGASKET(FOR WARNING SWITCH BODY)

main90430-16168×2iVG20196804-197302

47187INSULATOR, WARNING SWITCH TERMINAL

main47187-40010iVG20196804-197302

47187ARING, O(FOR WARNING SWITCH TERMINAL)

main96731-01007iVG20196804-197302

47187BTERMINAL(FOR BRAKE WARNING SWITCH)

main90590-04003iVG20196804-197302

47188INSULATOR, WARNING SWITCH TERMINAL

main47188-40010iVG20196804-197302

47189SUPPORT, WARNING SWITCH TERMINAL

main47189-40010iVG20196804-197302

47311TUBE, FRONT BRAKE, NO.1

main47311-40050iVG20196804-197302

main47311-40060iVG21197303-197505

main47311-40070iVG21,3#197505-198209

47312TUBE, FRONT BRAKE, NO.2

main47313-40020iVG20196711-197006

main47313-40021iVG20197006-197302

main47313-40030iVG21,3#197303-198209

47313TUBE, FRONT BRAKE, NO.3

main47314-40020iVG20196711-196804

main47314-40021iVG20196804-197006

main47314-40022iVG20197006-197302

main47314-40030iVG21197303-197505

main47314-40040iVG21,30197505-197811

main47314-40041iVG35197811-198209

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02075×2iVG20196711-197302

main90947-02212×2iVG21197303-197505

main90947-02274×2iVG21,3#197505-198209

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02072iVG20196711-196909

main90947-02075iVG20196909-196912

main90947-02120iVG2#196912-197505

main90947-02276iVG21,3#197505-197902

main96940-33905iVG35197902-198209

47318BGASKET(FOR REAR RH BRAKE TUBE)

main90430-10027iVG20196711-196909

47321TUBE, REAR BRAKE, NO.1

main47312-40010iVG20196804-197302

main47312-40020iVG21197303-197505

main47315-40020iVG21,3#197505-198209

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10023iVG20196711-196909

main90413-10086iVG2#,3#196909-198209

47323TUBE, REAR BRAKE, NO.3

main47315-40010iVG21197303-197505

main47316-40020iVG20196804-196909

main47316-40021iVG20196909-197006

main47316-40022iVG20197006-197302

main47316-40050iVG21,3#197505-198209

main47349-40010iVG20196711-196804

47324TUBE, REAR BRAKE, NO.4

main47318-40010iVG20196711-197005

main47318-40011iVG20197005-197006

main47318-40012iVG20197006-197302

main47318-40020iVG21,30197303-197811

main47318-40021iVG35197811-198209

47325TUBE, REAR BRAKE, NO.5

main47319-40020iVG20196711-197005

main47319-40021iVG20197005-197006

main47319-40022iVG20197006-197302

main47319-40030iVG21,30197303-197811

main47319-40031iVG35197811-198209

47341COVER, TUBE

main47341-25010×3iVG2#,30196711-197811

47341ATUBE, WHEEL CYLINDER, FRONT RH

main47331-40011iVG20196711-196811

main47331-40012iVG20196811-197302

47343TUBE, WHEEL CYLINDER, FRONT LH

main47331-40011iVG20196711-196811

main47331-40012iVG20196811-197302

9048015146

main90480-15146

9052312012

main90523-12012

9111141036

main91111-41036

9161140840

main91611-40840

9451201000

main94512-01000

9616001200

main96160-01200

9699010080

main96990-10080

34 parts on this diagram · 2 diagrams in section
