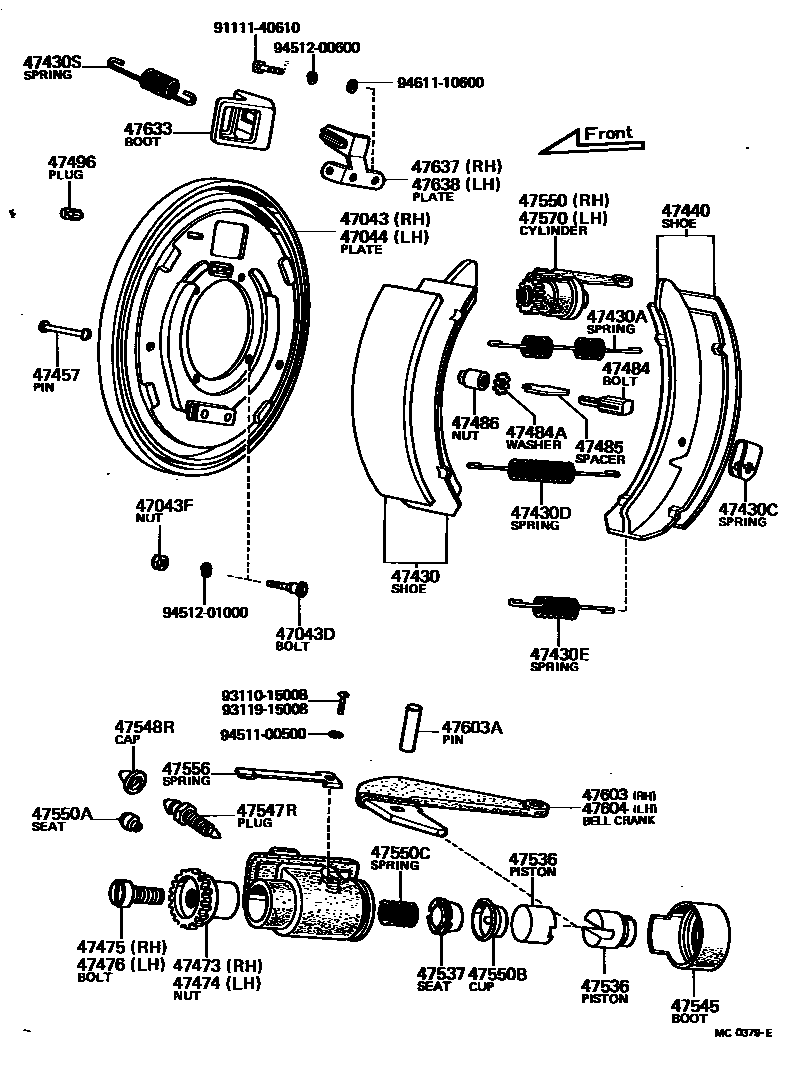

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-39010iVG20196711-197302

main47043-40010iVG21197303-197310

main47043-40020iVG35197811-198209

main47070-40010iVG21,30197310-197811

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-40010×8iVG21,30197303-197811

main90114-10002×6iVG35197811-198209

main90114-10010×8iVG20196711-197302

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10040×8iVG2#196711-197603

main90170-10191×8iVG21,3#197603-198209

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-39010iVG20196711-197302

main47044-40010iVG21197303-197310

main47044-40020iVG35197811-198209

main47080-40010iVG21,30197310-197811

47430SHOE ASSY, REAR BRAKE(FOR FRONT OR UPPER SIDE)

main47420-40010×2iVG20196711-197302

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26134×2iVG2#,30196711-197811

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-30010×4iVG2#,30196711-197811

main90501-20756×4iVG35197811-198209

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29080×2iVG2#,30196711-197811

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20005×2iVG35197811-198209

main90506-29079×2iVG2#,30196711-197811

47430SSPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

main90506-16203×2iVG2#,30196811-197811

main90506-18023×2iVG35197811-198209

47440SHOE ASSY, REAR BRAKE(FOR REAR OR LOWER SIDE)

main47420-40010×2iVG20196711-197302

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020×4iVG35197811-198209

main47447-35020×4iVG2#,30196711-197811

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47552-40010iVG2#,30196711-197811

RIGHT SCREW

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47551-40010iVG2#,30196711-197811

LEFT SCREW

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-30020iVG2#,30196711-197811

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-30020iVG2#,30196711-197811

47484BOLT, REAR BRAKE SHOE RETRACTING SPRING CLAMP

main47484-30010×2iVG20196711-197302

main47484-40010×2iVG21,30197303-197811

47484AWASHER, TOOTHED(FOR REAR BRAKE SHOE RETRACTING SPRING)

main90205-10002×2iVG2#,30196711-197811

47485SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP

main47485-30010×2iVG2#,30196711-197811

47486NUT, REAR BRAKE SHOE RETRACTING SPRING CLAMP

main47486-30010×2iVG2#,30196711-197811

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iVG35197811-198209

main47491-30010×2iVG2#,30196711-197811

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-30030×4iVG35197811-198209

main47531-40020×2iVG20196711-197302

CUP SIDE

main47531-40030×2iVG21,30197303-197811

CUP SIDE

main47536-40010×2iVG20196711-197302

BOOT SIDE

main47536-40020×2iVG21,30197303-197811

BOOT SIDE

47537SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-40011×2iVG21197303-197401

main47533-40012×2iVG21197401-197406

main47533-40013×2iVG21,30197406-197811

main47533-40020×2iVG20196711-197302

47545BOOT, WHEEL CYLINDER(FOR REAR BRAKE)

main47535-40020×2iVG20196711-197302

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iVG35197811-198209

main47547-40020×2iVG2#,30196711-197811

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iVG35197811-198209

main47548-20010×2iVG21,30197303-197811

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-39175iVG35197811-198209

main47550-40010iVG20196711-196811

main47550-40011iVG20196811-197302

main47550-40020iVG21197303-197401

main47550-40021iVG21197401-197505

main47550-40022iVG21,30197505-197811

47550ASEAT, UNION(FOR REAR WHEEL BRAKE CYLINDER)

main90410-03015×2iVG2#,30196711-197811

47550BCUP, CYLINDER(FOR REAR WHEEL BRAKE CYLINDER)

main90947-01070×2iVG20196711-197302

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-35020×2iVG35197811-198209

main90501-08364×2iVG20196711-197302

main90501-08732×2iVG21,30197401-197811

main90502-08060×2iVG21197303-197401

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-30010×2iVG2#,30196711-197811

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-39175iVG35197811-198209

main47570-40010iVG20196711-196811

main47570-40011iVG20196811-197302

main47570-40020iVG21197303-197401

main47570-40021iVG21197401-197505

main47570-40022iVG21,30197505-197811

47603BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE)

main47624-30010iVG20196711-196811

main47624-40010iVG2#,30196811-197811

main47624-40020iVG35197811-198209

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08068×2iVG35197811-198209

main90250-08001×2iVG21,30197505-197811

main90250-08077×2iVG2#196711-197505

47604BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE)

main47624-30010iVG20196711-196811

main47624-40010iVG2#,30196811-197811

main47625-40010iVG35197811-198209

47633BOOT, PARKING BRAKE BELLCRANK

main47535-30060×2iVG2#,30196711-197811

main47633-40010iVG35197811-198209

RH

main47634-40010iVG35197811-198209

LH

47637PLATE, BELLCRANK SUPPORT, RH(FOR REAR BRAKE)

main47637-30010iVG20196711-196811

main47637-40010iVG2#,30196811-197811

47638PLATE, BELLCRANK SUPPORT, LH(FOR REAR BRAKE)

main47637-30010iVG20196711-196811

main47638-40010iVG2#,30196811-197811

9111140610

main91111-40610

9311015008

main93110-15008

9311915008

main93119-15008

9451100500

main94511-00500

9451200600

main94512-00600

9451201000

main94512-01000

9461110600

main94611-10600
