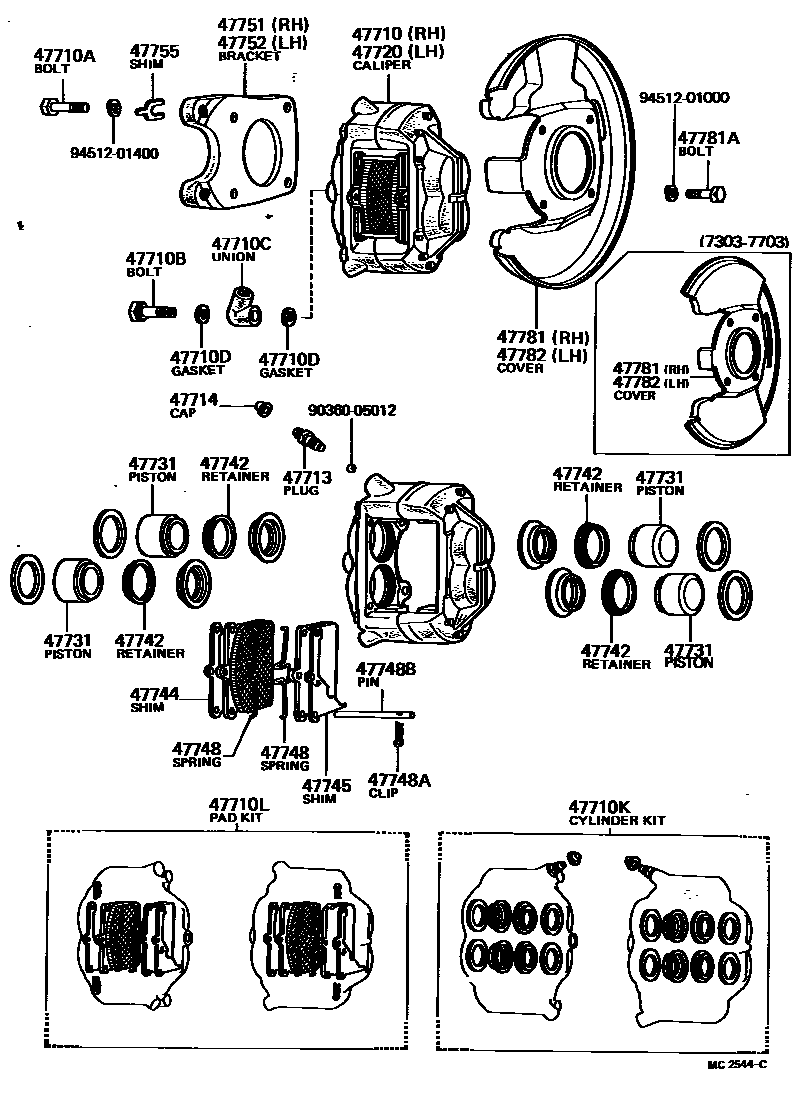

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-40010iVG21197303-197312

main47710-40011iVG21,30197312-197811

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12030×4iVG35197811-198209

main90101-14441×4iVG21,30197303-197811

47710BBOLT, UNION(FOR FRONT DISC BRAKE CALIPER)

main90401-10089×2iVG21,3#197303-198209

47710CUNION(FOR FRONT DISC BRAKE CALIPER)

main90405-10152×2iVG21,3#197303-198209

47710DGASKET(FOR FRONT DISC BRAKE CALIPER UNION)

main90430-10074×4iVG21,3#197303-198209

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-30050iVG35197811-198109

main04479-30060iVG35198109-198209

main04479-61011iVG21,30197303-197811

47710LPAD KIT, DISC BRAKE, FRONT

main04491-30080iVG35197811-198209

main04491-40010iVG21197303-197311

main04491-40011iVG21,30197311-197803

main04491-40012iVG30197803-197811

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12030×2iVG35197811-198209

main47547-20020×2iVG21,30197303-197811

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iVG21,3#197303-198209

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47720-40010iVG21197303-197312

main47720-40011iVG21,30197312-197811

47731PISTON, FRONT DISC BRAKE

main47731-30040×2iVG35197811-198209

main47731-61020×8iVG21,30197303-197811

47742RETAINER, FRONT DISC BRAKE CYLINDER BOOT

main47742-61010×8iVG21,30197303-197811

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-30110×2iVG35197811-198209

main47744-40010×2iVG21197303-197311

main47744-40011×2iVG21,30197311-197811

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-40010×2iVG21197303-197311

main47745-40011×2iVG21,30197311-197811

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-40010×4iVG21,30197303-197811

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-15021×4iVG21,30197303-197811

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90255-06007×4iVG21,30197303-197811

47751BRACKET, CALIPER SUPPORT, RH

main47751-40010iVG21,30197303-197811

main47751-40020iVG35197811-198209

47752BRACKET, CALIPER SUPPORT, LH

main47751-40020iVG35197811-198209

main47752-40010iVG21,30197303-197811

47755SHIM, CALIPER SUPPORT, NO.1

main90565-15013iVG21,30197303-197811

T=0.8

main90565-15014iVG21,30197303-197811

T=0.4

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-40010iVG21,30197303-197703

main47781-40011iVG30197703-197811

main47781-40030iVG35197811-198209

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10435×8iVG35197811-198209

main90101-10443×8iVG21,30197303-197811

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-40010iVG21,30197303-197703

main47782-40010iVG30197703-197811

main47782-40020iVG35197811-198209

9036005012

main90360-05012

9451201000

main94512-01000

9451201400

main94512-01400
