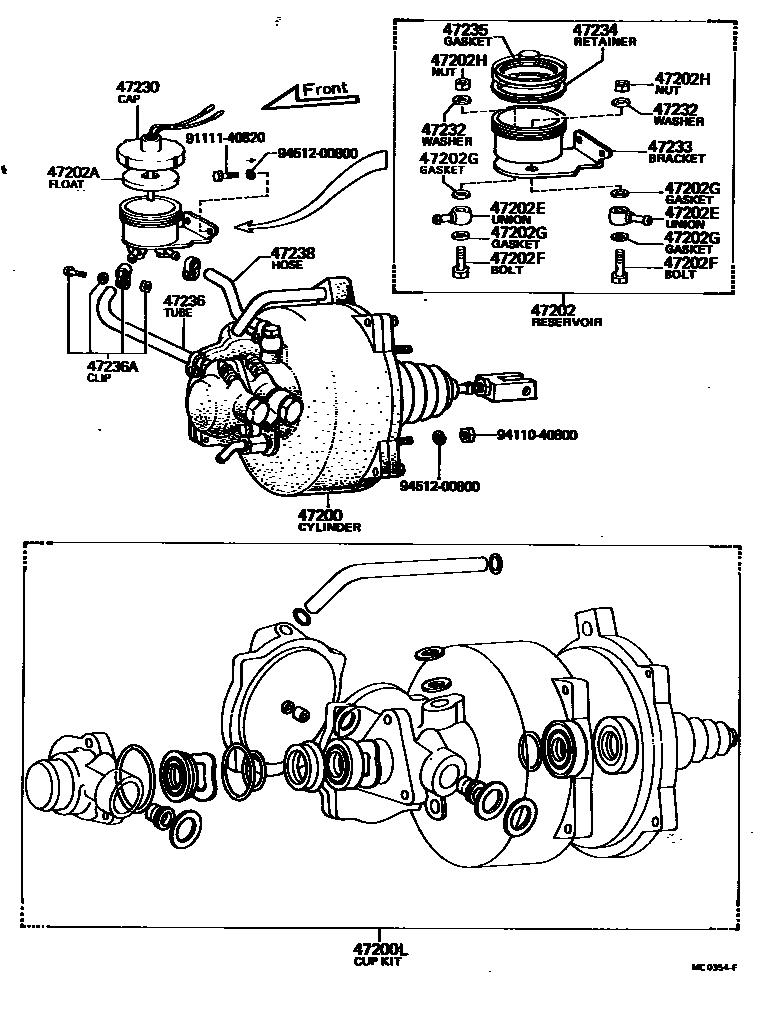

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

47200CYLINDER ASSY, BRAKE MASTER

main47200-40030iVG20196711-196805

sub47200-40031

main47200-40031iVG20196805-196903

47200LCUP KIT, BRAKE MASTER, W/BOOSTER

main04472-40020iVG20196711-196805

main04472-40021iVG20196805-196903

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-40010iVG20196711-196903

sub47202-40011

main47202-40012iVG20196903-196905

sub47202-40013

main47202-40013iVG20196905-197002

main47202-40014iVG20197002-197109

sub47202-40015

main47202-40015iVG20197109-197302

sub47202-40016

main47202-40016iVG21197303-197505

main47202-40020iVG21,3#197505-198209

47202AFLOAT, MASTER CYLINDER RESERVOIR

main83461-40010iVG20196711-196901

sub83461-40011

main83461-40011iVG20196901-197302

main83461-40012iVG21197303-197505

47202EUNION(FOR MASTER CYLINDER RESERVOIR SET)

main90405-08094iVG20196711-196903

main90407-08035iVG20196903-197002

47202FBOLT, UNION(FOR MASTER CYLINDER RESERVOIR SET)

main90401-14042iVG20196711-196905

47202GGASKET(FOR MASTER CYLINDER RESERVOIR SET)

main90430-14156iVG20196711-197002

47202HNUT, HEXAGON(FOR MASTER CYLINDER RESERVOIR SET)

main90170-14108iVG20196711-197002

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main83460-40011iVG20196711-197109

sub83460-40012

sub47234-40011

main83460-40012iVG2#197109-197505

main84460-40010iVG21,3#197505-198209

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-40010iVG20196711-197002

47233BRACKET, RESERVOIR

main47233-40010iVG20196711-196903

sub47233-40011

main47233-40012iVG20196903-196905

main47233-40013iVG20196905-197002

main47233-40014iVG2#197002-197505

main47233-40020iVG21,3#197505-198209

47234RETAINER, RESERVOIR GASKET

main47234-40010iVG20196811-197109

main47234-40011iVG2#197109-197505

47235GASKET, RESERVOIR

main47235-40010iVG2#,3#196811-198209

main90430-76155iVG20196711-196811

sub47235-40010

sub47234-40010

47236TUBE, RESERVOIR BRAKE

main90445-12442iVG20196903-197002

main90445-16547iVG2#197002-197505

main90445-17896iVG21,3#197505-198209

main90446-10173iVG20196711-196903

sub90445-13003

47236ACLIP(FOR RESERVOIR TUBE)

main90460-10054iVG20196711-196903

main90460-16069iVG2#197002-197505

main90467-11012iVG20196903-197002

sub90467-11085

main90467-16141iVG21,3#197505-198209

47238HOSE, MASTER CYLINDER BRIDGE

main90445-12441iVG20196903-197002

main90445-16546iVG2#197002-197505

main90445-17012iVG21,3#197505-198209

main90446-10174iVG20196711-196903

9111140820

main91111-40820

9411040800

main94110-40800

9451200800

main94512-00800
