DISC WHEEL & WHEEL CAP

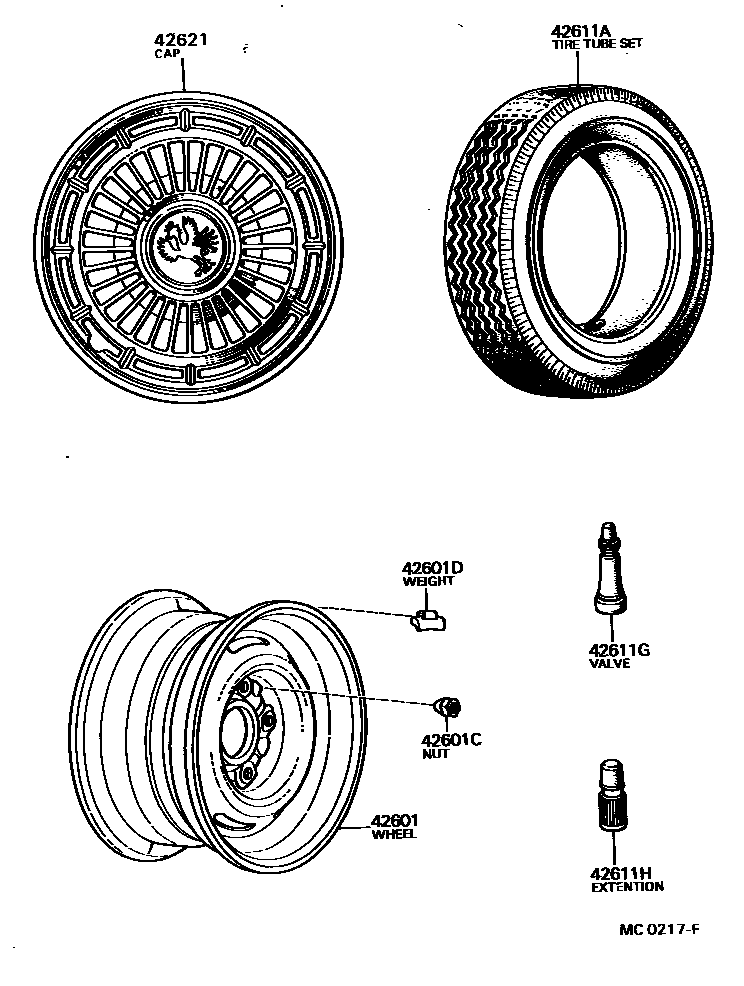

Parts diagram

42601WHEEL, DISC

main42611-40010×4i196711-197003

5J-14

main42611-40011×4i197003-197012

5J-14

main42611-40012×4i197012-197104

5J-14

main42611-40013×4i197104-197302

5J-14

main42611-40014×4i197303-197609

5J-14,W/TUBE

main42611-40020×4i197308-197609

5J-14,TUBELESS

main42611-40030×4i197701-198209

42601CNUT, HUB (FOR AXLE)

main90942-01007×20i196711-198209

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03010i196711-197302

40G

main90942-03011i196711-197302

60G

main90942-03012i196711-197302

80G

main90942-03017i196711-198209

main90942-03020i196711-198209

main90942-03022i197303-198209

main90942-03025i197303-198209

main90942-03027i197303-198209

main90942-03029i197303-198209

main90942-03031i197303-198209

main90942-03039i196711-197302

50G

main90942-03040i196711-197302

70G

main90942-03041i196711-198209

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-40010×4i197701-198209

F78-14-4,TUBELESS

main42652-40020×4i197811-198209

195 SR 14

main98024-73143×4i196711-197811

7.35-14-6,SNOW TIRE

main98031-73143×4i197303-197811

7.35-14-6,W/TUBE,BLACK

main98033-73143×4i196711-197811

7.35-14-6,W/TUBE

main98521-73143×4i197303-197811

7.35-14-6,TUBELESS,BLACK

main98523-73143×4i197308-197811

7.35-14-6,TUBELESS

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4i197308-198209

42611HEXTENSION, VALVE

main90942-05006×4i196711-197811

42621CAP, WHEEL

main42621-40020×4i196711-197302

main42621-40021×4i197303-197811

main42621-40030×4i197811-198209

7 parts on this diagram · 1 diagram in section
