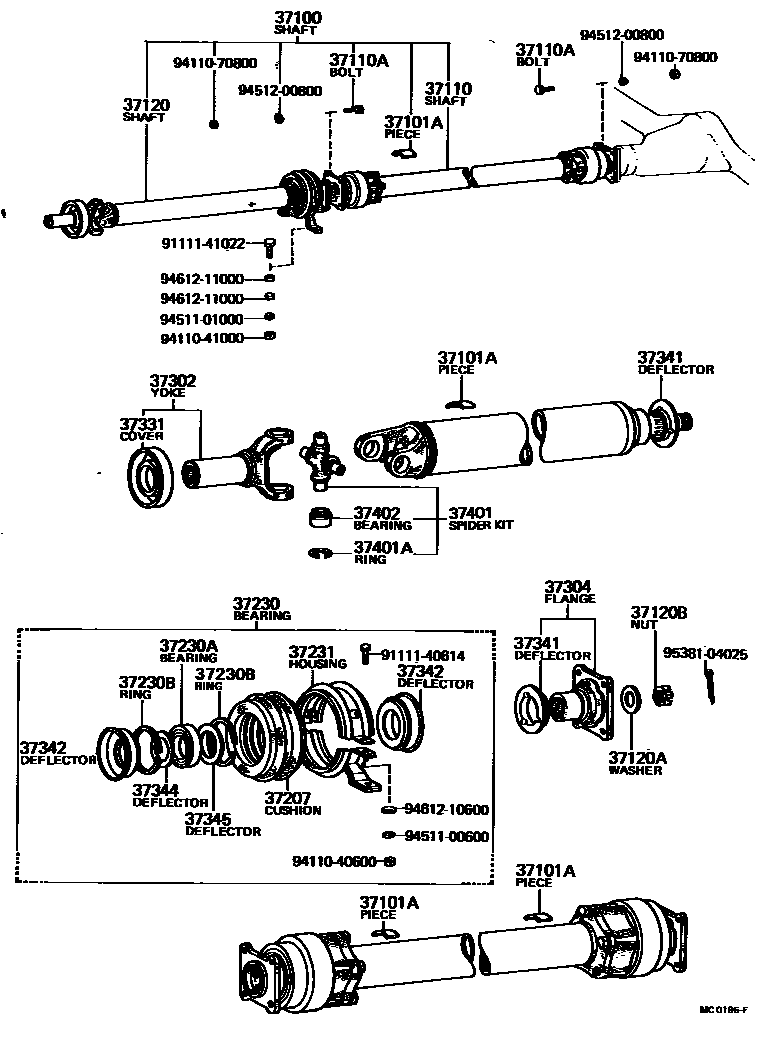

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
5G
15G
25G
2.5G
7.5G
12.5G
17.5G
22.5G
27.5G
2G,T=1.2
6G,T=1.2
10G,T=1.2
4G,T=1.2
8G,T=1.2
12G,T=1.2
14G,T=1.2
16G,T=1.2
18G,T=1.2
37110SHAFT ASSY, PROPELLER
L=903,OD=60
37110ABOLT (FOR PROPELLER SHAFT)
*8-1.25PX25-12
*8-1.25PX25-12
*9-1PX25-12
37120SHAFT ASSY, PROPELLER INTERMEDIATE
L=636,OD=65
L=636,OD=65
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37207CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230ABEARING, NO.1 (FOR CENTER SUPPORT)
37230BRING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING)
37231HOUSING, CENTER SUPPORT BEARING
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
37331COVER, SLIDING SHAFT DUST
37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37344DEFLECTOR, PROPELLER SHAFT DUST, NO.3
37345DEFLECTOR, PROPELLER SHAFT DUST, NO.4
37401SPIDER KIT, UNIVERSAL JOINT
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=1.40
T=1.45
T=1.50
T=1.55
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
OD=28.515-.528
OD=28.515-.528
OD=28.536-.549
OD=28.536-.549
9111140614
main91111-40614
9111141022
main91111-41022
9411040600
main94110-40600
9411041000
main94110-41000
9411070800
main94110-70800
9451100600
main94511-00600
9451101000
main94511-01000
9451200800
main94512-00800
9461210600
main94612-10600
9461211000
main94612-11000
9538104025
main95381-04025
33 parts on this diagram · 2 diagrams in section
