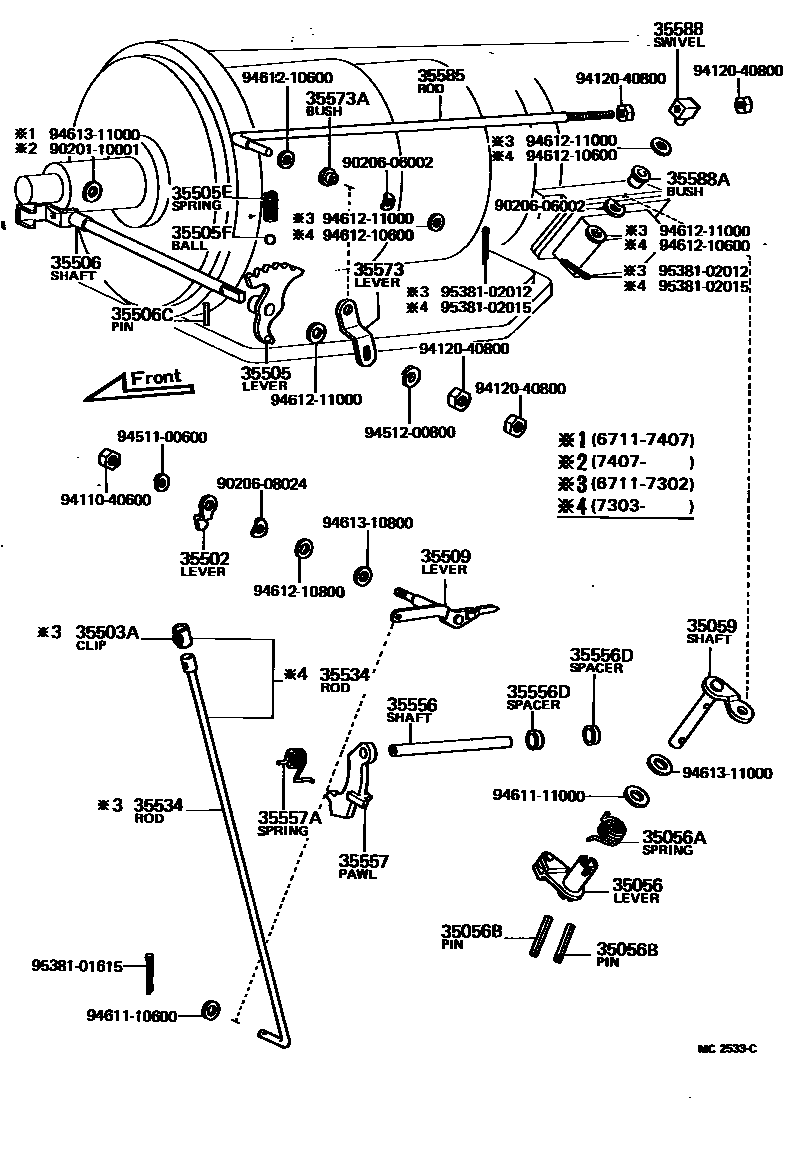

THROTTLE LINK & VALVE LEVER (ATM)
35056LEVER SUB-ASSY, PARKING LOCK W/ROLLER
35056ASPRING, PARKING LOCK LEVER
35056BPIN, PARKING LOCK LEVER
35059SHAFT SUB-ASSY, PARKING LOCK
35502LEVER SUB-ASSY, THROTTLE VALVE
35503ACLIP(FOR THROTTLE LINK CONNECTING ROD)
35505ESPRING, COMPRESSION (FOR MANUAL VALVE LEVER)
35505FBALL (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
35509LEVER SUB-ASSY, THROTTLE VALVE, OUTER
35534ROD, THROTTLE LINK CONNECTING, 1ST
35556DSPACER (FOR PARKING LOCK PAWL SHAFT)
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35573LEVER, TRANSMISSION CONTROL SHAFT, LH
35573ABUSH (FOR TRANSMISSION CONTROL SHAFT LEVER)
35588SWIVEL, PARKING LOCK ROD
35588ABUSH (FOR PARKING LOCK ROD SWIVEL)
9020110001
main90201-10001
9020606002
main90206-06002
9020608024
main90206-08024
9411040600
main94110-40600
9412040800
main94120-40800
9451100600
main94511-00600
9451200800
main94512-00800
9461110600
main94611-10600
9461111000
main94611-11000
9461210600
main94612-10600
9461210800
main94612-10800
9461211000
main94612-11000
9461310800
main94613-10800
9461311000
main94613-11000
9538101615
main95381-01615
9538102012
main95381-02012
9538102015
main95381-02015
39 parts on this diagram · 3 diagrams in section
