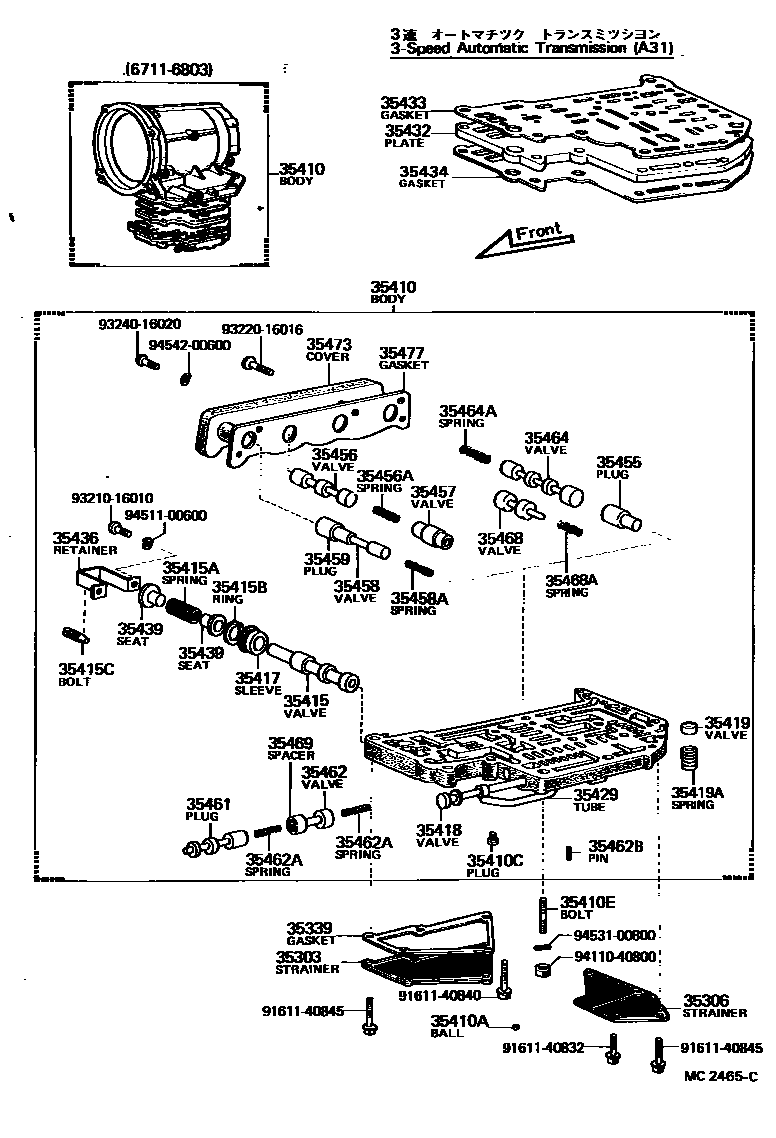

VALVE BODY & OIL STRAINER (ATM)
35306STRAINER SUB-ASSY, REAR OIL
35339GASKET, OIL STRAINER
35410BODY ASSY, TRANSMISSION VALVE
35410ABALL (FOR REVERSE SHIFT RESTRICT)
35410CPLUG (FOR TRANSMISSION VALVE BODY)
35410EBOLT, STUD (FOR TRANSMISSION VALVE BODY)
35415VALVE, PRESSURE REGULATOR
35415ASPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)
35415CBOLT, SET (FOR VALVE SPRING)
35417SLEEVE, PRESSURE REGULATOR VALVE
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35429TUBE, LINE PRESSURE
35436RETAINER, PRESSURE REGULATOR SPRING
35439SEAT, PRESSURE REGULATOR VALVE SPRING
35455PLUG, 1-2 SHIFT VALVE LOW
35456VALVE, 2-3 SHIFT
35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
WD=0.6,CW=8.25
WD=0.7,CW=11.5
35457VALVE, THROTTLE MODULATOR
35458VALVE, THROTTLE RELAY
35458ASPRING, COMPRESSION (FOR THROTTLE RELAY VALVE)
35459PLUG, THROTTLE RELAY
35462VALVE, THROTTLE
35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)
WD=1.2,CW=13,W/YELLOW PAINT
ND=1.2,CW=11,W/O PAINT
WD=1.2,CW=11,W/YELLOW PAINT
35462BPIN, SLOTTED SPRING (FOR THROTTLE VALVE SET)
L=22
35468VALVE, ORIFICE CONTROL
35468ASPRING, COMPRESSION (FOR ORIFICE CONTROL VALVE SPRING)
35469SPACER (FOR VALVE BODY DOWN SHIFT PLUG)
35473COVER, TRANSMISSION VALVE BODY
35477GASKET, VALVE BODY COVER
9161140832
main91611-40832
9161140840
main91611-40840
9161140845
main91611-40845
9321016010
main93210-16010
9322016016
main93220-16016
9324016020
main93240-16020
9411040800
main94110-40800
9451100600
main94511-00600
9453100800
main94531-00800
9454200600
main94542-00600
49 parts on this diagram · 4 diagrams in section
