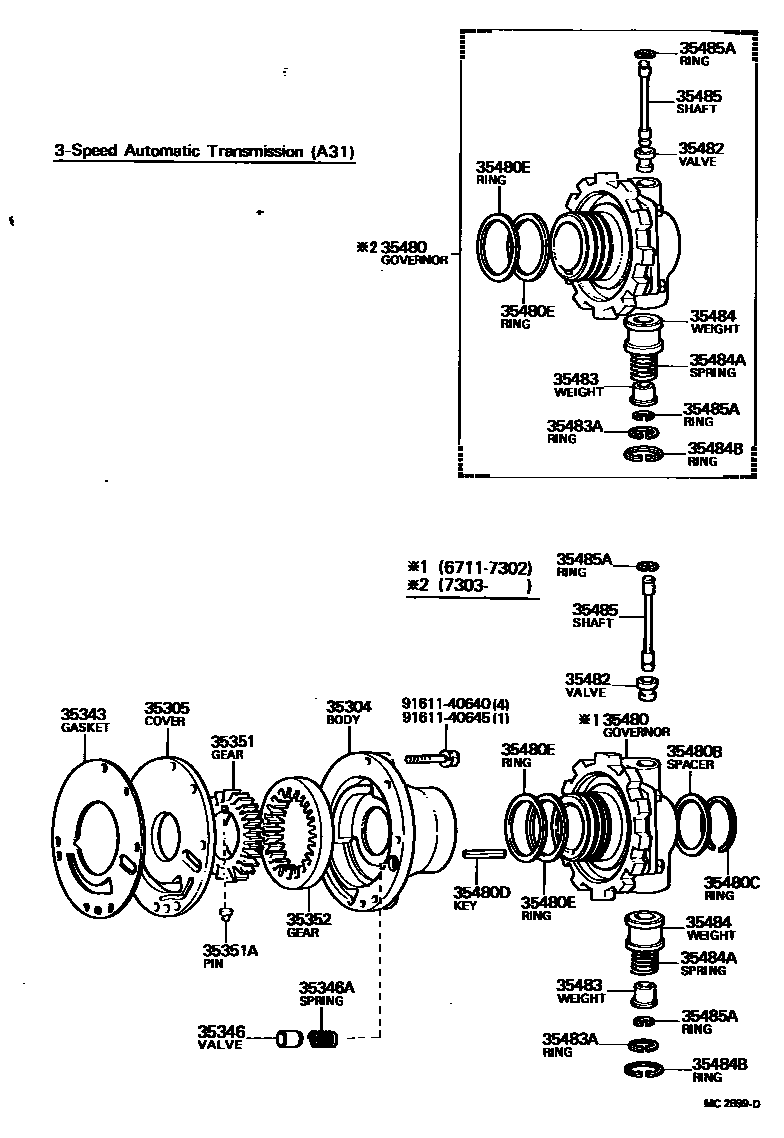

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0002 1

35304BODY SUB-ASSY, REAR OIL PUMP

main35304-30010iVG20..ATM196711-196802

main35304-30011iVG20..ATM196802-196809

main35304-30012iVG20..ATM196809-196811

main35304-30013iVG20..ATM196811-197007

main35304-30014iVG2#,3#..ATM197007-198005

35305COVER SUB-ASSY, REAR OIL PUMP

main35004-30010iVG20..ATM196711-196809

main35305-30011iVG2#,3#..ATM196809-198005

35343GASKET, REAR OIL PUMP COVER

main35343-30021iVG2#,3#..ATM196711-198005

35346VALVE, PRIMING(FOR REAR OIL PUMP)

main35346-30010iVG20..ATM196811-197302

main35346-30011iVG21,3#..ATM197303-198005

35346ASPRING, COMPRESSION(FOR PRIMING VALVE)

main90501-08478iVG2#,3#..ATM196811-198005

35351GEAR, REAR OIL PUMP DRIVE

main35351-30010iVG20..ATM196711-196808

main35351-30011iVG2#,3#..ATM196808-198005

35351APIN, STRAIGHT (FOR REAR OIL PUMP DRIVE GEAR)

main90241-05029iVG2#,3#..ATM196711-198005

35352GEAR, REAR OIL PUMP DRIVEN

main35352-31010iVG2#,3#..ATM196711-198005

35480GOVERNOR

main35480-30020iVG20..ATM196711-197302

main35480-30060iVG35198005-198209

main35480-39015iVG21,3#..ATM197303-198005

35480BSPACER (FOR GOVERNOR BODY SPACER OR PARKING LOCK GEAR)

main90560-30223iVG2#,3#..ATM196711-198005

35480CRING, SHAFT SNAP (FOR OUTPUT)

main90520-28009iVG2#,3#..ATM196711-198005

35480DKEY, SLIDING (FOR GOVERNOR BODY SUPPORT)

main90281-05012iVG2#,3#..ATM196711-198005

35480ERING (FOR REAR OIL PUMP GOVERNOR)

main35323-31011×2iVG2#,3#..ATM196711-198005

35482VALVE, GOVERNOR

main35482-22010iVG35198005-198209

main35482-30010iVG2#,3#..ATM196711-198005

35483WEIGHT, GOVERNOR, INNER

main35483-30010iVG20..ATM196711-196908

main35483-40010iVG2#,3#..ATM196908-198005

35483ARING, HOLE SNAP (FOR GOVERNOR INNER WEIGHT)

main90521-21044iVG20..ATM196711-197103

main96151-01900iVG2#,3#..ATM197103-198005

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iVG35198005-198209

main35484-31010iVG2#,3#..ATM196711-198005

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iVG35198005-198209

main90501-12338iVG2#..ATM196711-197701

main90501-12508iVG3#197701-198005

35484BRING, HOLE SNAP (FOR GOVERNOR OUTER WEIGHT)

main90521-27065iVG20..ATM196711-197103

main96151-02500iVG2#,3#..ATM197103-198005

35485SHAFT, GOVERNOR VALVE

main35485-22010iVG35198005-198209

main35485-31012iVG2#,3#..ATM196711-198005

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-03007×2iVG2#,3#..ATM196711-198005

main90523-05020iVG35198005-198209

9161140640

main91611-40640

9161140645

main91611-40645

23 parts on this diagram · 2 diagrams in section
