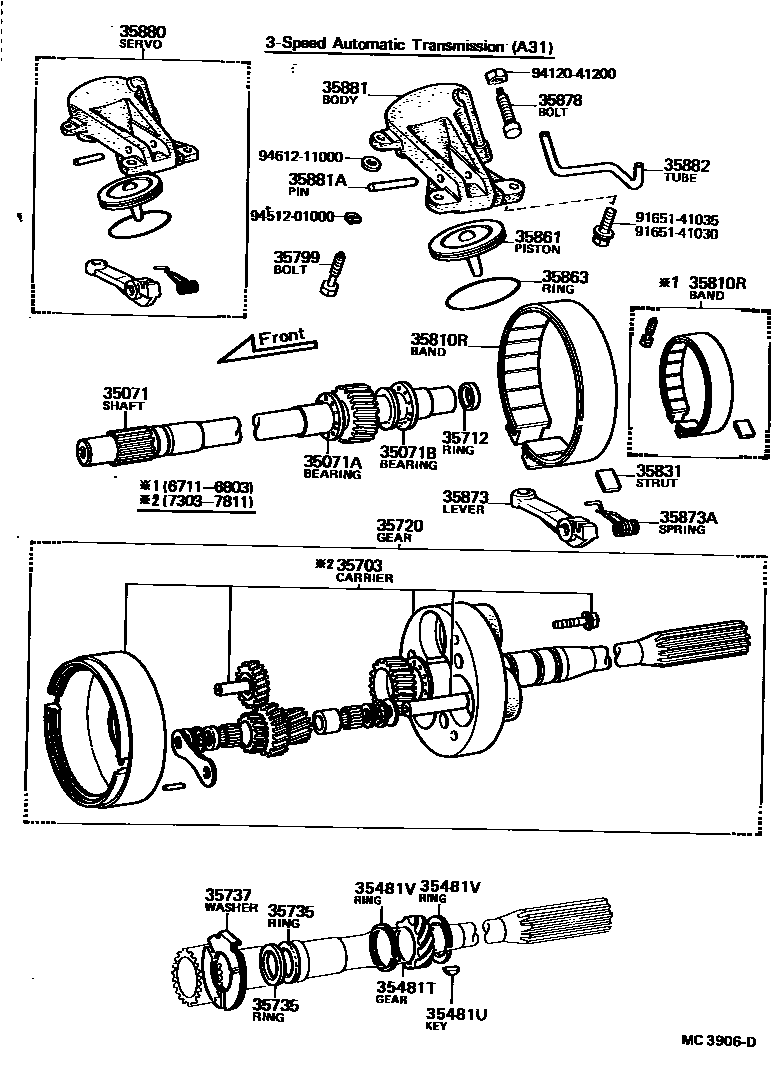

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1 0002 1

35071SHAFT SUB-ASSY, PLANETARY INTERMEDIATE

main35071-30010iVG20..ATM196711-197003

sub35071-40010

main35071-40010iVG2#,3#..ATM197003-198005

main35708-40010iVG35198005-198209

35071ABEARING, THRUST(FOR INTERMEDIATE SHAFT FRONT)

main90374-20002iVG21,3#..ATM197303-198005

main90374-20007iVG20..ATM196711-197302

35071BBEARING, THRUST(FOR INTERMEDIATE SHAFT REAR)

main90374-20004iVG20..ATM196711-197302

sub90374-20007

main90374-20015iVG21,3#..ATM197303-198005

35481TGEAR, SPEEDMETER DRIVE (ATM)

main33481-20030iVG2#..ATM196711-197701

N=6

main33481-20100iVG35198005-198209

N=6

main33481-61010iVG3#197701-198005

N=6

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90280-03005iVG2#,3#..ATM196711-198005

main90360-06004iVG35198005-198209

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iVG2#,3#..ATM196711-198209

35703CARRIER SUB-ASSY, PLANETARY

main35703-49015iVG21,30..ATM197303-197811

35712RING, PLANETARY INTERMEDIATE SHAFT OIL SEAL

main35712-30010iVG2#,3#..ATM196711-198005

35720GEAR ASSY, FRONT PLANETARY

main35720-40012iVG20..ATM196711-197002

main35720-40013iVG20..ATM197002-197302

main35720-40020iVG21,30..ATM197303-197702

main35720-40040iVG30197702-197811

sub35720-40042

main35720-40041iVG35197811-197910

sub35720-40042

main35720-40042iVG35197910-198005

main35720-40050iVG35198005-198209

35735RING, PLANETARY OUTPUT SNAP

main35735-22010iVG35198005-198209

main35735-30010iVG2#,3#..ATM196711-198005

35737WASHER, PLANETARY CARRIER THRUST

main35737-30010iVG2#,3#..ATM196711-198005

main35737-30020iVG35198005-198209

35799BOLT, CENTER SUPPORT, NO.2

main35799-30010iVG2#,3#..ATM196711-198005

35810RBAND ASSY, TRANSMISSION BRAKE (FOR REAR)

main35008-30011iVG20..ATM196711-197001

main35808-40010iVG20..ATM197001-197302

sub35808-30010

main35808-40020iVG21,30..ATM197303-197709

sub35808-40021

main35808-40021iVG30197709-197811

sub35808-40030

main35808-40022iVG35197811-198005

35831STRUT, BRAKE BAND APPLY

main35831-30030iVG2#,3#..ATM196711-198005

35861PISTON, REVERSE

main35861-30012iVG2#,3#..ATM196711-198005

35863RING, REVERSE PISTON OIL SEAL, OUTER

main90301-59112iVG20..ATM196711-197302

sub90301-59124

main90301-59124iVG21,3#..ATM197303-198005

35873LEVER, REVERSE BRAKE BAND APPLY

main35873-40011iVG20..ATM196711-196803

main35873-40020iVG20..ATM196803-197302

sub35873-40030

main35873-40030iVG21,3#..ATM197303-198005

35873ASPRING, TORSION (FOR BRAKE BAND)

main90508-38160iVG2#,3#..ATM196711-198005

35878BOLT, REAR BRAKE BAND ANCHOR

main35878-30011iVG20..ATM196711-196804

main35878-30012iVG2#,3#..ATM196804-198005

35880SERVO ASSY, REAR

main35880-40011iVG20..ATM196711-197302

sub35881-40020

sub35861-30012

sub35873-40020

sub90250-10138

sub90301-59124

sub90508-38160

main35880-40020iVG21,3#..ATM197303-198005

35881BODY, REAR SERVO

main35881-40011iVG20..ATM196711-196801

sub35881-40012

sub35861-30012

main35881-40012iVG20..ATM196801-196803

main35881-40020iVG20..ATM196803-197302

main35881-40030iVG21,3#..ATM197303-198005

35881APIN, STRAIGHT (FOR REAR SERVO BODY)

main90250-10138iVG2#,3#..ATM196711-198005

sub90245-10042

35882TUBE, REAR SERVO APPLY

main35882-30010iVG2#,3#..ATM196711-198005

9165141030

main91651-41030

9165141035

main91651-41035

9412041200

main94120-41200

9451201000

main94512-01000

9461211000

main94612-11000

28 parts on this diagram · 2 diagrams in section
