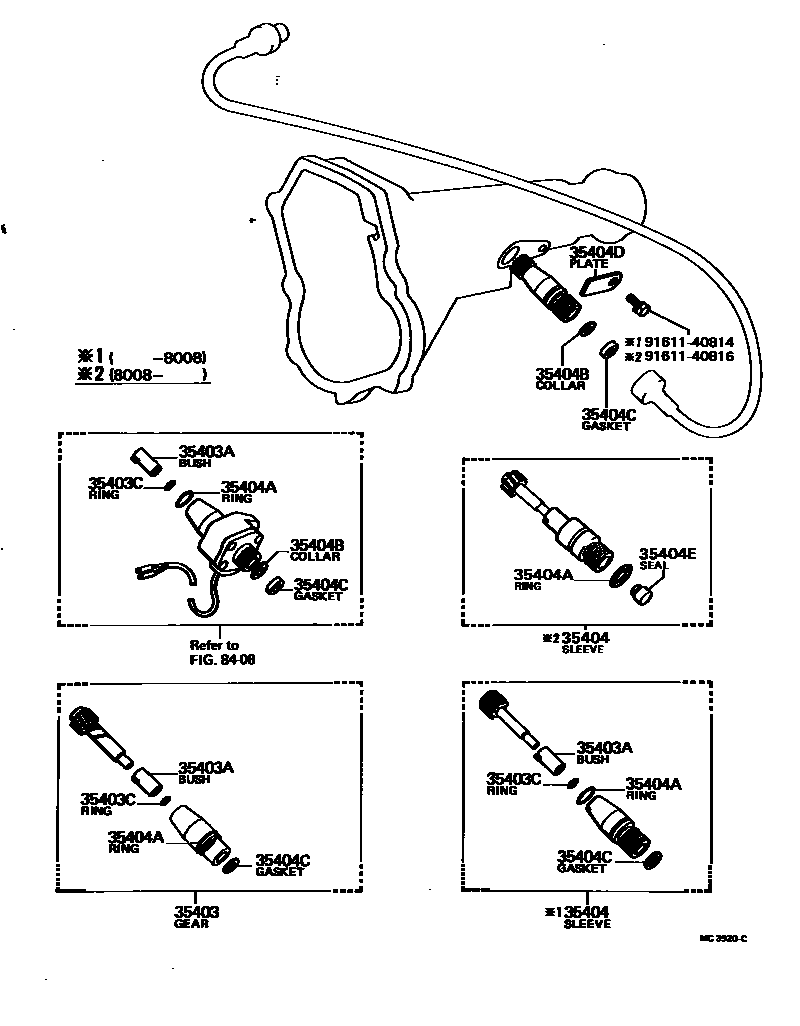

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-49015iVG21..ATM197303-197405

N=18,W/AUTO DRIVE

main33403-69016iVG3#197701-198209

N=17

main33403-69026iVG20..C196711-197302

N=19

main33403-69035iVG20..ATM196711-196901

N=19,W/AUTO DRIVE

main33403-69036iVG20..ATM196901-197302

N=19,W/AUTO DRIVE

main33403-69065iVG21..C197303-197405

N=18

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09008iVG20..ATM196711-196901

main90386-09078iVG2#,3#..ATM196901-198008

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iVG2#,3#..ATM196711-198008

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iVG35198008-198209

main33404-39016iVG21,3#197405-198008

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iVG2#,3#..ATM196711-198209

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069iVG2#..C196711-197405

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017iVG2#..C196711-197405

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30010iVG20..C196711-196912

main33485-30020iVG35198008-198209

main33485-40010iVG20..C196912-197302

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iVG35198008-198209

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9161140814

main91611-40814

9161140816

main91611-40816

12 parts on this diagram · 1 diagram in section
