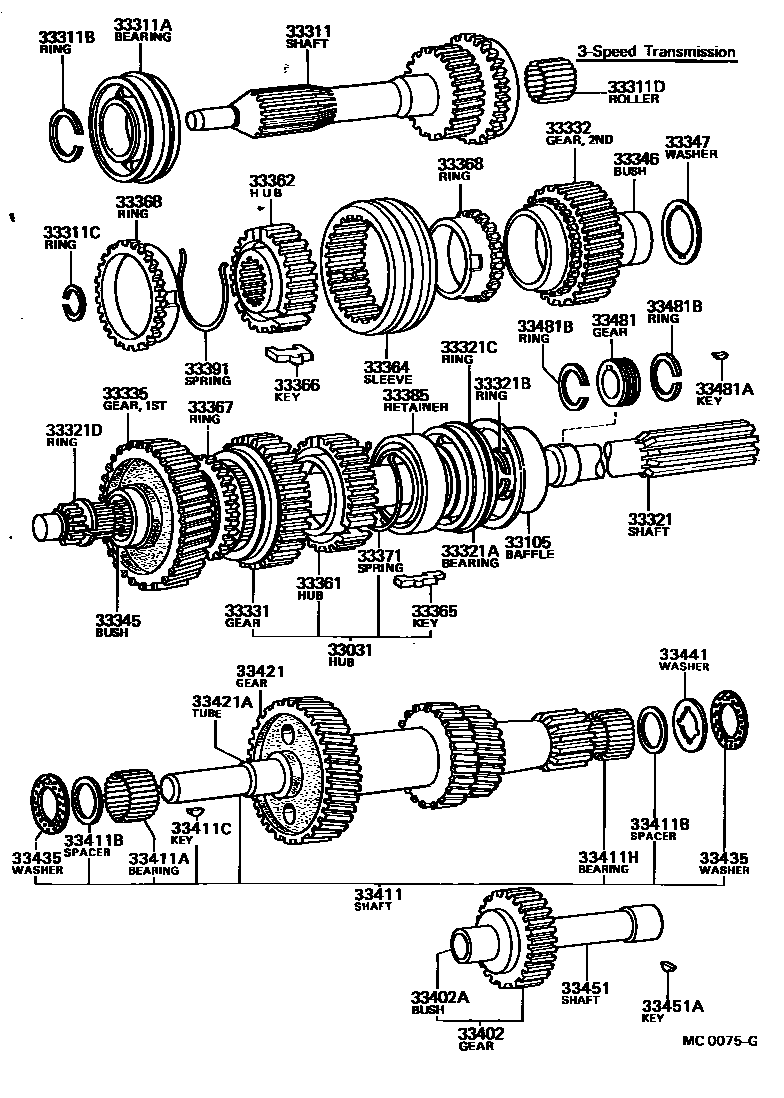

TRANSMISSION GEAR (MTM)
33031HUB ASSY, SYNCHRONIZER, NO.1
33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL
33311SHAFT, INPUT
N=18
N=19
N=18
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33321SHAFT, OUTPUT
L=34.05-34.10
L=34.10-34.15
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.25-2.35
T=2.35-2.45
T=2.25-2.30
T=2.30-2.35
T=2.35-2.40
T=2.40-2.45
T=2.45-2.50
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.40-1.50
T=1.60-1.70
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.89-1.94
T=2.01-2.06
T=2.13-2.18
T=2.25-2.30
T=2.37-2.42
T=2.70-2.75
T=2.65-2.70
T=2.75-2.80
33331GEAR, REVERSE
N=36
N=31
N=34
N=34
33332GEAR, 2ND
L=35.00-35.05
L=32.00-32.05
L=35.00-35.05
L=35.05-35.10
L=31.95-32.0
33335GEAR, 1ST
L=32.00-32.05
L=33.95-34.00
L=33.95-34.00
L=31.95-32.00
L=32.00-32.05
33345BUSH, 1ST GEAR
L=32.10-32.15
33346BUSH, 2ND GEAR
L=35.15-35.20
L=32.10-32.15
33347WASHER, 1ST & 2ND GEAR THRUST
33362HUB, TRANSMISSION CLUTCH, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33385RETAINER, SHIFTING KEY
33402GEAR SUB-ASSY, REVERSE IDLER
N=19
N=29
33411BSPACER(FOR COUNTER GEAR BEARING)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33421GEAR, COUNTER
N=31,27,22,14,15
N=31,27,22,14,15
N=31,27,22,14,15
N=30,24,16,12
N=30,25,16,16
33421ATUBE(FOR COUNTER GEAR)
33435WASHER, COUNTER GEAR CASE SIDE THRUST
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
T=1.15-1.19
T=1.20-1.24
T=1.25-1.29
T=1.30-1.34
T=1.35-1.39
T=1.40-1.44
T=1.45-1.49
T=1.50-1.54
T=1.55-1.59
T=1.60-1.64
T=1.65-1.69
T=1.70-1.74
T=1.75-1.79
T=1.80-1.84
T=1.85-1.89
T=1.90-1.94
T=1.25-1.29
T=1.30-1.34
T=1.35-1.39
T=1.40-1.44
T=1.45-1.49
T=1.50-1.54
T=1.55-1.59
T=1.60-1.64
T=1.65-1.69
T=1.70-1.74
T=1.75-1.79
T=1.80-1.84
T=1.85-1.89
T=1.20-1.24
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6
N=6
N=6
N=6
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
OD=6
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
44 parts on this diagram · 5 diagrams in section
